Pentair 3HP IntelliFlo3 VSF Variable Speed Flow Pump with IO Relay Board & Touchscreen 011078
Trade Grade Item
Why shop with Vita Filters?
- Authorized Pentair Dealer
- Free Shipping • No Minimum
- 30-Day Returns
- Backed By Manufacturer's Warranty
- 100% Satisfaction Guaranteed!
- On-Staff Experts • Contact us
Description:
Variable Speed Pump of the Year designated by the Pool Nation Awards!
ENERGY SAVINGS AND SUPERIOR PERFORMANCE, ALL IN A GAME-CHANGING PUMP.
The IntelliFlo3 Variable Speed and Flow Pool Pump set a new bar for performance with built-in sensorless flow control for effortless optimum flow and aids in keeping the pool crystal clear and inviting, no matter what it requires.
- Proprietary flow technology maintains the pool’s optimum flow.
- Up to 90%* energy savings. Slower speed and regulated flow save energy.
- New motor, drive, and hydraulics. Department of Energy (DOE) compliant.

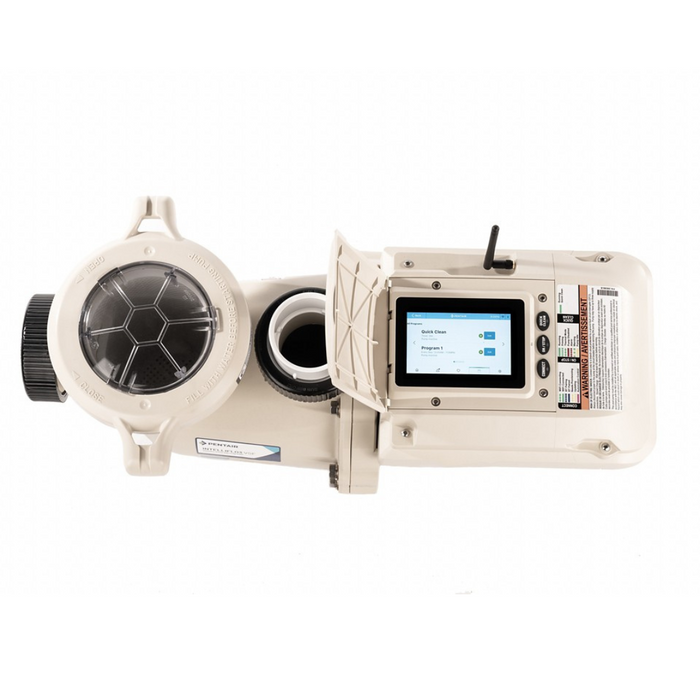

- Easy control via the Pentair Home app or optional touchscreen.
- WEF 7.1 THP 3.0

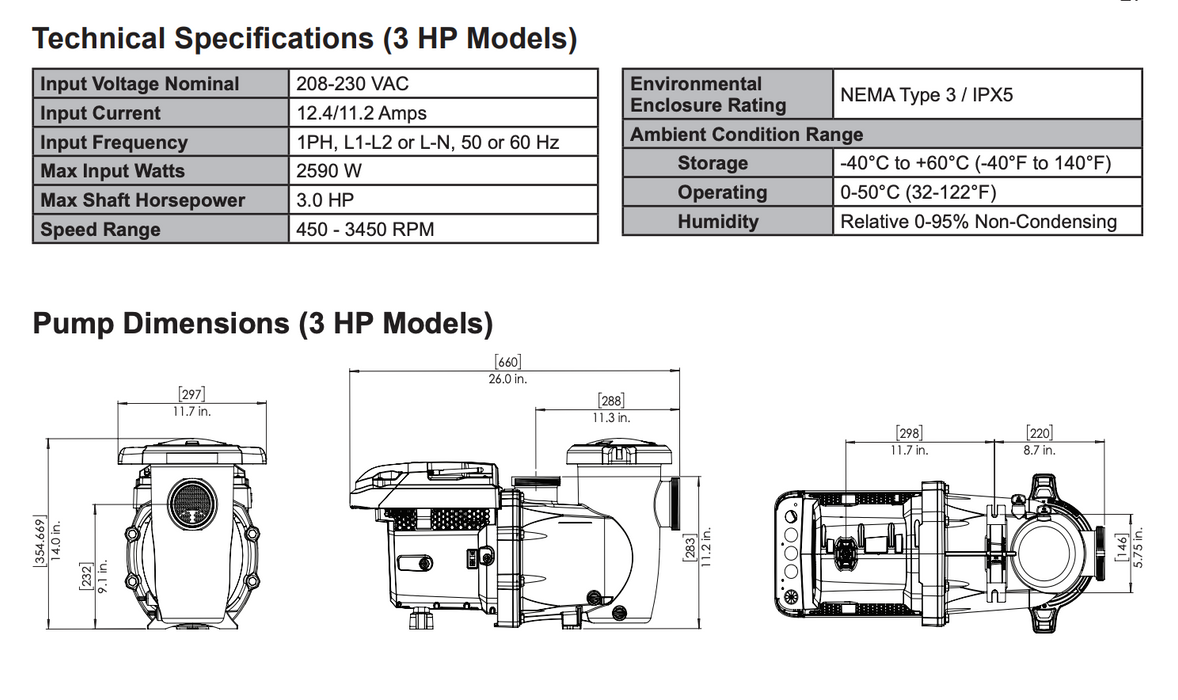

Pentair 011078 IntelliFlo3 VSF 3.0HP w/ Touch Screen HMI & I/O Board Specifications:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 55 pounds
- Flow Rate Max: 140 gal/min
- Flow Rate Min: 20 gal/min
- Max Working Pressure: 30 pounds per square inch
- Thrust HP: 3
- Port Size 1: 2 inch
- Weighted Energy Factor (WEF): 7.1
- UPC Code: 788379888336
- Part Numbers: 011078 IntelliFlo3 VSF 3.0HP w/ Touch Screen HMI & I/O board
Support Documents:
- Brochure IntelliFlo3 VSF Pool Pump
- Brochure Pentair Pump Family
- Pool Product Warranty Information
- Pool & Spa Calculators
- Variable Speed Pool Pumps Comparison
Available Models:
| ITEM # | DESCRIPTION | THP | WEF | MAX INPUT VOLTAGE | FREQUENCY | FULL LOAD AMPS | PORT SIZE (NPT) | WEIGHT (LBS) |
| 11075 | IntelliFlo3 VSF 3.0HP | 3 | 7.1 | 208-230 | 50/60 | 12.4-11.2 | 2" x 2" or 2.5" x 2.5" or 3" x 3" | 55 |
| 11076 | IntelliFlo3 VSF 3.0HP with I/O board | 3 | 7.1 | 208-230 | 50/60 | 12.4-11.2 | 2" x 2" or 2.5" x 2.5" or 3" x 3" | 55 |
| 11077 | IntelliFlo3 VSF 3.0HP with touchscreen | 3 | 7.1 | 208-230 | 50/60 | 12.4-11.2 | 2" x 2" or 2.5" x 2.5" or 3" x 3" | 55 |
| 11078 | IntelliFlo3 VSF 3.0HP with touchscreen and I/O board | 3 | 7.1 | 208-230 | 50/60 | 12.4-11.2 | 2" x 2" or 2.5" x 2.5" or 3" x 3" | 55 |
| 11065 | IntelliFlo3 VSF 1.5HP | 1.5 | 9.4 | 115/208-230 | 50/60 | 12/6.4-5.9 | 1.5" x 1.5" or 2" x 2" | 48 |
| 11066 | IntelliFlo3 VSF 1.5HP with I/O board | 1.5 | 9.4 | 115/208-230 | 50/60 | 12/6.4-5.9 | 1.5" x 1.5" or 2" x 2" | 48 |
| 11067 | IntelliFlo3 VSF 1.5HP with touchscreen | 1.5 | 9.4 | 115/208-230 | 50/60 | 12/6.4-5.9 | 1.5" x 1.5" or 2" x 2" | 48 |
| 11068 | IntelliFlo3 VSF 1.5HP with touchscreen and I/O board | 1.5 | 9.4 | 115/208-230 | 50/60 | 12/6.4-5.9 | 1.5" x 1.5" or 2" x 2" | 48 |
| 356159Z | IntelliFlo3 VSF Touchscreen Universal Add On | 3 & 1.5 | ||||||
| 356365Z | IntelliFlo3 VSF optional universal relay board kit | 3 & 1.5 |
FREE SHIPPING: Usually ships in 1-2 business days.
Disclaimer: Professional installation is required (not included). Proof of installation by a professional technician is required to validate the factory warranty.
Please Note: Images are for representation.
