Description:
FOUR HARD-WORKING CARTRIDGES KEEP POOL WATER CLEAR.

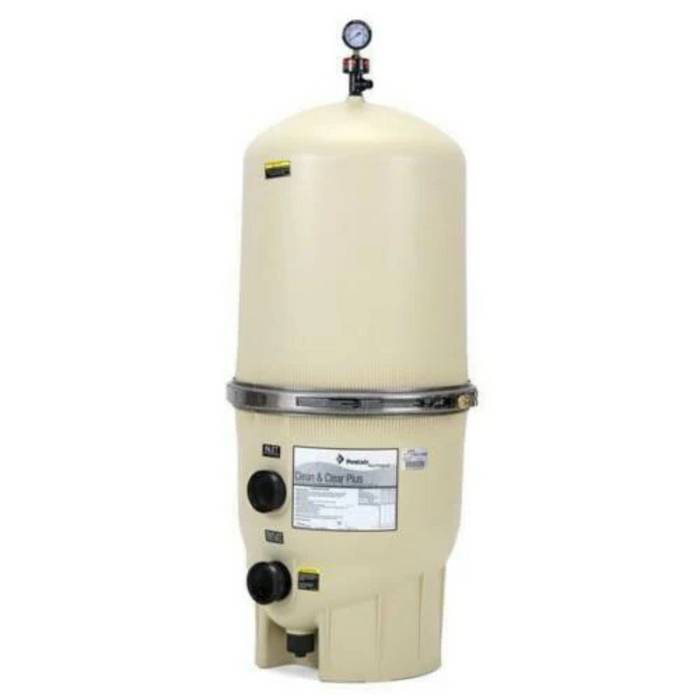

Clean & Clear Plus Filters have a corrosion-resistant injection molded filter tank featuring strength and reliability. The cartridge assembly uses four easy-to-clean, non-woven polyester cartridges. Each filter is supplied with a bulkhead union set for easy installation.
- Certified to NSF/ANSI Standard 50
- Large filter area for increased dirt capacity
- 1-1/2 in., 100% drain clean-out port
- Continuous High Flow™ Internal Air Relief*
- Base and plumbing kits available
- Injection molded tank
- Balanced hydraulic flow

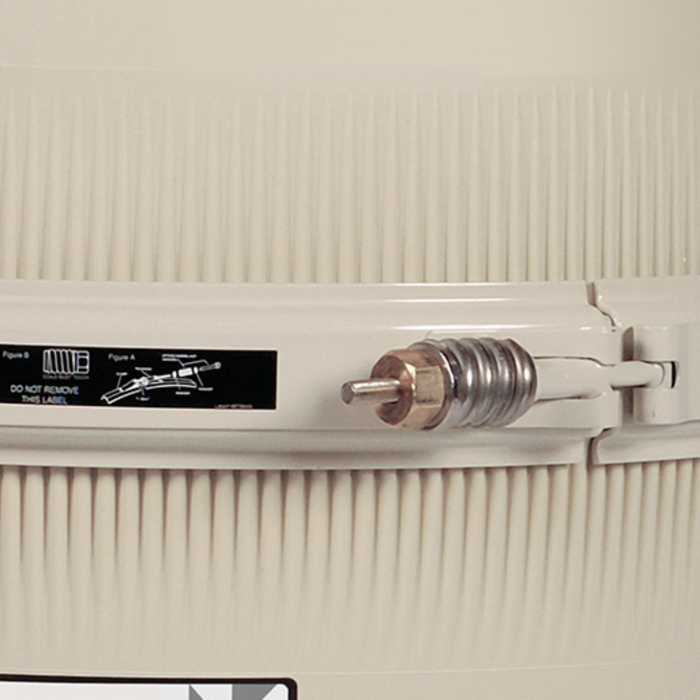

- Tension Control™ Clamp
- 100% factory tested
- Black bulkhead unions
- High Flow manual air relief valve
- Includes filter system with four (4) cartridges
SPECIFICATIONS:
- Brand: Pentair
- Application: Pool, Spa
- Weight: 83 pounds
- Green or Energy-Efficient Product: True
- Standards Approvals: ANSI Standard 50 Certified
- Cartridges Required: 4 (included)
- Design Flow Rate: 150 gal/min
- Filtration Area: 520 square feet
- Side Clearance: 6 inch
- Turnover 10hrs: 90000 gallon
- Turnover 12hrs: 108000 gallon
- Turnover 8hrs: 72000 gallon

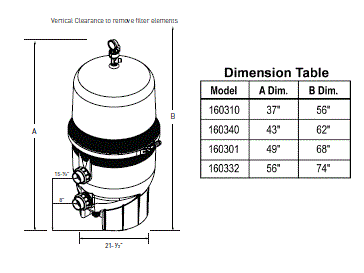

- Vertical Clearance: 74 inch
SUPPORT DOCUMENTS:
FREE SHIPPING - Usually ships in 1-5 business days.
Disclaimer: Professional installation is required (not included). Proof of installation by a trained technician is required to validate the factory warranty.
E-commerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products with EC- in the part number) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are IntelliChlor cells and IntelliFlo SVRS pumps, which receive a two-year (2) year (parts only) warranty. EC products are not eligible for the bundled three (3) year extended warranty.
