Pentair Clean & Clear Plus Cartridge Filter 320 Sq Ft CCP320 EC 160340

Original price $0.00 - Original price $0.00
Original price $0.00
$1,329.00 - $1,329.00
Current price $1,329.00

Why shop with Vita Filters?

  • Authorized Pentair Distributor
  • Fast Free Shipping • No Minimum
  • Backed By Manufacturer's Warranty
  • 100% Satisfaction Guaranteed!
  • On-Staff Water Experts • Contact us

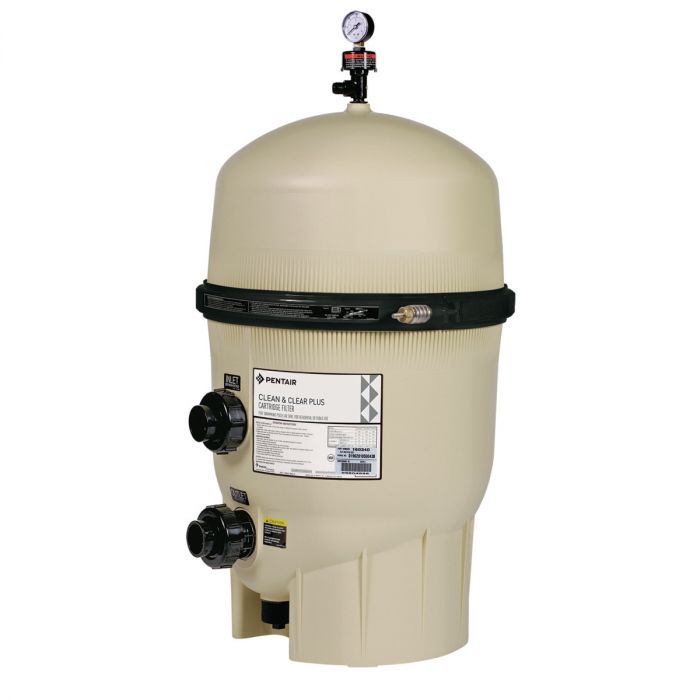

Clean & Clear Plus Filters have a corrosion-resistant injection molded filter tank featuring strength and reliability. The cartridge assembly uses four easy-to-clean, non-woven polyester cartridges. Each filter is supplied with a bulkhead union set for easy installation.

  • Certified to NSF/ANSI Standard 50
  • Large filter area for increased dirt capacity
  • 1-1/2 in., 100% drain clean-out port
  • Continuous High Flow™ Internal Air Relief*
  • Base and plumbing kits available
  • Injection molded tank
  • Balanced hydraulic flow

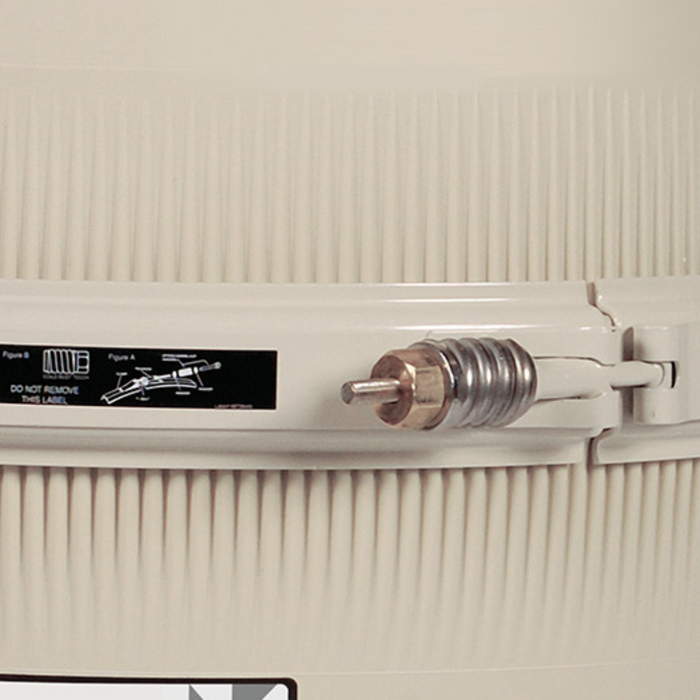

  • Tension Control™ Clamp
  • 100% factory tested
  • Black bulkhead unions
  • High Flow manual air relief valve

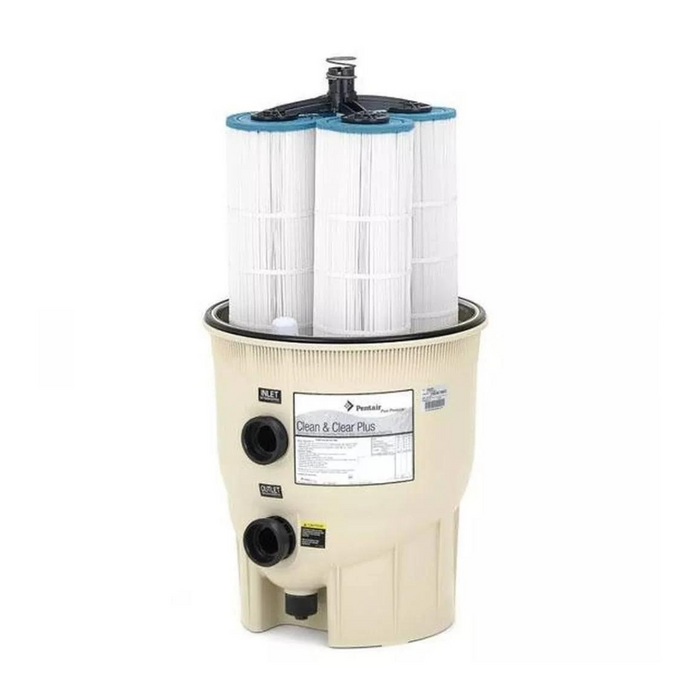

  • Includes filter system with four (4) cartridges


  • Brand: Pentair
  • Application: Pool, Spa
  • Weight: 70 pounds
  • Green or Energy-Efficient Product: True
  • Height: 43 inch
  • Standards Approvals: ANSI Standard 50 Certified
  • Cartridges Required: 4 (included)
  • Design Flow Rate: 120 gal/min
  • Filter Tank Molding Type: fiberglass
  • Filtration Area: 320 square feet
  • Filtration Rate: 120 GPM/ft2
  • Inlet/Outlet Sizes: 1.5 inch
  • Maximum Flow Rate: 120 gal/min
  • Maximum Working Pressure: 50 pounds per square inch
  • Pipe Size: 2 inch
  • Plumbing Size: 2 inch
  • Side Clearance: 6 inch
  • Turnover 12hrs: 86400 gallon
  • Turnover 6hrs: 43200 gallon
  • Turnover 8hrs: 57600 gallon
  • Vertical Clearance: 62 inch


    FREE SHIPPING - Usually ships in 1-5 business days.

    Disclaimer: Professional installation is required (not included). Proof of installation by a trained technician is required to validate the factory warranty.

    Pentair Pool Warranty Support

    *Images are for representation.

    E-commerce (EC) products: Products purchased from an Authorized Pentair Online Reseller (products with EC- in the part number) receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are IntelliChlor cells and IntelliFlo SVRS pumps, which receive a two-year (2) year (parts only) warranty. EC products are not eligible for the bundled three (3) year extended warranty.
