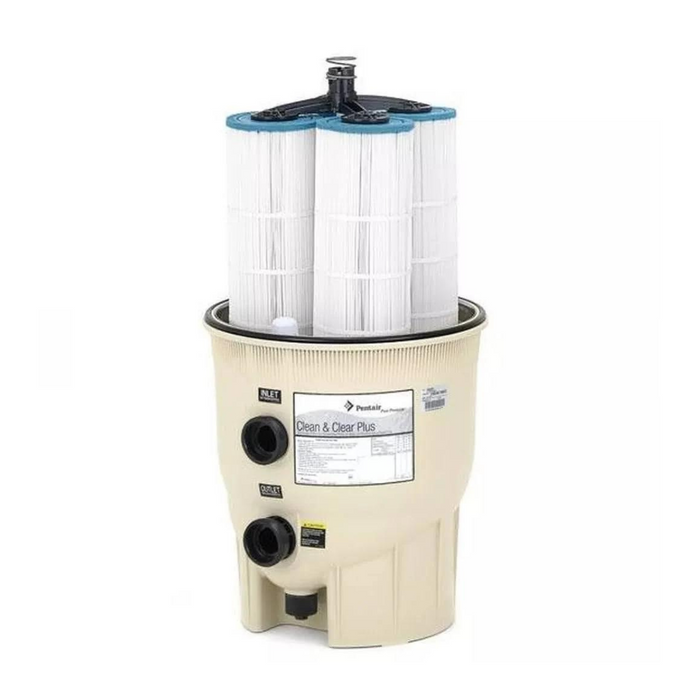

Four High-Performance Cartridges for Crystal Clear Pool Water

The Clean & Clear Plus Filters feature a corrosion-resistant, injection-molded tank known for its strength and durability. The filter system includes four easy-to-clean, non-woven polyester cartridges. Each filter also has a bulkhead union set, making installation simple and straightforward.

• Certified to NSF/ANSI Standard 50
• Large filter area for increased dirt capacity
• 1-1/2 in., 100% drain clean-out port
• Continuous High Flow™ Internal Air Relief*
• Base and plumbing kits available
• Injection molded tank
• Balanced hydraulic flow
• Tension Control™ Clamp
• 100% factory tested
• Black bulkhead unions
• High Flow manual air relief valve

• Includes system with four (4) cartridges

SPECIFICATIONS:

• Brand: Pentair
• Application: Pool, Spa
• Weight: 75 pounds
• Green or Energy-Efficient Product: True
• Height: 49 inch
• Standards Approvals: ANSI Standard 50 Certified
• Cartridges Required: 4 (included)
• Design Flow Rate: 150 gal/min
• Distance Between Inlet/Outlet: 7.49 inch
• Distance Inlet and Base: 17.54 inch
• Distance Outlet and Base: 8.05 inch
• Filter Tank Molding Type: Fiberglass-reinforced
• Filtration Area: 420 square feet
• Maximum Flow Rate: 150 gal/min
• Maximum Working Pressure: 50 pounds per square inch
• Pipe Size: 2 inch
• Plumbing Size: 2 inch
• Side Clearance: 6 inch
• Tank Color: Beige
• Tank Diameter: 22.98 inch
• Tank Material: Fiberglass
• Turnover 12hrs: 108000 gallon
• Turnover 6hrs: 54000 gallon
• Turnover 8hrs: 72000 gallon
• Vertical Clearance: 68 inch
