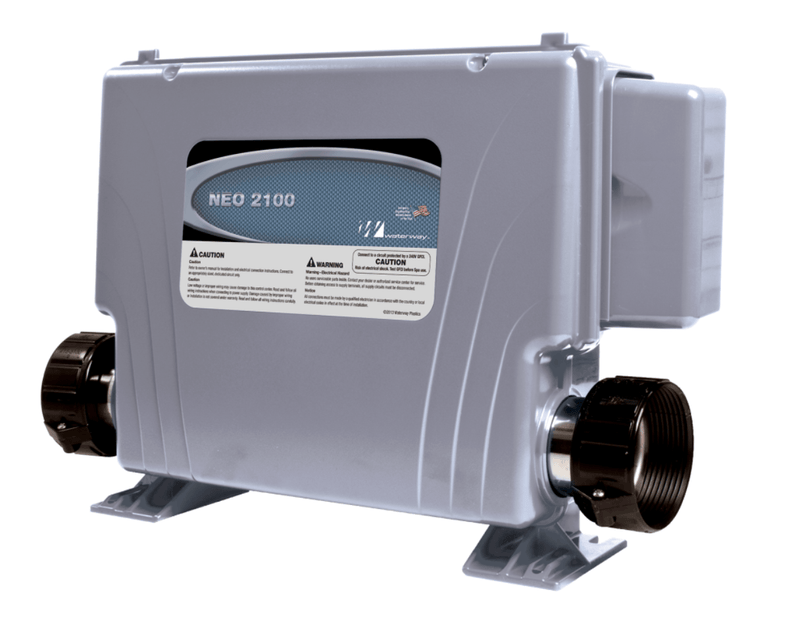

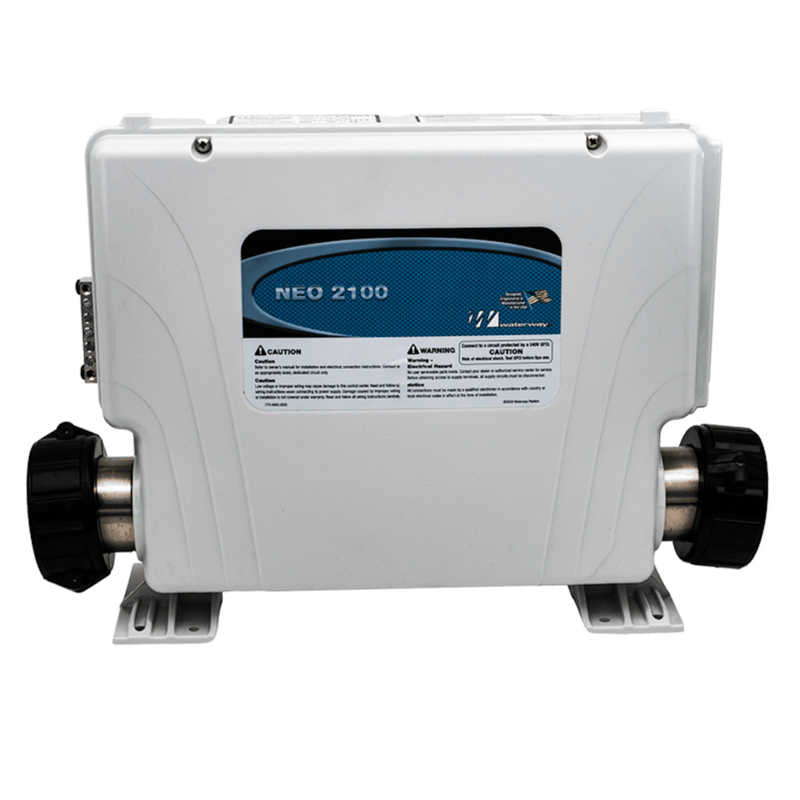

Waterway NEO 2100 Spa Control System, 8-Button Panel & 5.5 KW Heater, 777-WW99004

The innovative NEO 2100 system offers 64 different configurations which allows it to adapt to almost any hot tubs requirements. The spa control system comes standard with an easy-to-use topside control panel with a 1.8" color LCD display.

Features:

• External Equipment and Topside Panel Connections for easy access
• Modular Equipment Expansion Capabilities
• Toggle Terminal Connections for easier installation
• Each circuit can operate at either 120 Volts or 240 Volts depending on hot tub equipment specifications (field adjustment required)
• Converts from 60 Hz to 50 Hz
• Wi-Fi Ready

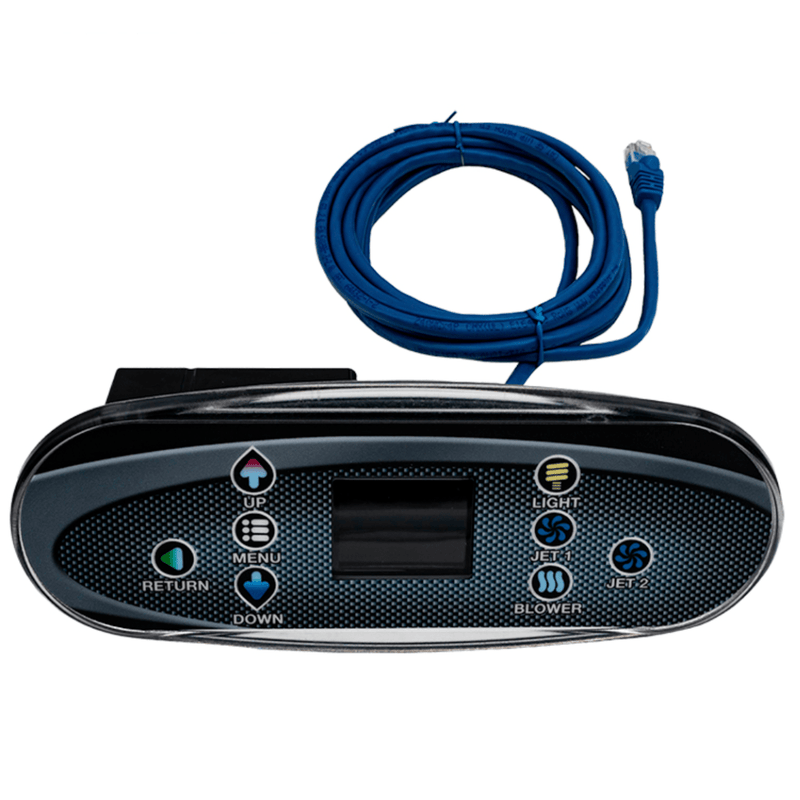

• NEO 1100 Topside Control Panel with 1.8" color LCD Display
• Easy menu navigation
• Multi languages (English, Spanish, French, German)
• Real-Time Clock
• UL Certified for the US and Canada
• CE compliant for Europe
• Waterway 777-WW99004

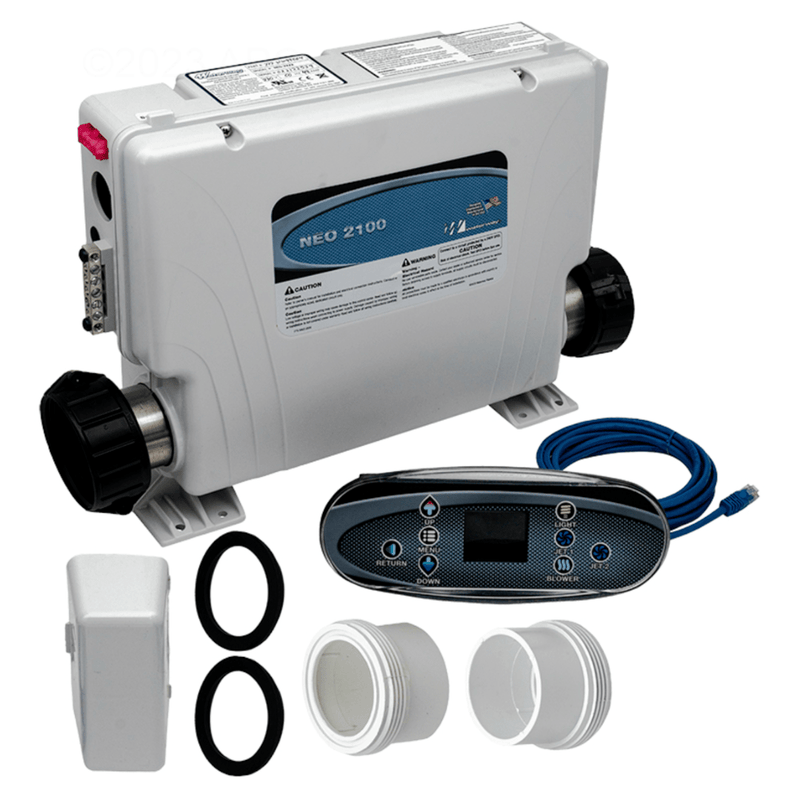

What's in the box:

• Waterway NEO 2100 Control System
• Waterway NEO 1100 6-Button Topside Control Panel with LCD Screen
• Stainless Steel Heater Assembly with Electronic Thermal Sensing System

NEO 2100 Control System Can Operate:

• 1x 5.5 KW Stainless Steel Heater Assembly (Included)
• 2x Two Speed Pumps
• 1x Blower
• 1x AV Port
• 1x Ozonator
• 1x Light

All Pump and Ozonator Circuits are convertible to 120 or 240 Volt Operation. The NEO 2100 Control System can operate a total of (2) Two Speed Pumps or (1) Two Speed Pump and (1) One Single Speed Pump standard. If you need to operate more pumps you can add Daughter Board 1 (Part # 775-0501) which will allow you to (1) more two-speed pumps or (2) more single-speed pumps. If you need even more you can add Daughter Board 2 (Part # 775-0502) which will allow you to add (2) more two-speed pumps or (4) more single-speed pumps Daughter boards are not included and are sold separately)
