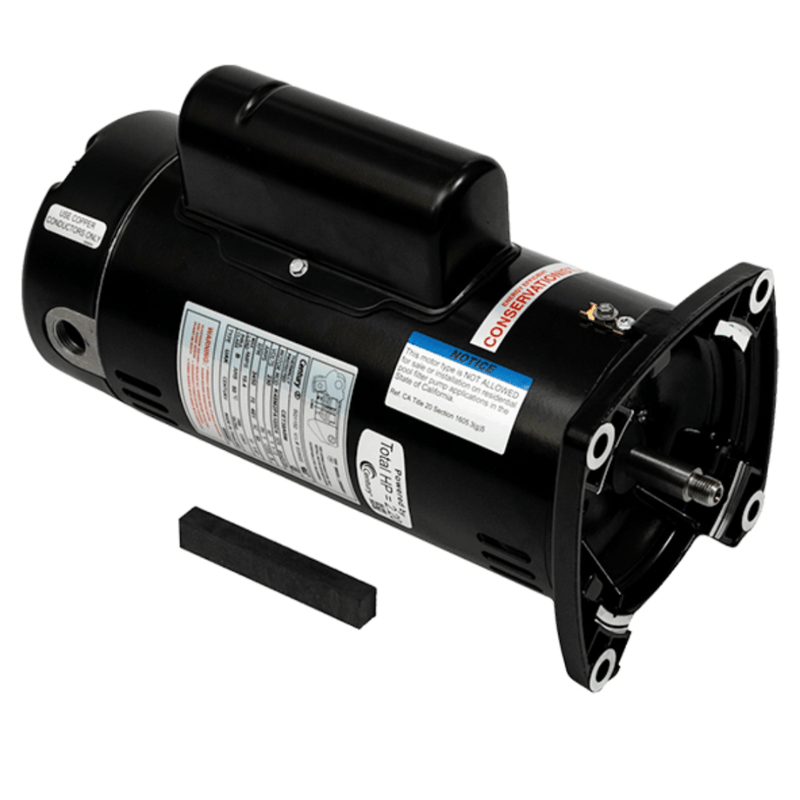

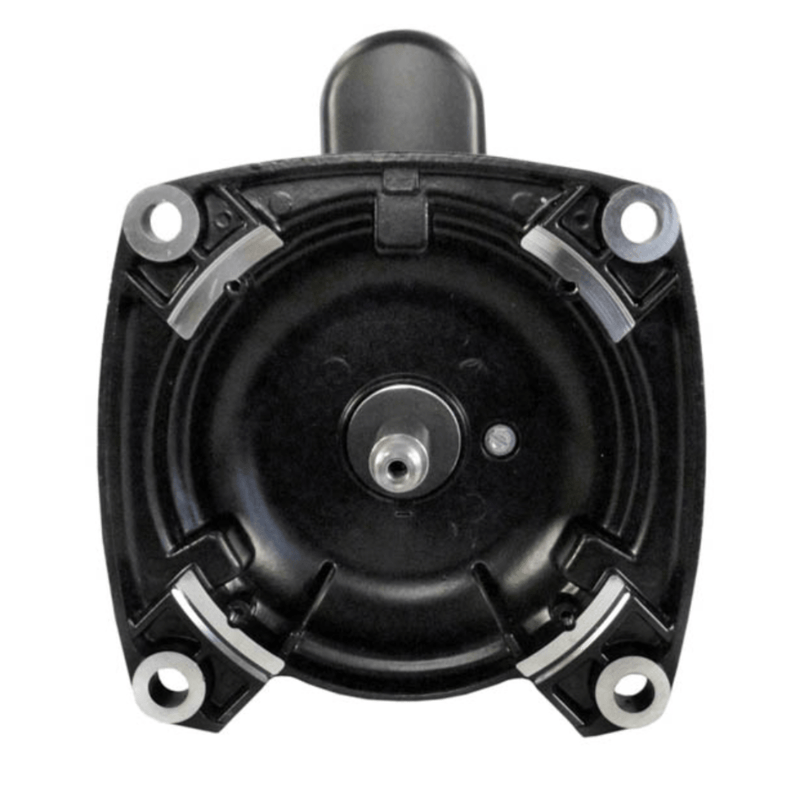

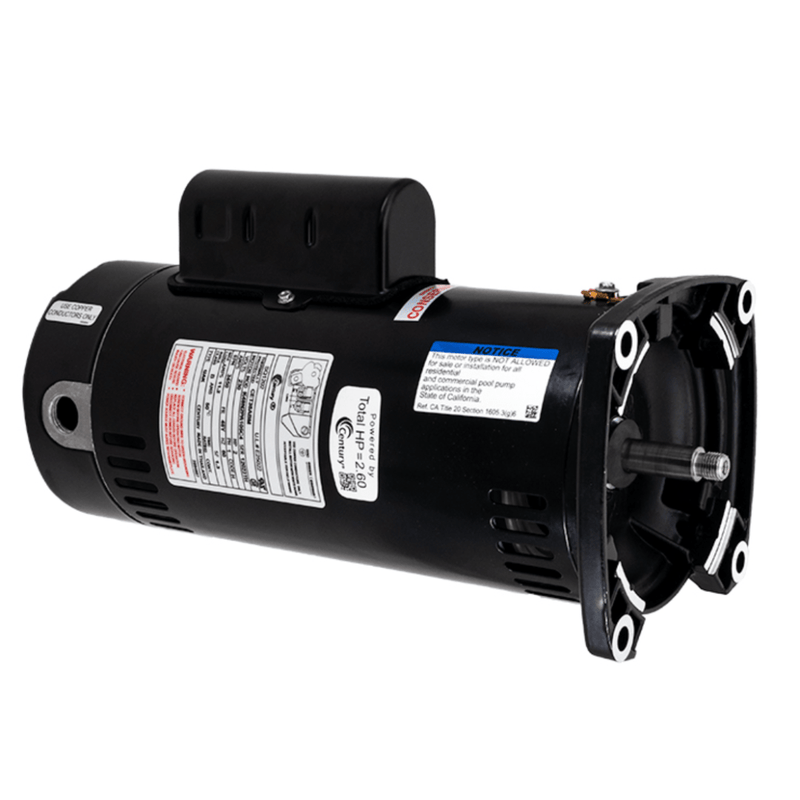

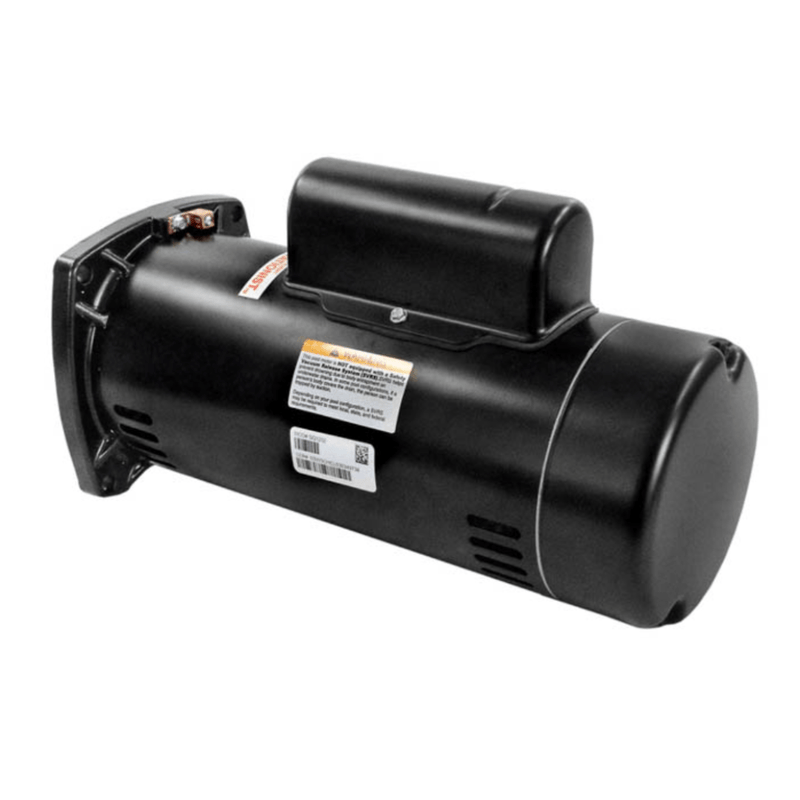

Century USQ1072 Pool Pump Motor, 3/4 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 48Y Frame, ODP
SKU USQ1072
Original price
$239.99
-
Original price
$239.99
Original price
$239.99
$239.99
-
$239.99
Current price
$239.99
Availability:
In stock
Century® USQ1072 Two-Compartment Pool Filter Motor; 0.75 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, Square Flange
- 3/4 HP SQUARE FLANGE MOTOR
- 1.27 SF 115/230V
Used On:
- Hayward MaxFlo XL Pump Parts
- Jacuzzi Cygnet and Cygnet II Pump Parts
- Jandy MHP/MHPU Pump Parts
- Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
- Sta-Rite Max-E Glas and Dura-Glas Up-Rated Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 13.4/6.7 A |
| HP | 0.75 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 11.50 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.27 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 0.95 |
| Type | Up-Rated, UAC |
| Voltage Rating | 115/230 V |
Shipping, Installation & Warranty
Free Shipping: Orders ship within 1 business day unless otherwise noted.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Note: Images are for representation.
