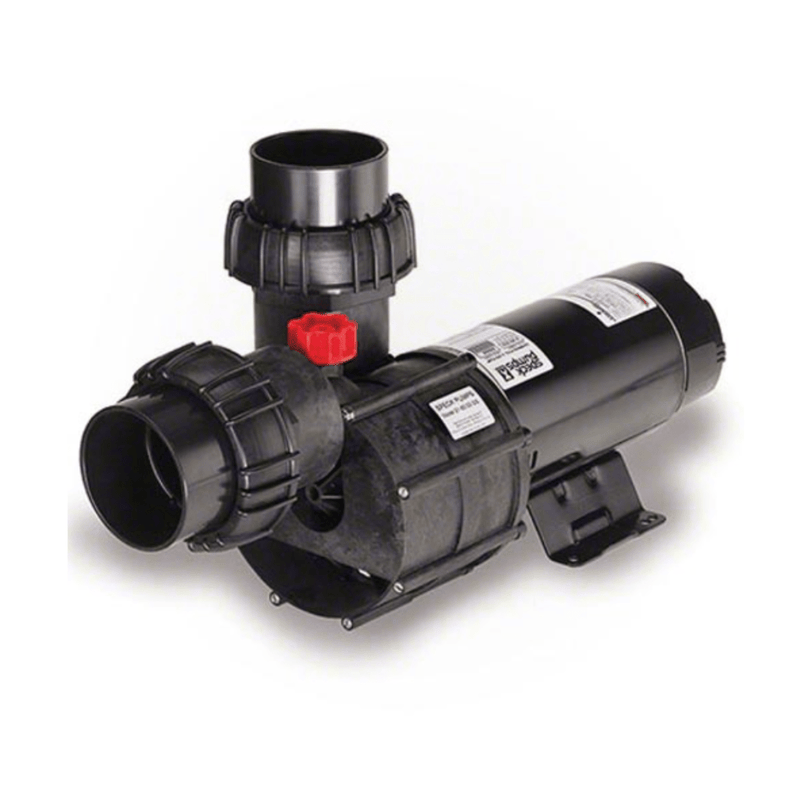

The Speck Pumps Model 21-80 GS is specially suited for commercial vacuum and sand filters, swim spas, hydrotherapy, water slides, waterfalls, and vanishing edge pool applications. This pump is designed to provide maximum flow at low head, and is self-priming. The Speck Model 21-80 GS high efficiency pump is environmentally friendly, and uses only 100% recyclable plastic.

Support Documents:

• Energy Efficient Single Speed
• Self-Priming
• 6.0 HP
• 1.0 S.F.
• 6.0 THP
• 208-230 volts
• Premium energy efficient ODP 56 frame motor
• Features a mechanical shaft seal that allows the pump to run dry for up to one hour without harming the pump
• May be used in pools with salt concentrations up to 5000 ppm and temperatures up to 175° F
• Non-corrosive parts are made from 100% recyclable plastic
• Chemical and UV resistant
• Includes quick disconnect 4" unions for simple installation or maintenance
• Engineered for safety, with a dielectric shaft sleeve to completely separate the pool water from the electric parts
• Features a large energy efficient 56 frame thermally protected motor with reuseable o-rings throughout
• No motor starter is required
• The heavy duty "1081" motor is available with E-plus/extreme-E energy efficient for extra low energy consumption
• PSC switchless design and extra large sealed ball bearings
• Motor is easily removed without disturbing the plumbing
• Includes a two year warranty on the motor and all pump parts, including normal wear of the mechanical seal
• Every pump is thoroughly tested before leaving the Speck factory

Specifications:

• Brand: SPECK PUMPS
• Application: Pool
• Commercial, Residential, or Professional: Commercial
• Weight: 70 pounds
• Flow Rate Max: 400 gal/min
• Horsepower: 6 horse power
• Motor Speed: 1-Speed
• Phase: Single
• Service Factor: 1
• Service Factor HP: 1.25
• Thrust HP: 6
• Voltage: 208V, 230V
