by Speck

Speck 7.5HP 95-X Commercial Pump 208-230/460V 3PH TEFC IG273-1750F-000

Name: Speck 7.5HP 95-X Commercial Pump 208-230/460V 3PH TEFC IG273-1750F-000
Brand: Speck
SKU: IG273-1750F-000 IG2731750F000
Price: 3250.0 USD
Availability: InStock

SKU IG273-1750F-000 IG2731750F000

Sale

$3,772.00

$3,772.00 - $3,772.00

$3,772.00

$3,250.00

$3,250.00 - $3,250.00

$3,250.00

Quantity

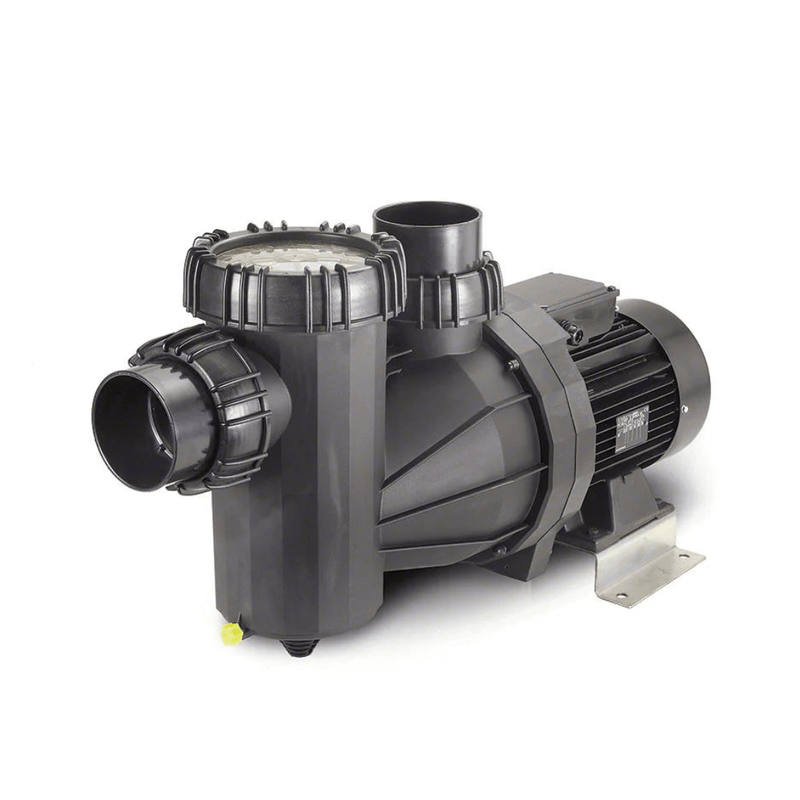

This is a Model IG273-1750F-000 95-X Speck Pump with 7.5 HP, 208-230/460 Volts, 3-Phase, and 4 inch quick disconnect unions. This Model 95 features the largest one-piece plastic casing design for a swimming pool pump. Plus, the Model 95 pumps have an integrated strainer basket with an easy on/off two-piece lid. Combine these features with the unique mechanical seal and you have a medium head pump with the highest flow of any one-piece plastic pump in the industry.

The Speck Model 95 is a high performance pump that comes complete with Speck's unique mechanical shaft seal. This unique seal allows the pump, if mistreated, to run dry for up to one hour.

The Speck Model 95 pumps are also salt water friendly. They can be used in swimming pools with a salt concentration of up to 5,000 ppm. If you should have a higher concentration, contact your sales representative for a quote on a modified pump.

The Model 95-X pool pump also features a heavy-duty, energy efficient Totally Enclosed Fan Cooled (TEFC) Motor with a 112M frame. The motor is easy to remove without disturbing the plumbing. These pool pumps are designed for large inground swimming pools and high rate sand filter applications. They can also be used in water features.

The Model 95 pool pumps are equipped with 4 inch quick disconnect unions which make installation and maintenance very easy. And each pump includes a wrench for the unions and the lid. Each pump is performance tested before leaving the Speck factory.

Speck pumps are designed with German engineering and built in the U.S. to deliver the highest quality pool pumps. Compatible with the Speck VFD line and with their Automated Flow System, upgrade to a Speck Model 95 pool pump for high performance, durability and reliability.

208-230/460 Volts 3-Phase
22-20.0/10 Amps
Total HP: 8.625
Large one-piece housing
Quiet and efficient medium head pump performance
Unique Mechanical Seal - pump can run dry for up to one hour
Salt water friendly - up 5000 ppm
Heavy-duty Totally Enclosed Fan Cooled (TEFC) Motor
This model requires a Speck Motor Starter
4 inch quick disconnect unions
Wrench for unions and lid is included with each pump
Reusable o-rings throughout
100% recyclable plastic
Two-Year Warranty

Specifications:

Brand: SPECK PUMPS
Amps High Speed: 19
Amps Low Speed: 8.9
Application: Pool
Commercial, Residential, or Professional: Commercial
Weight: 124 pounds
Green or Energy Efficient Product: True
Horsepower: 7.5 horsepower
Material: Plastic
Motor Speed: 1-Speed
Phase: Three
Service Factor: 1.15
Voltage: 208V, 230V
