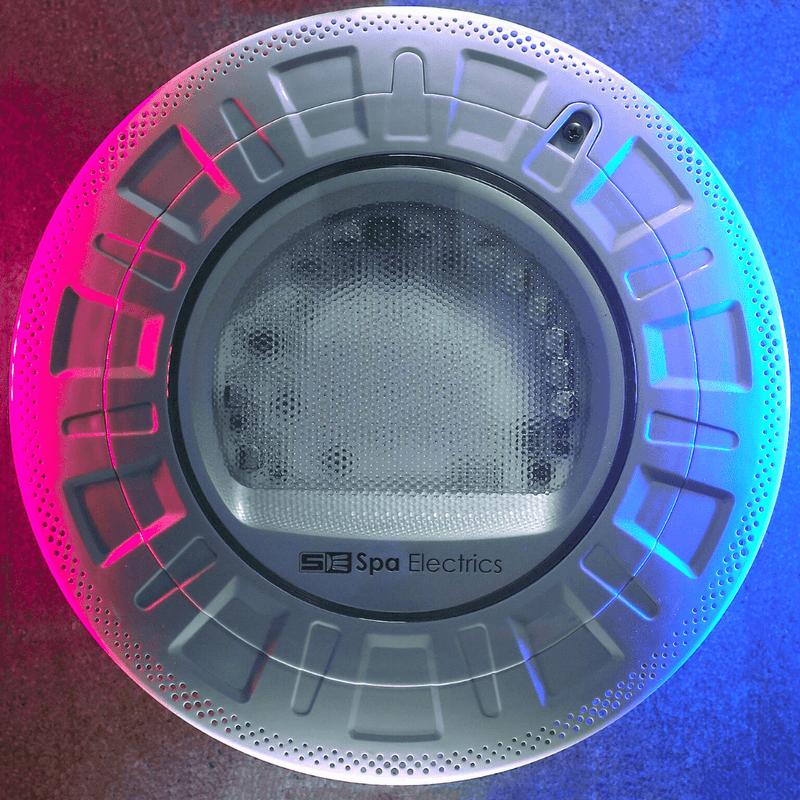

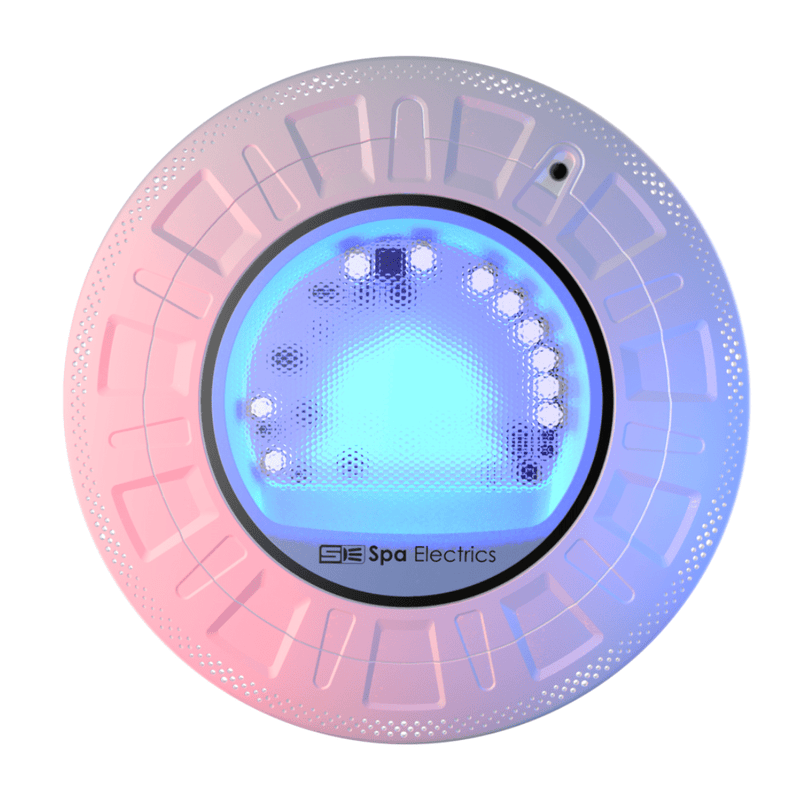

Spa Electrics RETRO R8 Universal 8" Retro-Fit Pool Light

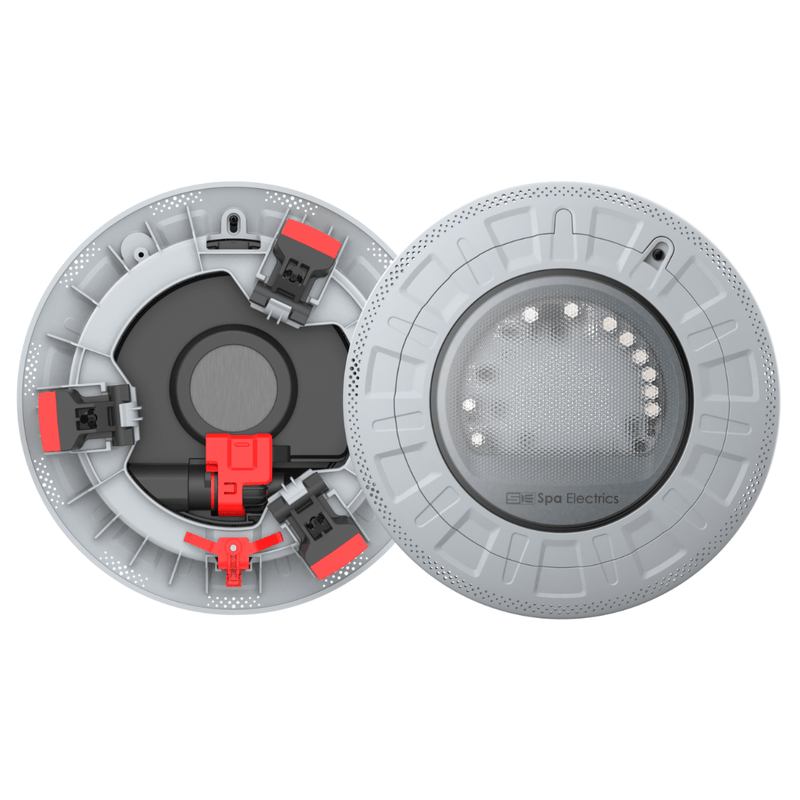

The Retro R8 is the only light for 8” Niches you will ever need, there’s no need for expensive repair work as Retro R8’s Universal Adaptor doesn’t rely on intact niche mounting hooks or screws for a successful installation. The patented CAM-LOCKS grip the niche wall as they’re fitted, pulling the Retro R8 Light and existing niche together for a secure, even fit.

If the existing niche mounting hooks and screws are intact, Retro R8 supports standard installation via the HOOK TAB at the base and the front-facing screw at the top. The HOOK TAB at the base adjusts to suit all major brand niche tabs, without the need for extra washers or spacers. Say goodbye to changing cables with Retro R8’s Quick Connect Plug. Connecting to the existing pool light cable in the niche, the UL Listed Quick Connect Plug ensures fast and reliable installation while also enabling easier future servicing in the field.

Retro R8 is the brightest LED retrofit on the market with over 3000-lumen output. The unique water-cooled design harnesses the full cooling potential of your pool to maximize performance and extend product life. Retain the brilliance of a 300W halogen, while improving the look and safety of your pool with the Retro R8.

The Retro R8 Series is designed and manufactured in Australia and backed by Spa Electrics’ industry-leading customer care network.

• High-intensity Ceramic Light Engine (LED) Technology
• Market-leading brightness and efficiency
• Available in Blue, White, or MULTI PLUS Multi-Color
• Direct-Connect Patented detachable electrical connection
• Suitable for Concrete and vinyl pools (Vinyl Trim Kit required - sold separately)
• IPX8 waterproof rating
• UL Certified
• Designed and manufactured in Australia

Specifications:

• Light Source: Ceramic Light Engine (LED)
• LED Colors:
• White 3000k Warm or 4000k Daylight, 3200 lumen
• Blue 1000 lumen
• MULTI PLUS RGB+W 3200 lumen
• MULTI PLUS Compatibility: Wall Switch Operation and all major pool controller brands including Pentair IntelliTouch®, Haward Omnilogic®, Aqualink®
• Niche Compatibility: All major brand niches including: American®, Anthony®, CHD®, Hayward®, Hydrel®, Jandy®, PacFab®, Paragon®, Pentair®, Purex®, Sta-Rite®, Swimquip®
• Cable Compatibility: Up to 12AWG size
• IP Rating: IPX8
• Installation Types: Concrete
• Voltage: 10.5 to 13 v AC
• Wattage: 45 watts
• Ambient Operating Temperature: 41 °F to +104 °F
• Transformer Requires: 12V AC UL listed transformer. LVX Series Transformers are recommended.
