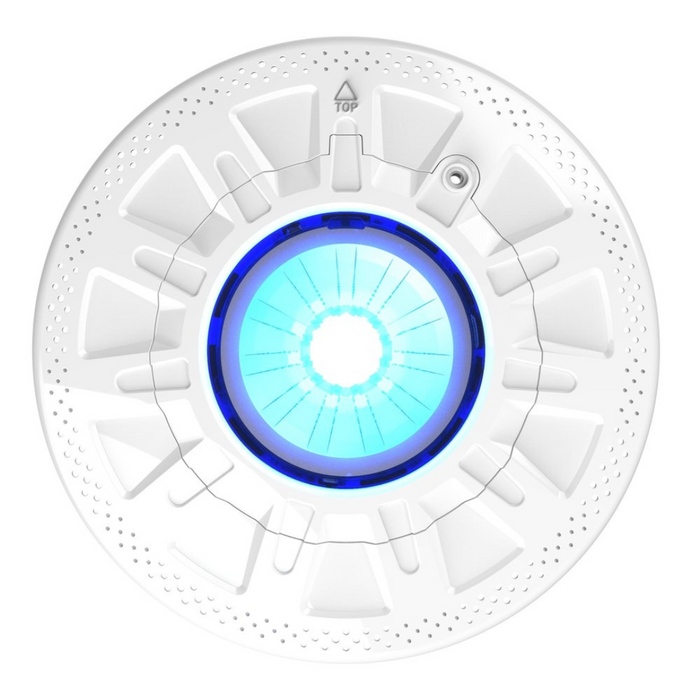

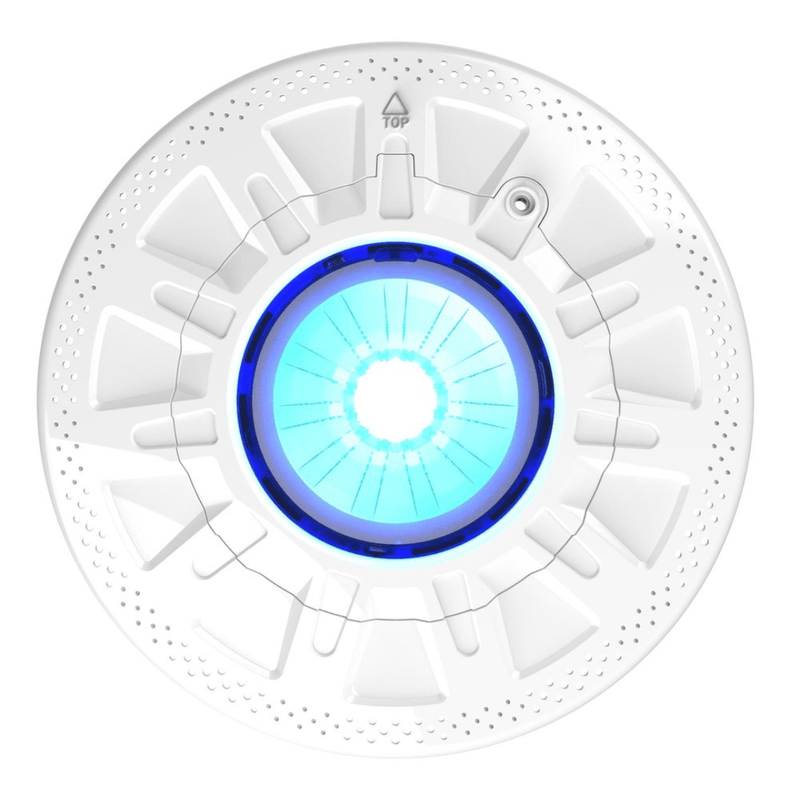

Spa Electrics RETRO R6 Universal 6" Retro-Fit Replacement Pool Lights

SKU R6 L12 R1 WMP
Original price $567.38 - Original price $598.90
Original price
$567.38
$567.38 - $598.90
Current price $567.38

Why shop with Vita Filters?

Description:

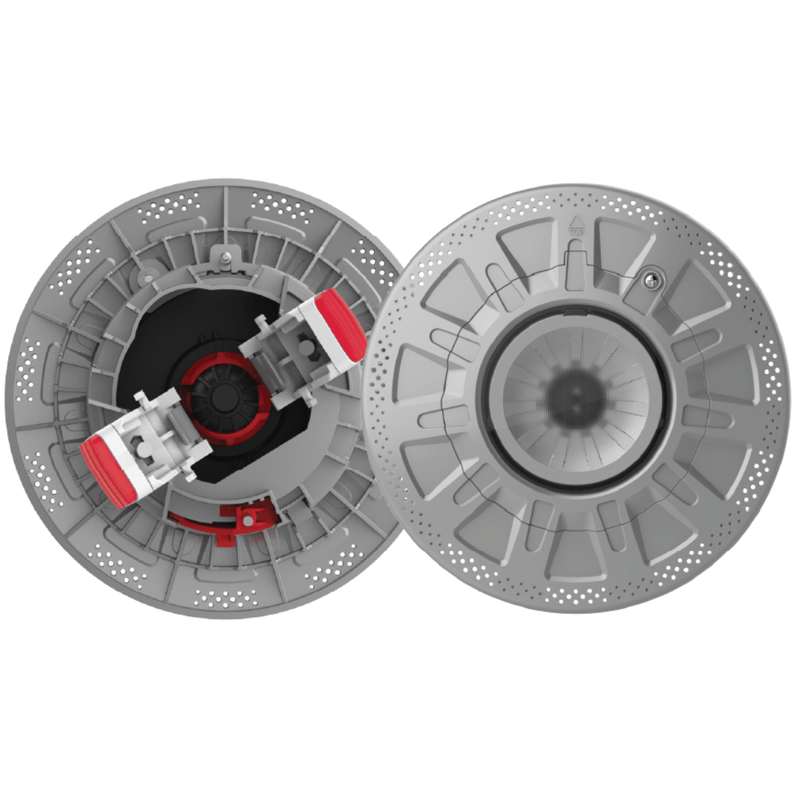

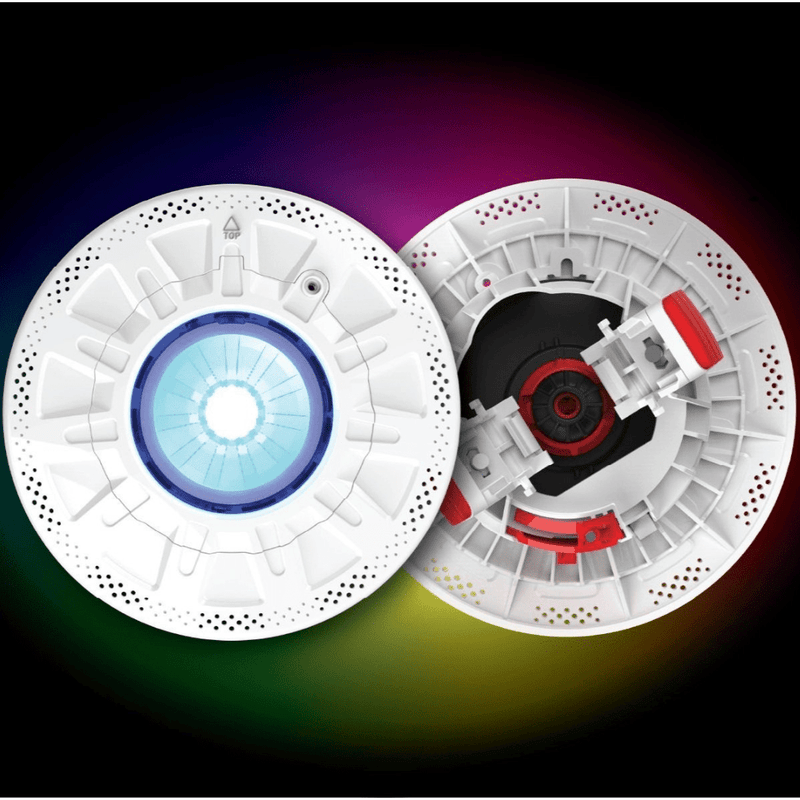

The Retro R6 Series unique Universal Adaptor locks into existing niches for a secure fit when standard installation isn’t possible. The Interchangeable Cam-Locks allow the Retro R6 to suit any 6” Niches (ID 4.75 - 5.2 & 5.8 -6.6 (Q500 cam-locks required- R6C 006 Q5)). UL listed Quick Connect Plug - offers safe low voltage connection and easier future servicing with no cables to pull through.

The Retro R6 Series is designed and manufactured in Australia and backed by Spa Electrics’ industry-leading customer care network.

  • High-intensity Ceramic Light Engine (LED) Technology
  • Market-leading brightness and efficiency
  • Available in MULTI PLUS
  • Direct-Connect Patented detachable electrical connection
  • Suitable for Concrete pools
  • IPX8 waterproof rating
  • UL Certified
  • Designed and manufactured in Australia

Specifications:

  • Light Source: Ceramic Light Engine (LED)
  • LED Colors: MULTI PLUS RGB+W 1000 lumen
  • MULTI PLUS Compatibility: Wall Switch Operation and all major pool controller brands including Pentair IntelliTouch®, Haward Omnilogic®, Aqualink®
  • Niche Compatibility: 6" Niches (ID 4.75 - 5.2 & 5.8 - 6.6 (Q500 CAM-LOCKS required- R6C 006 Q5))
  • Cable Compatability: Up to 12AWG size
  • IP Rating: IPX8
  • Installation Types: Concrete
  • Voltage: 10.5 to 13 v AC
  • Wattage: 15 watts
  • Ambient Operating Temperature: 41 °F to +104 °F
  • Transformer: Requires 12V AC UL listed transformer. LVX Series Transformers are recommended.

Support Documents:

6” RETRO LIGHTS
Part No Description
R6 L12 R1 WMP 1 x RETRO 6” (R6) MULTI PLUS LIGHT + WHITE 6” NICHE ADAPTER + PLUG SEAL ASSEMBLY KIT + WHITE RIM

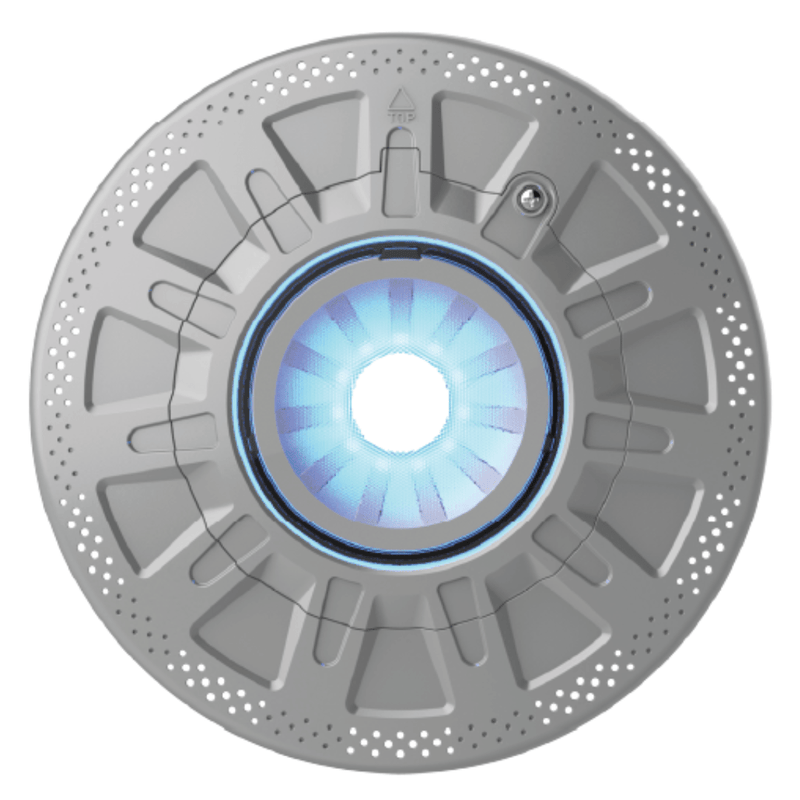

R6 L12 R1 GMP 1 x RETRO 6” (R6) MULTI PLUS LIGHT + GREY 6” NICHE ADAPTER + PLUG SEAL ASSEMBLY KIT + GREY RIM
REPLACEMENT LIGHTS
Part No Description

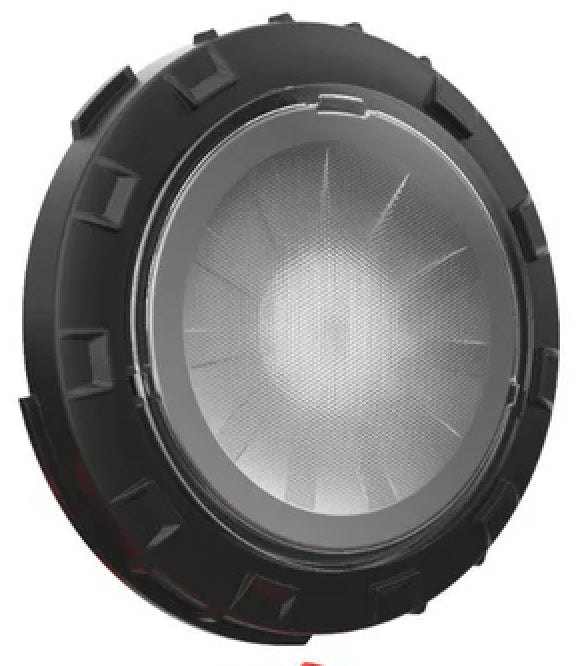

R6 L12 L0 MP 1 x RETRO 6” (R10) MULTI PLUS LIGHT ONLY
R6 L12 L0 MP 1 x RETRO 6” (R10) MULTI PLUS LIGHT
SPARE PARTS
Part No Description
R6C 006 Q5 RETRO 6” (R6) CONCRETE Q500 CAM LOCK KIT R6C 006 RETRO 6” (R6) CONCRETE STANDARD CAM LOCK KIT
R6C 004 WH RETRO 6” (R6) CONCRETE RIM WHITE R6C 008 WH RETRO 6” (R6) CONCRETE ADAPTOR PLATE WHITE
R6C 004 GY RETRO 6” (R6) CONCRETE RIM GREY N3 18AWG 100 ARGON 3”- 100FT 18AWG CABLE WITH PLUG
R6C 001 RETRO 6” (R6) CONCRETE WINTERISATION KIT N3 18AWG 150 ARGON 3”- 150FT 18AWG CABLE WITH PLUG
R6C 008 GY RETRO 6” (R6) CONCRETE ADAPTOR PLATE GREY

FREE SHIPPING - Usually ships in 1-5 business days.

Disclaimer: Professional installation is recommended (not included). Proof of installation by a trained technician may be required to validate the factory warranty.
