Spa Electrics RETRO R10 Universal 10" Retro-Fit Pool Light

Retro R10 LED Pool Light

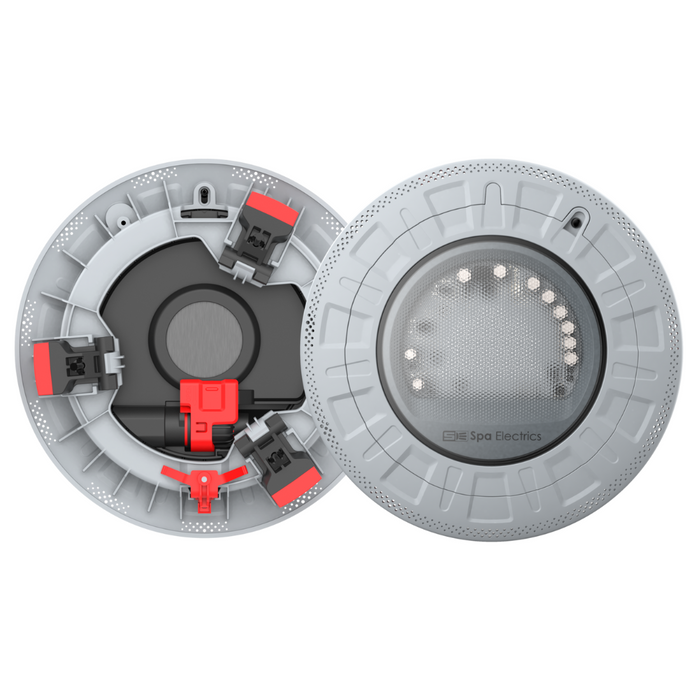

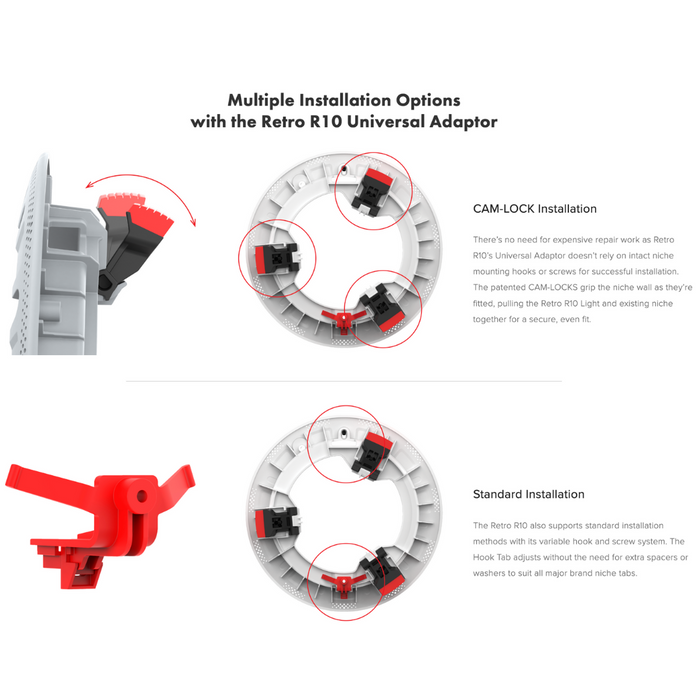

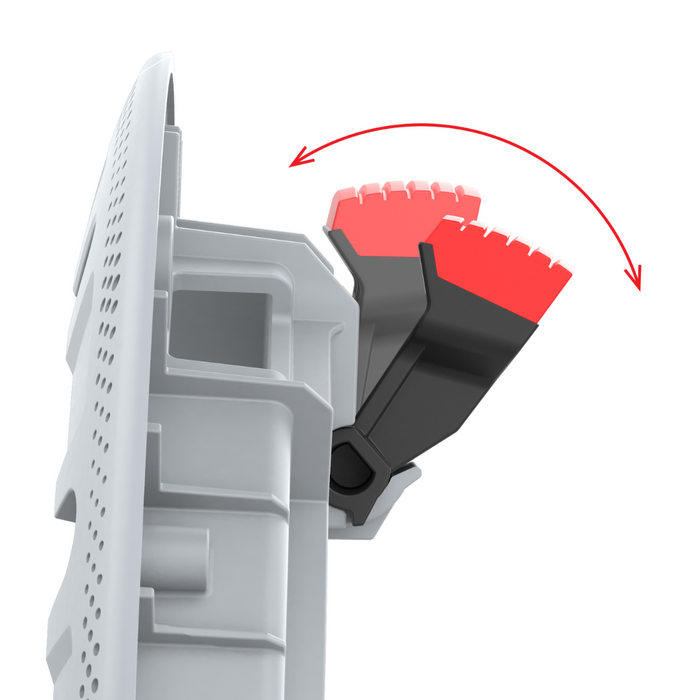

The Retro R10 is the ultimate solution for 10” niches (ID: 9.05”–9.6”), eliminating the need for costly repairs. Its innovative Universal Adaptor ensures a secure fit without relying on intact niche mounting hooks or screws. The patented CAM-LOCKS firmly grip the niche wall during installation, creating a stable and even connection between the light and the niche.

For niches with intact mounting hooks and screws, the Retro R10 supports standard installation via a HOOK TAB at the base and a front-facing screw at the top. The adjustable HOOK TAB fits all major brand niche tabs without requiring extra washers or spacers.

Simplify installation and servicing with Retro R10’s UL-listed Quick Connect Plug, which connects to the existing pool light cable within the niche. This fast, reliable connection streamlines future maintenance and minimizes downtime.

With a market-leading 3000-lumen output, the Retro R10 is the brightest LED retrofit available. Its advanced water-cooled design optimizes performance and extends product life by harnessing your pool’s cooling potential. Enjoy the brilliance of a 300W halogen while enhancing your pool’s appearance and safety.

Proudly designed and manufactured in Australia, the Retro R10 is backed by Spa Electrics’ industry-leading customer care network.

Features:

• High-Intensity Ceramic Light Engine (LED): Maximum brightness and efficiency
• Color Options: Blue, White, or MULTI PLUS RGB+W multi-color
• Direct-Connect Technology: Patented detachable electrical connection
• Compatibility: Concrete and vinyl pools (vinyl trim kit required – R10V 0021)
• IPX8 Waterproof Rating
• UL Certified

Specifications:

• Light Source: Ceramic Light Engine (LED)
• LED Colors:
  • White: 3000K Warm or 4000K Daylight (3200 lumens)
  • Blue: 1000 lumens
  • MULTI PLUS RGB+W: 3200 lumens
  • MULTI PLUS Compatibility: Wall switch operation and all major pool controllers, including Pentair IntelliTouch®, Hayward OmniLogic®, and Aqualink®
• Niche Compatibility: Fits all major brand niches, including American®, Anthony®, CHD®, Hayward®, Hydrel®, Jandy®, PacFab®, Paragon®, Pentair®, Purex®, Sta-Rite®, and Swimquip®
• Cable Compatibility: Supports up to 12AWG
• Voltage: 10.5–13V AC
• Wattage: 45W
• Ambient Operating Temperature: 41°F to 104°F
• Transformer Requirements: 12V AC UL-listed transformer (LVX Series recommended)

Upgrade your pool with the Retro R10—precision-engineered for performance, durability, and elegance.

User Manuals:
