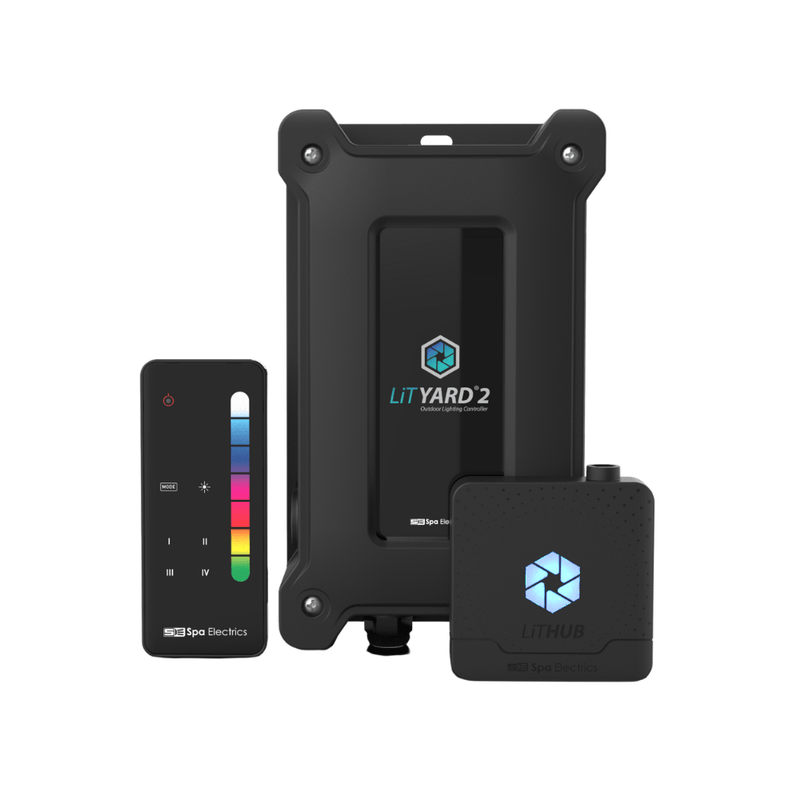

Spa Electrics LIT YARD 2 Pool & Spa Lighting Controller (LIT Y2X RFH)

LiT YARD 2 gives you full control of MULTI PLUS LED lights with a simple button press using the sleek iRIS remote. The LiT YARD 2 Lighting Controller powers your External RF Bridge, ensuring strong connectivity and maximum range. Control your lights individually or together using the controller’s 2-zone pool/spa function. With a line-of-sight range of up to 162 feet (50 meters), managing your lighting has never been easier.

Specifications:

• INPUT: 120V 60Hz
• OUTPUT: 12V / 13V AC
• WATTAGE: 100W
• INPUT CONNECTIONS: 2 x DUAL ½” / ¾” + 2 x ¾” PORTS
• OUTPUT CONNECTIONS: 2 x DUAL ½” / ¾” + 2 x ¾” PORTS
• INGRESS PROTECTION: IP55+
• CERTIFICATION: UL
• WARRANTY: 3 YEARS
• SUITABLE FOR: SWIMMING POOL & SPA LIGHTING
• Support Documents
• Product Brochure
• 3-Year Warranty

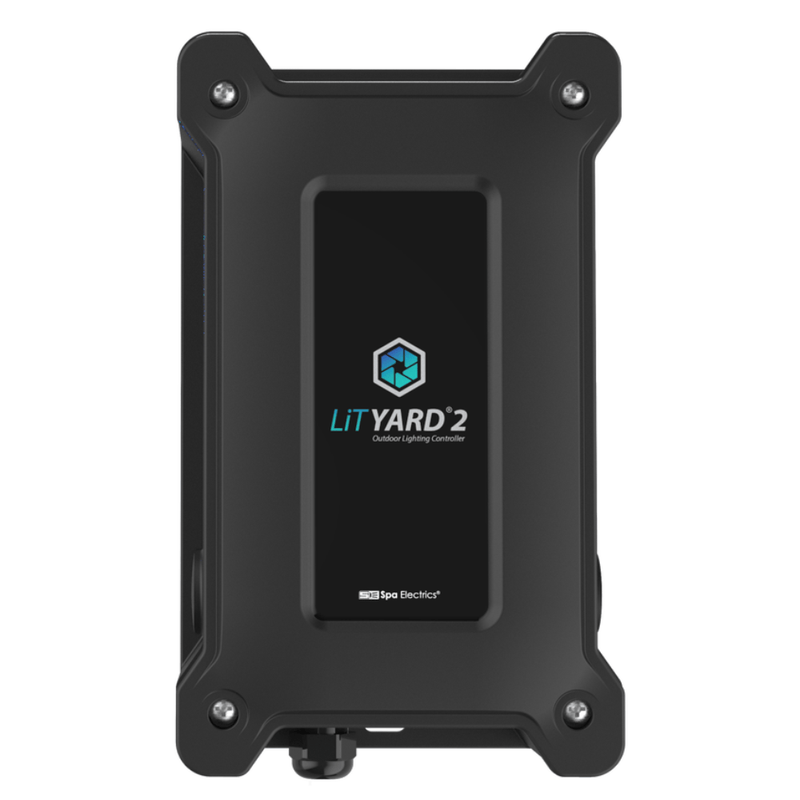

Built-In 100W Transformer & Remote

The LiT YARD Controller can power and control up to 6 Spa Electrics LED lights. Its sleek design includes quick-connect features, large termination compartments, dual ½” and ¾” conduit knock-out positions, and a robust, stylish case, making it an ideal complement for any pool installation.

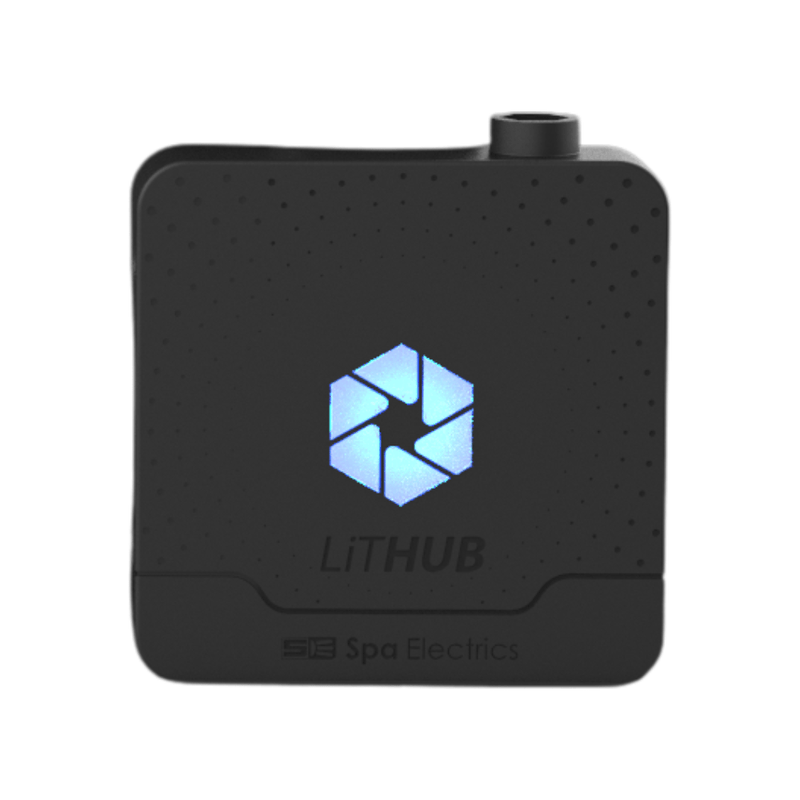

External RF Bridge

The External RF Bridge enhances connectivity in challenging installations by enabling placement in an accessible location and offering a 54-yard (50 Meter) line-of-sight range. It features an LED indicator that signals the power status, providing a clear visual cue.

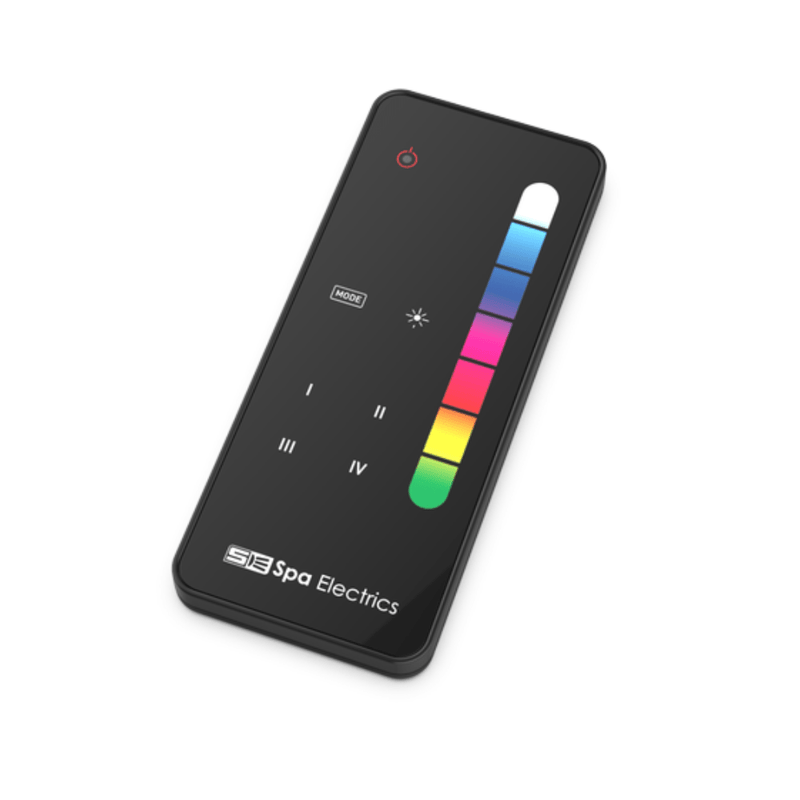

Handheld Remote Control

The LiT YARD 2 iRIS Remote Control features a capacitive touch screen that allows users to select from 7 static colors and 4 color shows. It offers two channels for controlling Pool and Spa lights either separately or together.

• Handheld Remote Capacitive touch screen, constructed from premium materials and scratch resistant acrylic screen.
• Power Button On handset with LED indicator to identify channel status.
• Color Select Choose between 7 static & 4 color shows.
• Pool/Spa Channel Selection Independently select the color of the pool and spa lights using the Mode Selection Button, with the LiT YARD 2’s two-zone capability.
• Brightness Control Ability to dim individual outputs, select between 3 different levels of brightness.
