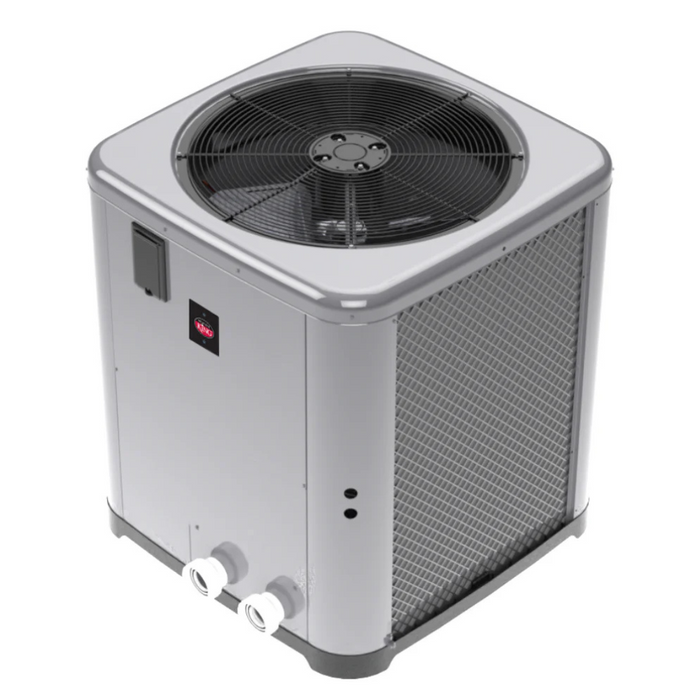

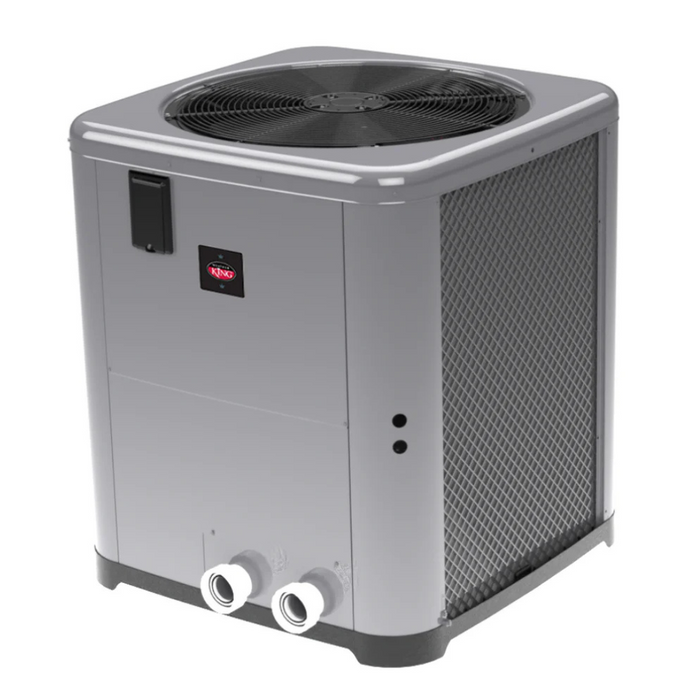

Raypak Weather King 118K BTU Digital Heat Pump Pool Heater (TWPH-6560EHT01)
10% Off Raypak Heaters – Use code RAYPAK.
See details.
Raypak 118K BTU Digital Heat Pump – Weather King (TWPH-6560EHT01)
Free Nationwide Shipping!
Keep your pool warm with the reliable and energy-efficient Raypak Weather King 118K BTU Heat Pump. This heat-only unit features quiet operation, durable powder-coated steel construction, and easy-to-use digital controls. Built for simple installation and low-maintenance service, it delivers consistent comfort with clear diagnostic codes and dependable performance—season after season.
- Warranty – 2 years for labor, 7 years for parts
- Product Brochure
- User Manual
Specifications:
- Model Type: Heat Only
- Max. Capacity (BTUH): 118,000
- C.O.P: 6.0
- Rated Flow Capacity: (GPM) 49.5
- Indoor/Outdoor: Outdoor
- Residential/ Commercial: Residential
- Heat Exchanger: Material Titanium
- Refrigerant Type: R410A
- Heating Capacity: (kW) 34.5
- Rated Outlet: Water Temp 104F
- Fan Type: 1-speed, 1-Ph/60Hz/240V motor, 4 blade fan
- 240V, 50A breaker is required
- Min. Water Supply: Flow (GPM) 30
- Max. Water Supply: Flow (GPM) 60
- Compatiable Part Numbers: 6560, 6450, TWPH-6560, TWPH6560, TWPH-6560EHT01, TWPH6560EHT01, 016015, TWPH-6450EHT08, TWPH6450EHT08, TWPH-6450EHT08 016015 RHM-15-6017
Optional Water Bypass Valve Kit: Recommended for setups with single-speed pumps or flow rates above 60 GPM. Helps maximize heat pump efficiency and prevent error codes.

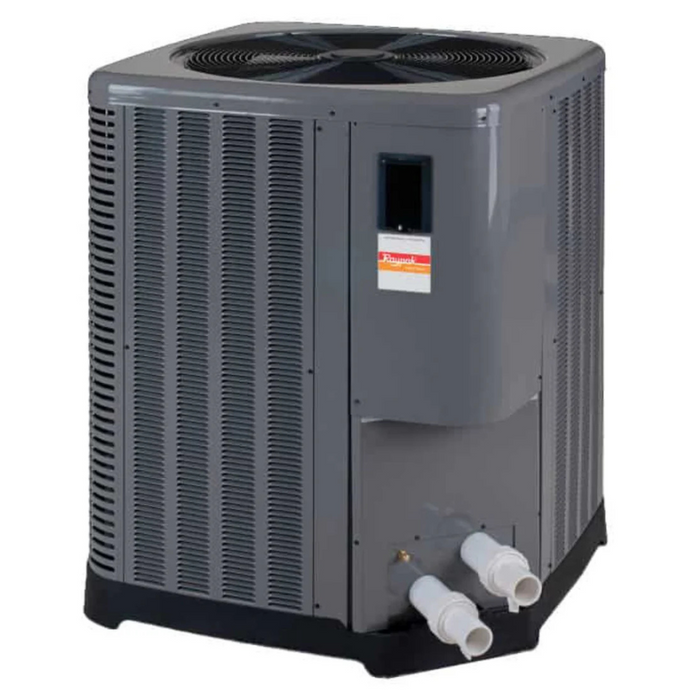

**Important Note: The Raypak 119K BTU Digital Classic Heat Pump (016015, TWPH-6450EHT08, 6450) is discontinued and has been replaced with the Raypak WeatherKing 118K BTU Digital Classic Heat Pump (TWPH-6560EHT01, 6560).
Free Shipping: In-stock items ship within 1–2 business days. Please refer to our shipping policy for full details.
Warranty: Visit the Raypak warranty page or refer to the specific product user manual.
Disclaimer: Professional installation is required for warranty validation (not included).
