by Raypak

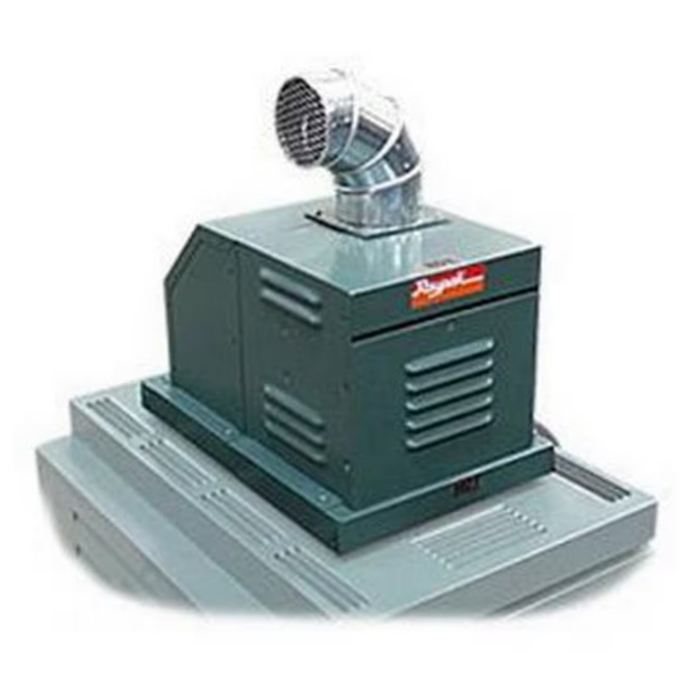

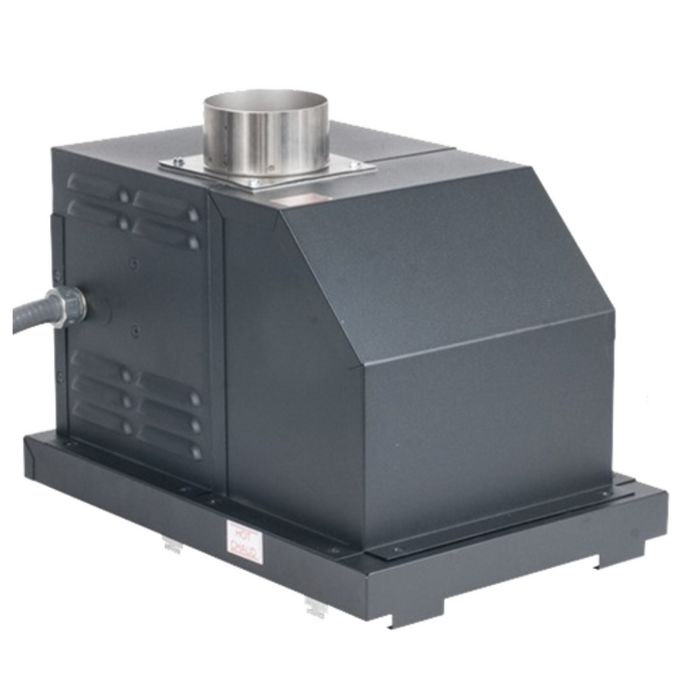

Raypak 010745 D-2 Indoor Power Vent 120V for Models 206A-408

SKU 010745
Original price $899.00 - Original price $899.00
Original price
$899.00
$899.00 - $899.00
Current price $899.00

Why shop with Vita Filters?

  • Authorized Raypak Dealer
  • Free Shipping • No Minimum
  • 30-Day Returns
  • Backed By Manufacturer's Warranty
  • 100% Satisfaction Guaranteed!
  • On-Staff Experts • Contact us

Description:

Raypak 010745 D-2 Indoor Power Vent 120V for Models 206A-408

The D-2 Power Vent assembly is a Category III mechanical draft venting system that operates with a positive vent static pressure and with a vent gas temperature that avoids excessive condensate production in the vent. All sizes are capable of relieving flue gases up to a maximum of 100 equivalent feet of vent length. All models have a 4” diameter exhaust connection and can be sidewall terminated using field-supplied cat III-certified vent material. Use the factory-supplied screened elbow as a downturned sidewall vent termination.
  • For use with all Raypak Digital models, sizes 206A – 408
  • The D-2 replaces the standard draft hood
  • Compatible for indoor or outdoor installation
  • For use with all Raypak Digital models, sizes 206A – 408. The D-2 replaces the standard draft hood
  • Certified
  • The D-2 Power Vent assembly is tested and certified to the latest edition of the American National Standard ANSI Z21.56 for pool heaters
  • Install Guide

Specifications:

  • Brand: Brand
  • Amperage: 1.95
  • Application: Pool, Spa
  • Color: Gray
  • Weight: 36 pounds
  • Finish: Powder Coated
  • Frequency Rating (Hz): 60
  • Material: Galvanized Steel
  • Voltage: 240V
  • CFM Rating: 130
  • Flue Diameter: 4 inch
  • Vent Color: Gray
  • UPC Code: 840891023623
  • Part Number: 010745

FREE SHIPPING: Usually ships in 1-2 business days. Please Note: Some items ship FREE via freight truck.

Disclaimer: Professional installation is required (not included). Proof of installation by a pool professional may be required to validate the factory warranty.

Raypak Warranty Support

Please Note: Images are for representation.
