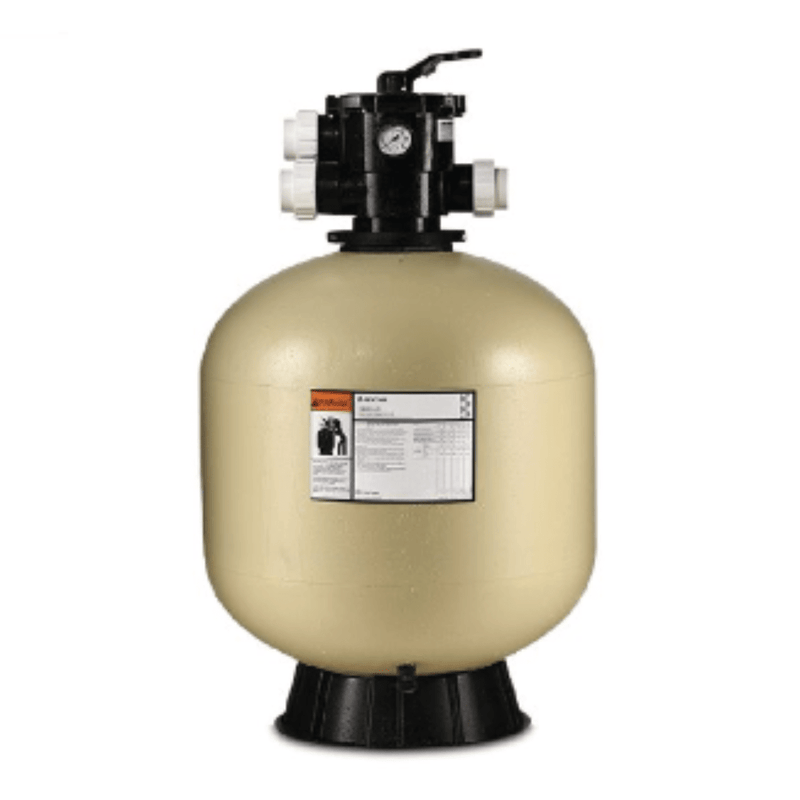

Pentair Tagelus Top Mount Sand Filter + Multiport Valve
TradeGrade
FIBERGLASS TANK WITH MULTIPORT VALVE, CLAMP STYLE
Pentair's process creates a one-piece, fiberglass-reinforced tank with superior strength and durability. Tagelus Top Mount Filters are equipped with a six-position, top-mounted multiport valve.
- Special lateral design provides superior flow characteristics and long filter cycles for economical operation
- Maximum Operating Pressure 50 psi
- Combination water and sand drain makes servicing and winterizing fast and easy
- 40, 50, and 60D models standard with plastic clamp
Note: Operating Limits - maximum continual operating pressure of 50 psi. Maximum operating water temperature (internal filter) 104°F (40°C).
- 144126 - TA40D - 19" - 1.8 Sq. Ft. - 40 GPM - 1.5" MPV
- EC-145241 - TA60D - 24" - 3.1 Sq. Ft. - 60 GPM - 1.5" MPV
- EC-145240 - TA100D - 30" - 4.9 Sq. Ft. - 100 GPM - 1.5" MPV
- 145385 - TA60D 2 - 24" - 3.1 Sq. Ft. - 60 GPM - 2" MPV
SUPPORT DOCUMENTS:
- Tagelus Fiberglass Sand Filter Brochure
- Tagelus Owner's Manual
- Tagelus Filters Replacement Parts
- Tagelus Filters
- Tagelus Filter Systems
SPECIFICATIONS:
Pentair Tagelus® 144126 TA40D Top Mount Sand Filter with 2" Valve; 1.8 SqFt, 40 gpm, 19" Diameter:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 28.6 pounds
- Filtration Area: 1.8 square feet
- Material: Fiberglass
- Tank Diameter: 19 inch
- UPC Code: 788379666774
Pentair Tagelus® 145241 TA60D Top Mount Sand Filter with 2" Valve; 3.1 SqFt, 60 gpm, 24" Diameter:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 30 pounds
- Filtration Area: 3.1 square feet
- Material: Fiberglass
- Tank Diameter: 24 inch
- UPC Code: 788379667337
Pentair Tagelus® 145240 TA100D Top Mount Sand Filter with 2" Valve; 4.9 SqFt, 100 gpm, 30" Diameter:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 78 pounds
- Filtration Area: 4.9 square feet
- Material: Fiberglass
- Tank Diameter: 30 inch
- UPC Code: 788379667320
Pentair Tagelus® 145385 TA60D Top Mount Sand Filter with 2 Inch Valve; 3.1 SqFt, 60 gpm, 24" Diameter:
- Brand: Pentair
- Application: Pool
- Commercial, Residential, or Professional: Residential
- Weight: 41.5 pounds
- Filtration Area: 3.1 square feet
- Material: Fiberglass
- Tank Diameter: 24 inch
- UPC Code: 788379853273
