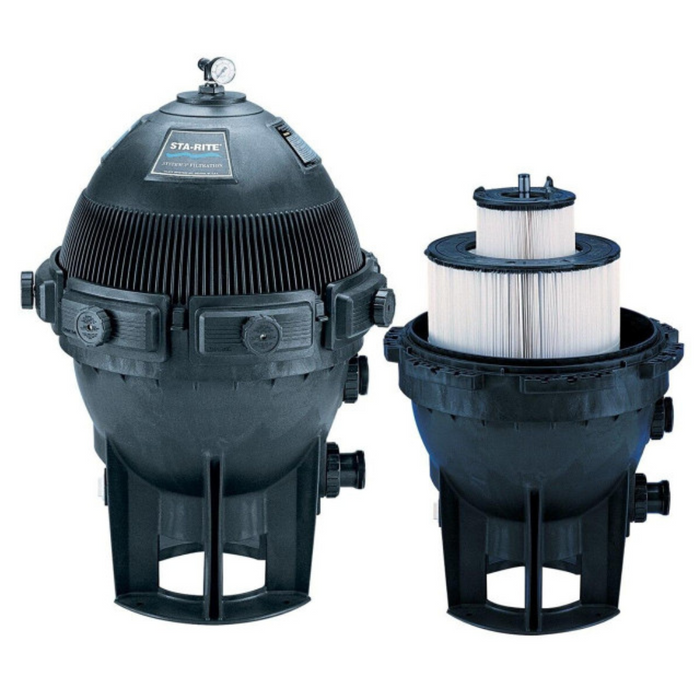

Pentair S7M120 300 Sq Ft Sta-Rite System:3™ SM Series Modular Media Filter
TradeGrade
The Pentair Sta-Rite System:3 SM Series Modular Media Filter is designed for heavy-duty use, with a higher dirt-holding capacity, greater filtration efficiency, and a modular design, making it ideal for larger pools or environments requiring less frequent maintenance.

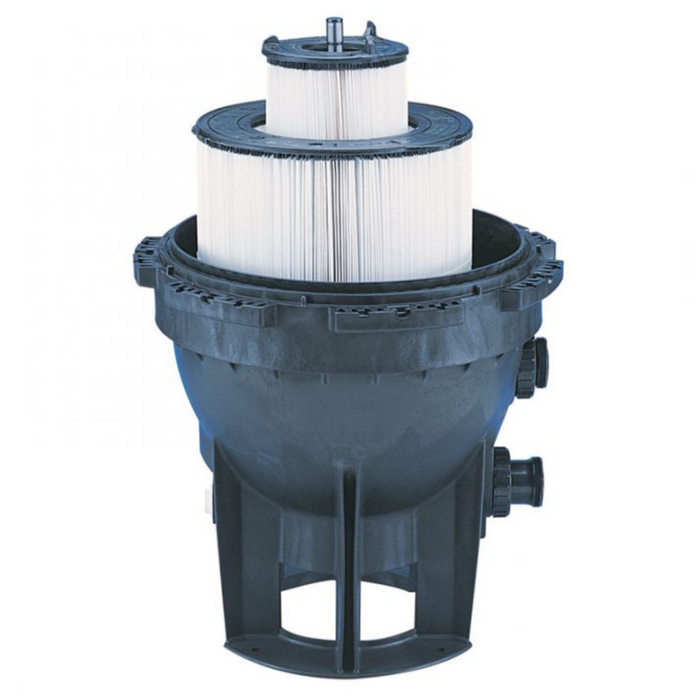

No longer using "cartridges" Sta-Rite's advanced technology has brought an entirely new class of filtration to your pool. The modular media concept incorporates the latest in media science, perfectly balanced flow, and an integral manifold design: namely, ultra-capacity filtration. This filtration concept puts carefree operations within reach. Modular filter tanks allow for quick change of filter media without changing the tank. The contemporary style and matte black finish look attractive in any pool setting.
- Typical installation—inground pools, inground hot tubs, and water features
- Durable, two-piece tank housing constructed of Dura-Glas™, the leading glass-reinforced composite resin
- The innovative balanced flow design is the standard of the industry
- Complete media coverage combined with shallow pleats means greater dirt-holding capabilities for longer filter cycles and less cleaning
- Simply hose off the elements in a matter of minutes—makes servicing a snap
- Dual drain plugs—side plug available for plumbing to waste, and bottom plug drains the entire filter
Note: No backwash valve is required.
Specifications:
- Brand: Pentair
- Application: Pool, Spa, up to 48,000 gallons*
- Shipping Dimensions: 26.5 x 27 x 47 inch
- Design Flow Rate: 100 gal/min
- Distance Between Inlet/Outlet: 7.812 inch
- Distance Inlet and Base: 17 inch
- Distance Outlet and Base: 9.19 inch
- Weight: 135 pounds
- Filtration Area: 300 square feet
- Filtration Rate: 100 GPM/ft2
- Green or Energy-Efficient Product: True
- Inlet/Outlet Sizes: 2 inch
- Maximum Flow Rate: 100 gal/min
- Maximum Working Pressure: 50 pounds per square inch
- Pipe Size: 2 inch
- Plumbing Size: 2 inch
- Product Height: 42 inch
- Product Width: 28.5 inch
- Side Clearance: 36 inch
- Standards Approvals: ANSI Standard 50 Certified
- Tank Color: Black
- Tank Diameter: 28.5 inch
- Tank Port Size: 2 inch
- Turnover 8hrs: 48000 gallon
- Vertical Clearance: 50 inch
- UPC Code: 022315122949
Note: Operating limits—Maximum continual operating pressure of 50 psi. Pool/spa (bather) applications, maximum operating water temperature (internal filter) 104° F.
Support Documents:
*Sizing Note: The gallon capacities listings are estimates only. They will vary depending on the pump size and the turnover rate. The actual number of gallons your filter can manage depends on your pump’s flow rate and the specific needs of your pool (debris load, drains, usage, etc.). You can adjust these capacities if you plan for a different turnover time (e.g., 12-hour turnover).
Need help sizing your pool? Contact us anytime - we’re here to help!
