POOL AUTOMATION THAT IS SIMPLE AND AFFORDABLE

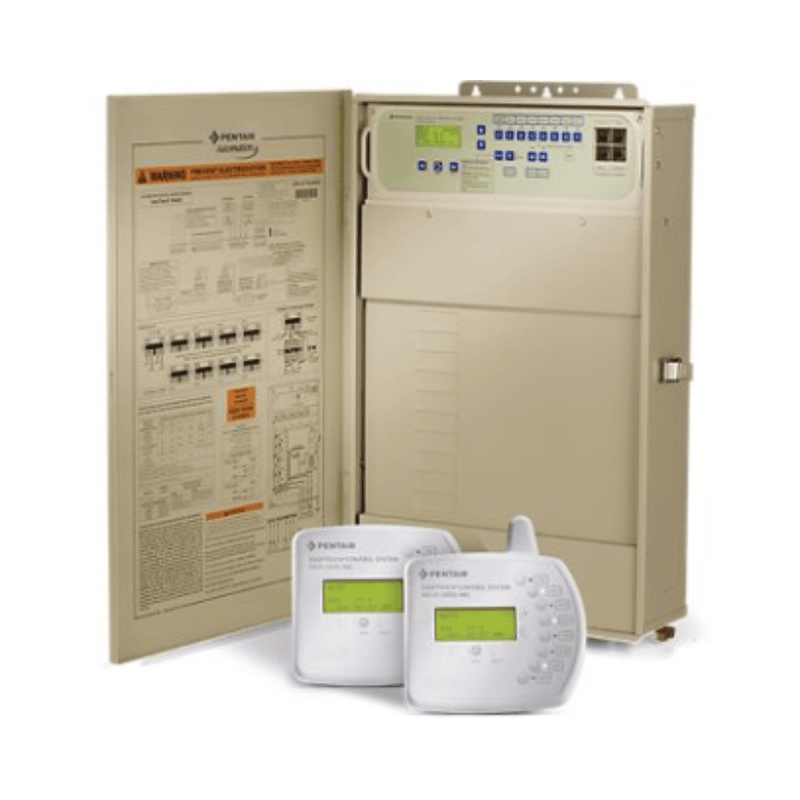

The EasyTouch Control System eliminates the inconvenience of trips to your pool equipment pad, memorizing operating sequences, opening and closing valves and resetting time clocks and thermostats. With push-button operation and clear, intuitive instructions and displays, your EasyTouch system includes all circuitry and fully programmable controls in a single Load Center installed near your pool or spa equipment. This avoids expensive wiring and installation costs to make an EasyTouch system affordable for any budget.

• Eight-Function System

• Supports variable speed or variable flow pumps, pool lighting, landscape lighting, waterfalls, fountains, heaters and more
• Include 150-amp breaker base with space for 10 1-in. breakers
• Pairs with ScreenLogic2® Interface to allow control from mobile digital devices, computers and select smart speaker devices
• Built-in diagnostics for troubleshooting and repair purposes

• UL and cUL approved
• Dimensions: 26 in. H x 17 in. W x 5.25 in. D

Specifications:

• Brand: Pentair
• Application: Inground, Pool, Spa
• Weight: 63.7 pounds
• Green or Energy-Efficient Product: True
• Includes: (8) Relays, (3) Valve Outputs, No Actuators, 8 Position Breaker Panel, Local Remote From Power Supply, Chlorine Generator, No Indoor Control, (2) Temperature Sensors
• Depth: 5.25 inch
• Height: 26 inch
• Width: 17 inch
• Standards Approvals: UL Certified, cUL Certified
