Pentair 500110 White StarGuard Main Drain 2 Pack
SKU 500110
Original price
$109.99
-
Original price
$109.99
Original price
$109.99
$109.99
-
$109.99
Current price
$109.99
Why shop with Vita Filters?
- Authorized Pentair Dealer
- Free Shipping • No Minimum
- 30-Day Returns
- Backed By Manufacturer's Warranty
- 100% Satisfaction Guaranteed!
- On-Staff Experts • Contact us
Description:

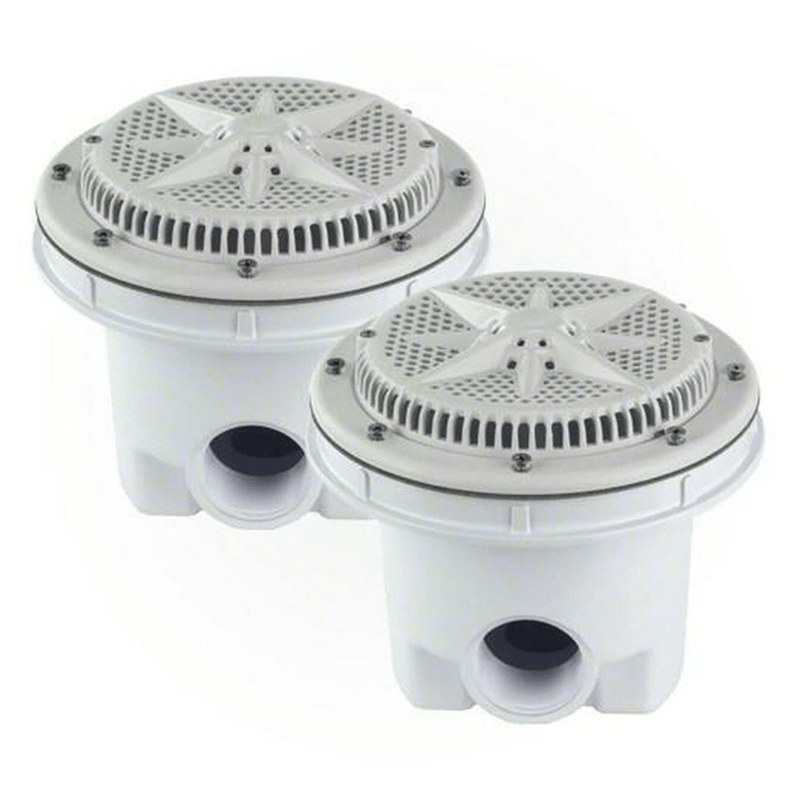

Pentair White 8" StarGuard Main Drain ABS Sump 2" Side x 1.5" Bottom Ports, Pack of 2, 500110
New StarGuard® Main Drains comply with provisions of the ANSI per ASME A112.19.8-2007 standard and the Virginia Graeme Baker Pool and Spa Safety Act. High-quality StarGuard® main drains are available in white, black, gray, and dark gray as well as a variety of configurations to fit any residential inground pool or spa installation. Review the specifications to find the right StarGuard® model for your application. StarGuard® main drains have an industry-leading 15.35 sq-in of open area for water flow. If you are in an area where water velocity through the grate is limited to 1.5 ft per sec, the StarGuard covers allow flow rates up to 72 gpm.
Specifications:
- Brand: Pentair
- Application: Inground, Pool, Spa
- Shipping Dimensions: 15.3 inch x 13.8 x 9
- Cover Open Area: 15.35 square inch
- Cover Shape: Round
- Cover Style: StarGuard
- Weight: 6 pounds
- Floor Flow Rate Measure A: 144 gal/min
- Frame Size: 8 inch
- Includes: 2 Inch Side and 1.5 Inch Bottom Ports ABS Sump with Ring and Cover (2 Pack)
- Inner Diameter: 7.6 inch
- Standards Approvals: ANSI Certified, APSP Certified
- Wall Flow Rate Measure A: 112 gal/min
- Bottom Outlet Pipe Min Size: 1.5 inch
- Commercial, Residential, or Professional: Residential
- Outer Diameter: 8.64 inch
- Side Outlet Pipe Size: 2 inch
- UPC Code: 788379790912
FREE SHIPPING: Usually ships in 1-2 business days.
Please Note: Images are for representation.
Disclaimer: Professional installation is required to validate the manufacturer warranty (not included).
