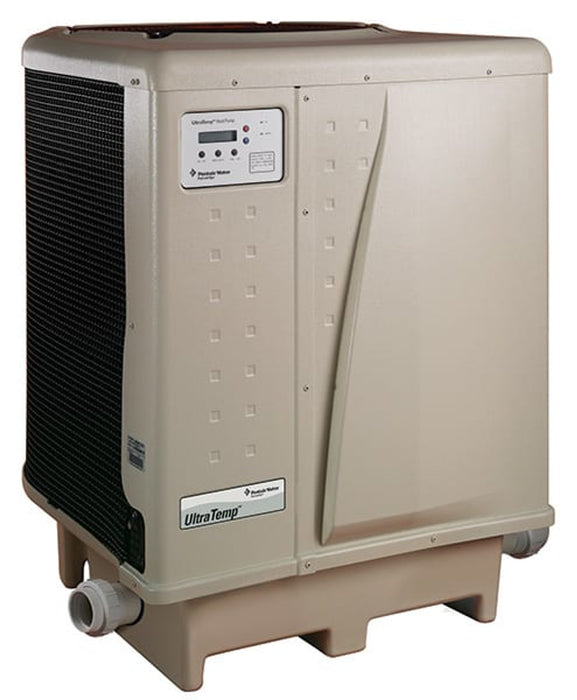

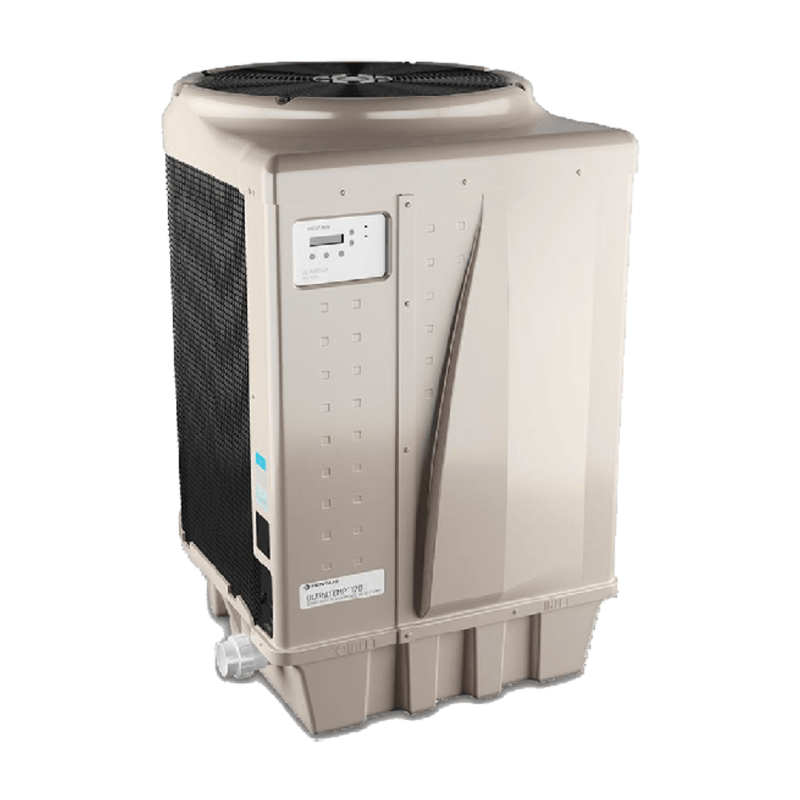

Pentair 460935 UltraTemp 120 H/C Heat/Cool Pump Almond 127K BTU

The industry’s first heat pump charged with non-ozone depleting refrigerant, R410A.

• 100% titanium heat exchanger assures corrosion-free performance for extra long life
• LCD control board displays an intuitive menu-driven read-out with easy to follow full word messages…no more codes
• AutoSet (time clock over-ride) feature monitors water temperature and turns the water circulation pump on and off as needed to maintain desired pool temperatures
• The automatic defrost feature senses refrigerant temperature and prevents freezing, allowing the heat pump to operate at even lower temperatures
• Compatible with ALL automated control packages
• Long-life corrosion-resistant plastic composite cabinet stands up to severe climates and pool chemicals
• ETL listed for safe operation

• Thermostatic Expansion Valve (TXV) controls refrigerant flow for optimum efficiency and BTU output over a wider operating range
• Highest efficiency available meets or exceeds existing codes and standards
• BTU and efficiency performance independently certified by the Air-Conditioning, Heating and Refrigeration Institute, AHRI

Support Documents:

• UltraTemp High-Performance Heat Pump
• UltraTemp Heat Pumps Installation and User's Guide
• UltraTemp Autoset Kit Manual
• How to Size a Pool Heater: BTU Quick Reference Chart

Specifications:

• Brand: Pentair
• Application: Outdoor, Pool, Spa, Up to 21,000 gallons*
• Shipping Dimensions: 43 inch x 34 x 50 inch
• BTU Output: 127000 British thermal unit

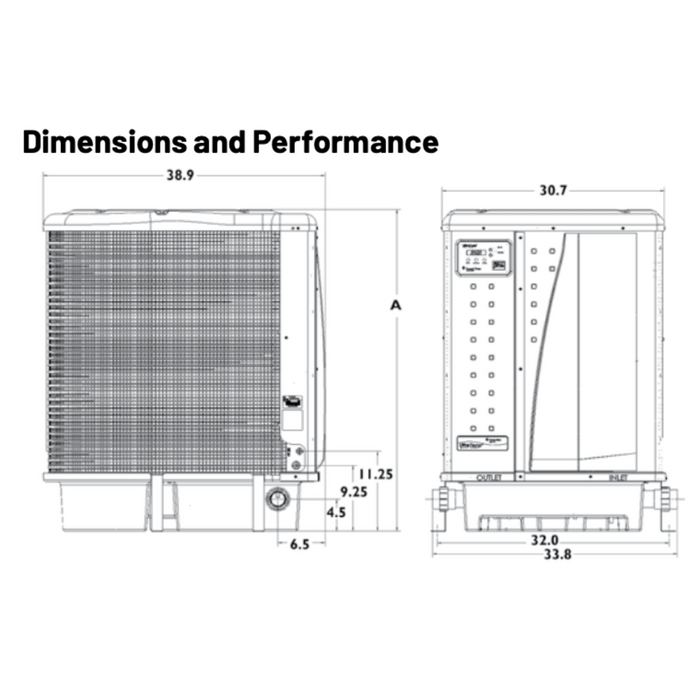

• Cabinet Depth: 33.8 inch
• Cabinet Height: 45.5 inch
• Cabinet Width: 38.9 inch
• Compressor Type: Scroll
• Control Type: Digital
• Weight: 283 pounds
• Flow Rate Max: 120 gal/min
• Flow Rate Min: 30 gal/min
• Frequency Rating (Hz): 60
• Green or Energy-Efficient Product: True
• Housing Material: Plastic
• Min Circuit Ampacity: 42 amperage
• Phase: Single
• Refrigerant Model: R410A
• Standards Approvals: AHRI Certified
• Voltage: 230V
• Commercial, Residential, or Professional: Residential
• Electrical Input: 6.6 kilowatts
• Heat Exchanger Material: Titanium
• Maximum Circuit Breaker: 50 amperage
• UPC Code: 788379789350

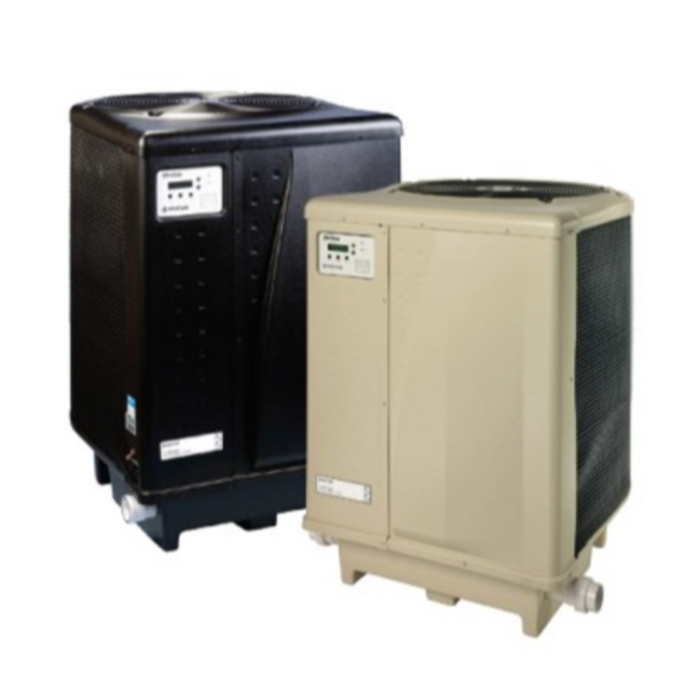

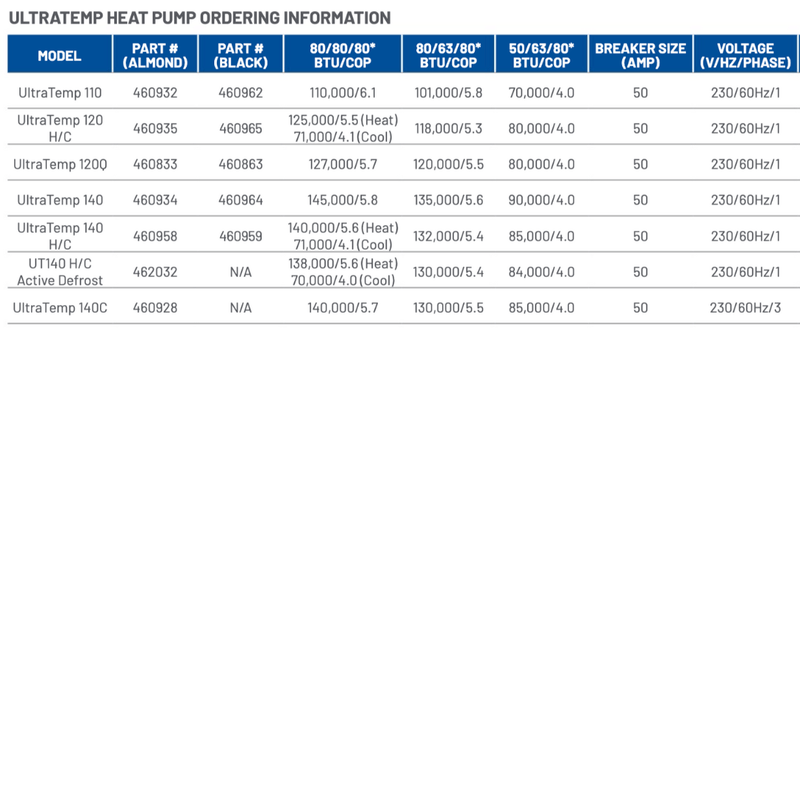

• Part Numbers: Almond 460935, Black 460965

*Please Note: The BTU rating is the minimum heating requirement for the recommended gallons shown. This is under perfect conditions with no temperature loss. Always size up if you plan to use the heater in cool weather or without a cover. Need help? Contact us anytime - we’re here to help!
