by Pentair Pool

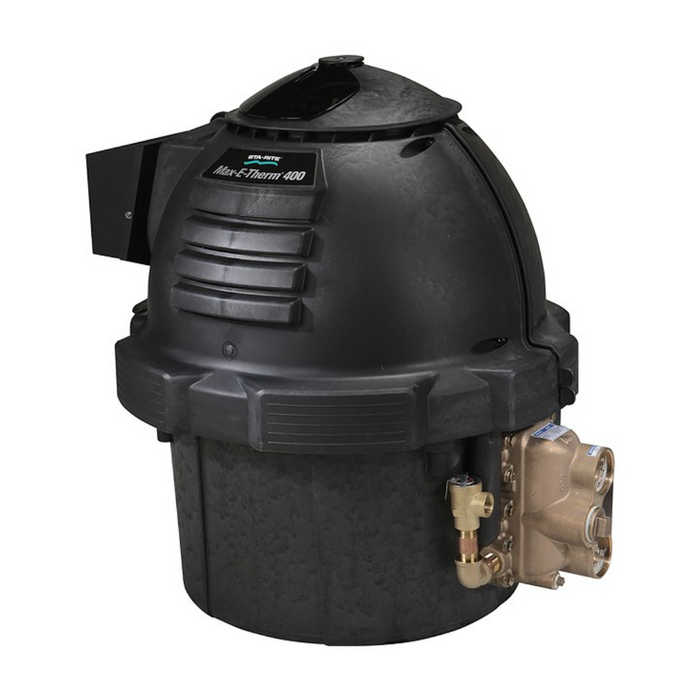

Pentair Sta-Rite 400K BTU Max-E-Therm ASME Natural Gas Heater Cupronickel 460763
SKU 460763
Original price
$5,199.00
-
Original price
$5,199.00
Original price
$5,199.00
$5,199.00
-
$5,199.00
Current price
$5,199.00
Why shop with Vita Filters?
- Authorized Pentair Dealer
- Free Shipping
- 30-Day Returns
- 100% Satisfaction Guaranteed!
- On-Staff Experts • Contact us
Description:
Ultra-High ASME® certified performance in a compact, quiet, and eco-friendly design for your commercial application.
- The bronze header design allows for easy access to the thermal regulator and bypass valve service without the use of special tools.
- Upgrades to the thermal regulator include a governing stainless steel sleeve for better wear protection.
- All internal components of the bronze header are now plastic for lightweight, corrosion, and wear protection.
- The ignition Control Module includes more diaphragm spring force for better gas control and robust operation.
- A fuller pre-mixed system with a highly efficient air and gas mixture allows for faster heat-up times.
- Efficiencies up to 84%
Support Documents:
Specifications:
- Brand: Pentair
- Application: Indoor, Outdoor, Pool, Spa, up to 50,000 gallons*
- Cabinet Depth: 31.69 inch
- Cabinet Height: 30.03 inch
- Cabinet Width: 25.15 inch
- Commercial, Residential, or Professional: Commercial
- Control Type: Digital
- Weight: 154 pounds
- Flow Rate Max: 120 gal/min
- Flow Rate Min: 120 gal/min
- Frequency Rating (Hz): 60
- Fuel Type: Natural Gas
- Green or Energy Efficient Product: True
- Phase: Single
- Standards Approvals: CSA Certified, ASME Certified
- Voltage: 120V, 240V
- BTU Input: 400,000 British thermal unit
- Tubing Material: Cupro Nickel
- UPC Code: 788379747572
Optional Accessories:
- 475002 Air Intake Kit
- 462048 Smart Heater Bypass Kit
*Please Note: The BTU rating is the minimum heating requirement for the recommended gallons shown. This is under perfect conditions with no temperature loss. Always size up if you plan to use the heater in cool weather or without a cover. Need help? Contact us anytime - we’re here to help!
FREE SHIPPING: Usually ships in 1-2 business days.
Please Note: Images are for representation.
Disclaimer: Professional installation is required to validate the manufacturer warranty (not included).
