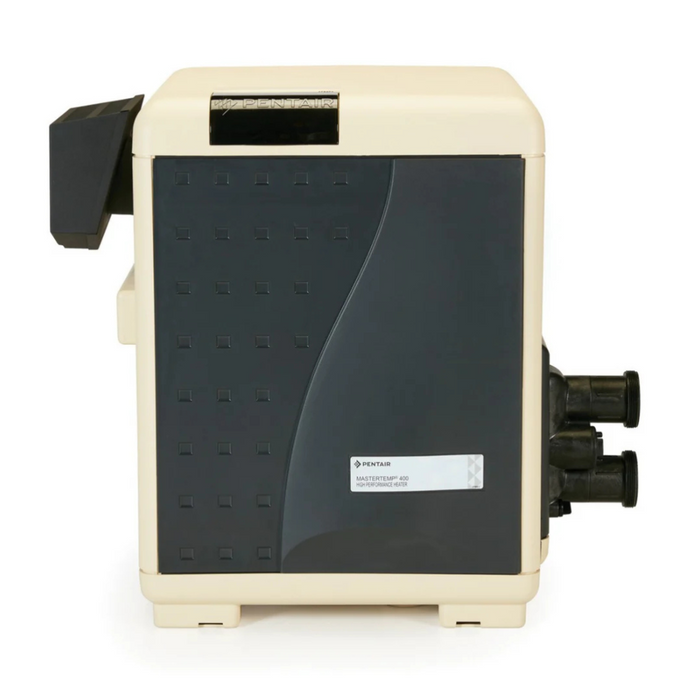

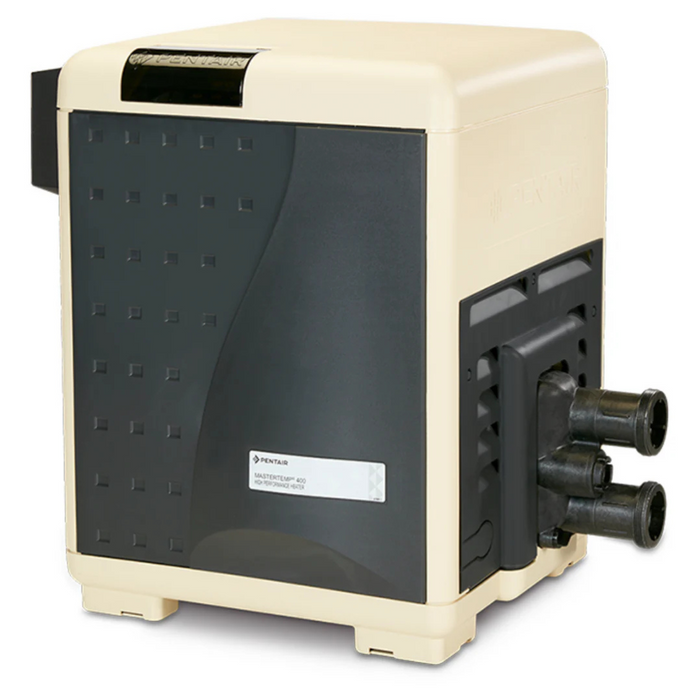

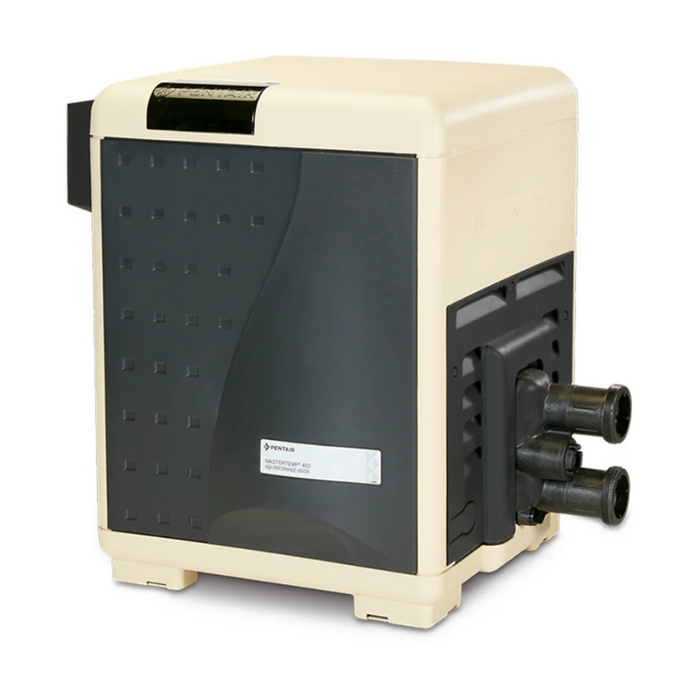

MASTERTEMP® High-Performance Heater

The MasterTemp pool heater sets the industry standard in pool heating technology, with more units sold than any other brand, renowned for its reliability and efficiency. Available in six BTU output ratings, there's a MasterTemp heater for any pool size.

Save money and energy with the MasterTemp High-Performance Heater. It now features smart capabilities and an optional energy-saving Smart Bypass Valve Kit to ensure your pool is ready whenever you are.

• Smart connectivity via the Pentair Automation Systems enables you to manage pool functions anytime, anywhere.
• The full-text digital display combines new functions and a user-friendly menu for easy operation and diagnostics.
• Digital connectivity with your pool’s automation system and an advanced ignition control module with a flame strength sensor help to ensure optimal heater performance.
• Alerts are pushed to a smart device to keep you updated on heater performance and real-time status.
• Optional Smart Heater Bypass valve control diverts water flow when the heater isn’t needed to help save up to 35% in yearly operational costs.*

Specifications:

• Brand Pentair
• Application Indoor, Outdoor, Pool, Spa, up to 25,000 gallons*
• Shipping Dimensions 36 x 25 x 30 inch
• Commercial, Residential, or Professional: Residential
• Weight 128 pounds
• Frequency Rating (Hz) 60
• Fuel Type Natural Gas
• Phase Single
• Product Weight 128 pounds
• Standards Approvals CSA Certified
• Voltage 120V, 240V
• BTU Input 200,000 British thermal unit

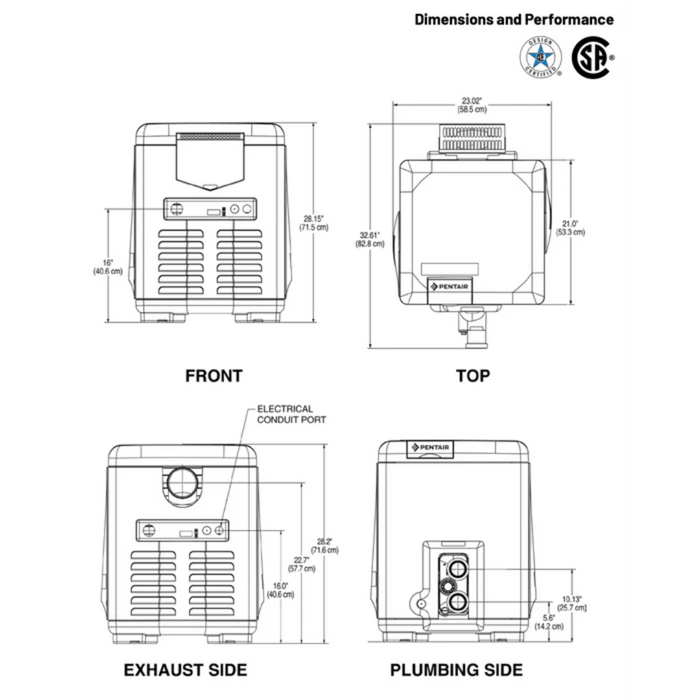

• Cabinet Depth 32.61 inch
• Cabinet Height 28.15 inch
• Cabinet Width 23.02 inch
• Control Type Digital
• Flow Rate Max 120 gal/min
• Flow Rate Min 120 gal/min
• Gas Connection 0.75 inch
• Green or Energy-Efficient Product True
• Product Depth 28.2 inch
• Product Height 21 inch
• Product Width 23 inch
• UPC Code 788379724054
• 462048 MasterTemp and Max-E-Therm Smart Bypass Valve Kit

Support Documents:

• Brochure & Brochure
• Install Guide
• Tech Info
• Auto By-Pass Valve Kit Instructions 462048

*Please Note: The BTU rating is the minimum heating requirement for the recommended gallons shown. This is under perfect conditions with no temperature loss. Always size up if you plan to use the heater in cool weather or without a cover.
