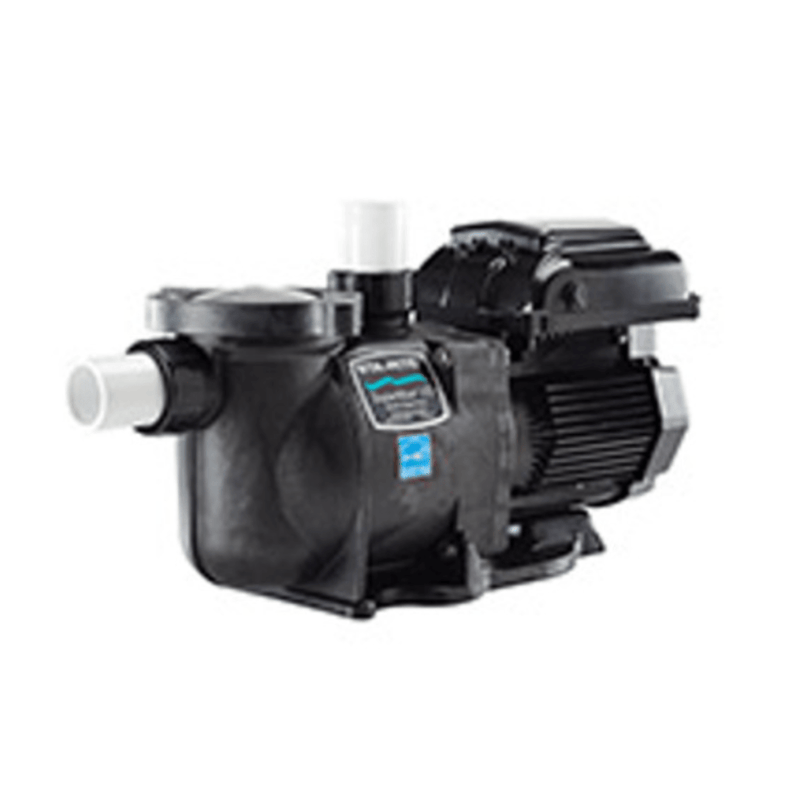

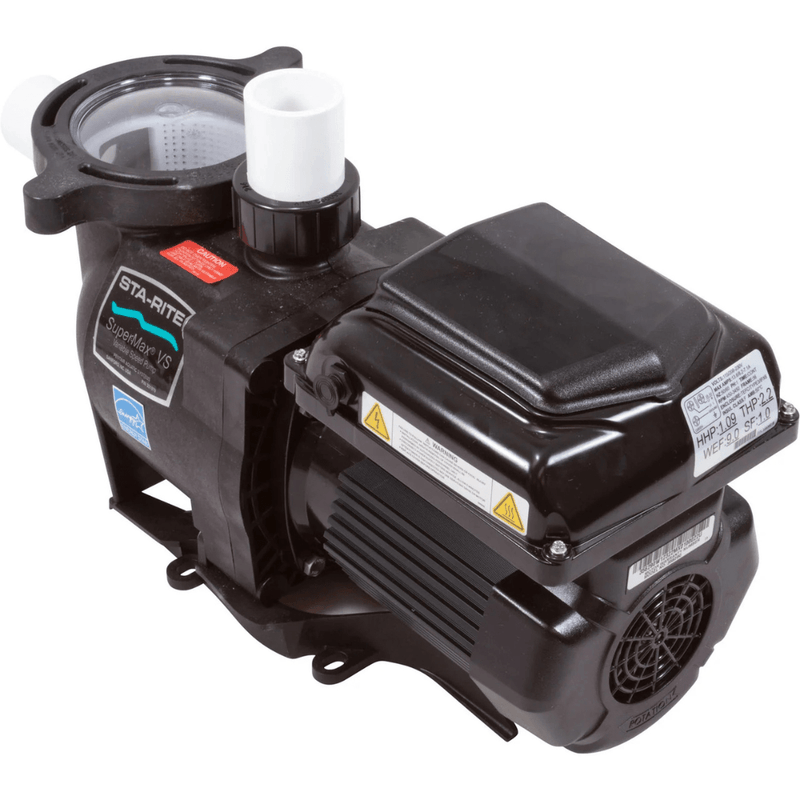

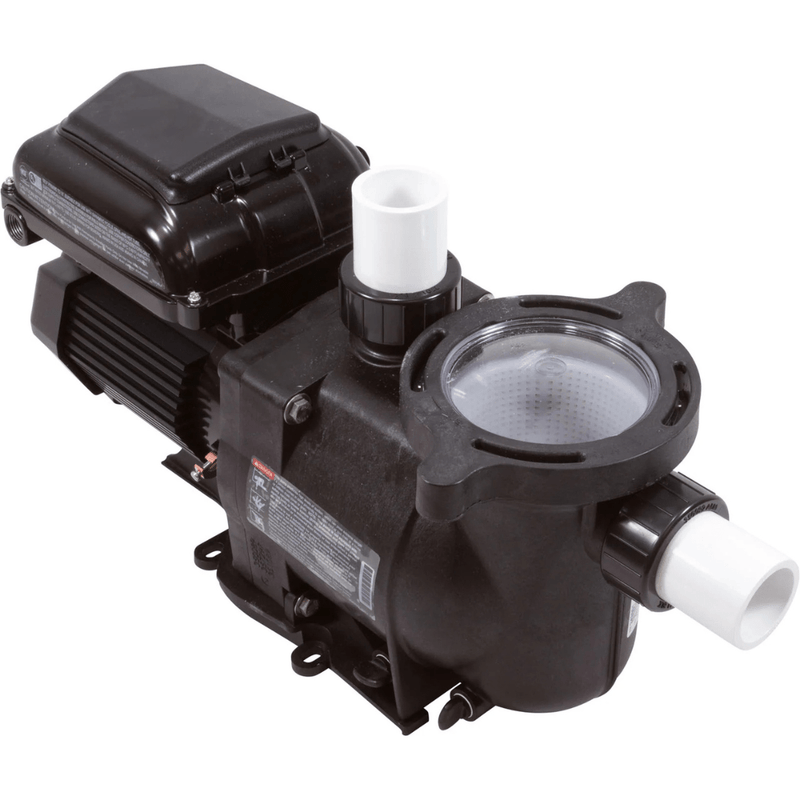

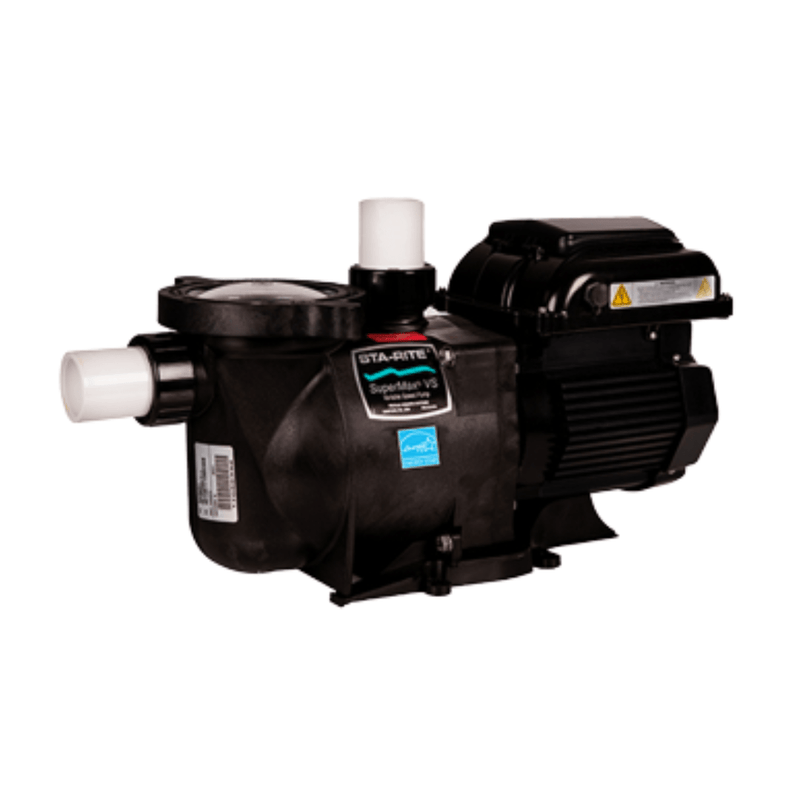

Pentair Sta-Rite SuperMax VS Variable Speed Pump 343001 1.5 HP

SKU 343001

Trade Grade Item. This manufacturer does not allow this product to be sold online.

Click here to have a sales associate contact you with similar items or local pickup options. →

Description:

A VARIABLE SPEED POOL PUMP WITH ENERGY COST SAVINGS OF UP TO 80%*

For pool owners who want to step-up to the cost savings of variable speed technology, the SuperMax VS pump is the wise choice. SuperMax VS pump is engineered for easy installation, simple operation, and trouble-free service.

  • Variable speed technology costs significantly less to operate
  • Ideal for standard pools requiring up to 1.5 hp pump
  • 110/230V and 50/60 Hz capability
  • Real-time clock with 24-hour memory retention
  • Simple, intuitive user interface is easy to program and operate
  • Easy to access electrical connections for simple installation
  • Three operating speed settings plus override capability
  • SuperMax pump by Pentair is a direct replacement for the Hayward® Super Pump® **
  • WEF 9.0 THP 2.2
  • Can be controlled remotely using digital inputs or RS485
  • Brochure
  • Install Guide

Specifications:

  • Brand: Pentair
  • Amps High Speed: 13.2
  • Amps Low Speed: 11.5
  • Application: Pool
  • Weight: 53 pounds
  • Frequency Rating (Hz): 50/60
  • Green or Energy-Efficient Product: True
  • Horsepower: 1.5 horsepower
  • Motor Speed: Variable
  • Phase: Single
  • Height: 12.5 inch
  • Width: 10.1 inch
  • RPMs Max: 3450
  • RPMs Min: 450
  • Service Factor: 1.46
  • Service Factor HP: 2.2
  • Standards Approvals: Eco-Select Certified, Energy Star Certified
  • Thrust HP: 2.2
  • Voltage: 115V, 208V, 230V
  • Port Size 1: 1.5 inch
  • Port Size 1 FIT: NPT
  • UPC Code: 788379866235
  • Part No.: 343001
