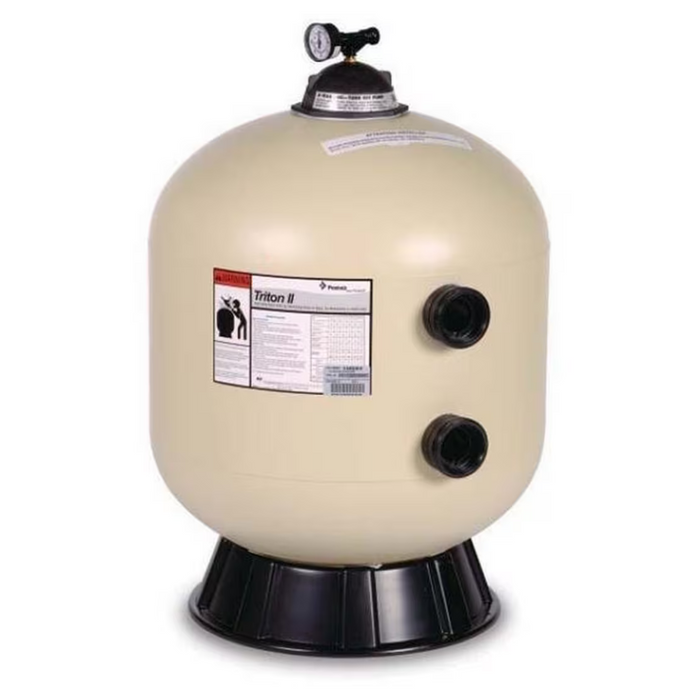

Pentair 24" 3.14 Sq Ft Triton II TR60 Side Mount Sand Filter (EC-140264)
FIBERGLASS SAND FILTER WITHOUT VALVES
The Triton® II Sand Filter, developed over 40 years of evolution, sets the industry standard for effectiveness, efficiency, and low maintenance. Its innovative internal design maintains a level sand bed for even water flow, maximizing filtration performance. With superior reliability and ease of operation, the Triton II is unmatched in dependability and operational simplicity, making it the benchmark for sand filters.
- Heavy-duty closure provides easy inspection
- Easy-to-read pressure gauge with air relief valve
- Instant access to sand and all internal parts
- Internal air bleed automatically prevents unwanted air pockets
- Combination sand and water drain makes servicing and winterizing fast and easy
Note: Operating limits—Maximum continual operating pressure of 50 psi. Maximum operating water temperature (internal filter) 104° F.
Specifications:
- Brand: Pentair
- Commercial, Residential, or Professional: Residential
- Weight: 44 pounds
- Material: Fiberglass
- Height: 35.5 inch
- Width: 24.5 inch
- Filter Media Pea Gravel: 75-pound
- Filter Media Sand Required: 250-pound
- Filtration Area: 3.14 square feet
- Sand Required: 325 pound
- Tank Material: Fiberglass
- Turnover 10hrs: 37800 gallon
- Turnover 12hrs: 45360 gallon
- Turnover 8hrs: 30240 gallon

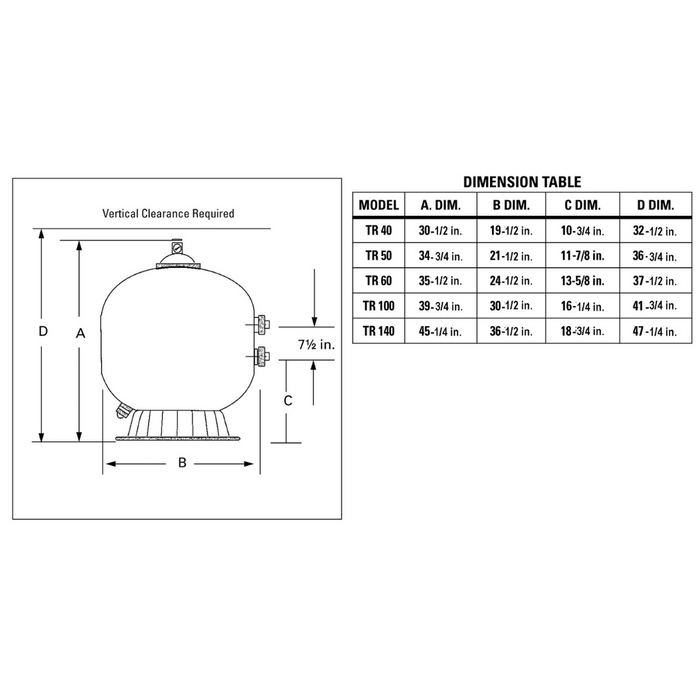

- Vertical Clearance: 37.5 inch
- Part No. TR60, TR 60, 140264, EC-140264, EC140264
Documents
*Sizing Note: The gallon capacities listings are estimates only. They will vary depending on the pump size and the turnover rate. The actual number of gallons your filter can manage depends on your pump’s flow rate and the specific needs of your pool (debris load, drains, usage, etc.). You can adjust these capacities if you plan for a different turnover time (e.g., 12-hour turnover).
Need help sizing your pool? Contact us anytime - we’re here to help!
FREE SHIPPING: Usually ships in 1-2 business days.
Please Note: Images are for representation.
Disclaimer: Professional installation is required to validate the manufacturer warranty (not included).
