Pentair 3HP IntelliFlo3 VSF Variable Speed Flow Pump + IO Relay Board 011076

SKU 011076
Original price $2,099.00 - Original price $2,099.00
Original price
$2,099.00
$2,099.00 - $2,099.00
Current price $2,099.00

Why shop with Vita Filters?

  • Authorized Pentair Dealer
  • Free Shipping
  • 30-Day Returns
  • 100% Satisfaction Guaranteed!
  • On-Staff Experts • Contact us

Description:

ENERGY SAVINGS AND SUPERIOR PERFORMANCE, ALL IN A GAME-CHANGING PUMP.

The IntelliFlo3 Variable Speed and Flow Pool Pump set a new bar for performance with built-in sensorless flow control for effortless optimum flow and aids in keeping the pool crystal clear and inviting, no matter what it requires.

  • Proprietary flow technology maintains the pool’s optimum flow.
  • Up to 90%* energy savings. Slower speed and regulated flow save energy.
  • New motor, drive, and hydraulics. Department of Energy (DOE) compliant.
  • Easy control via the Pentair Home app or optional touchscreen.
  • WEF 7.1 THP 3.0

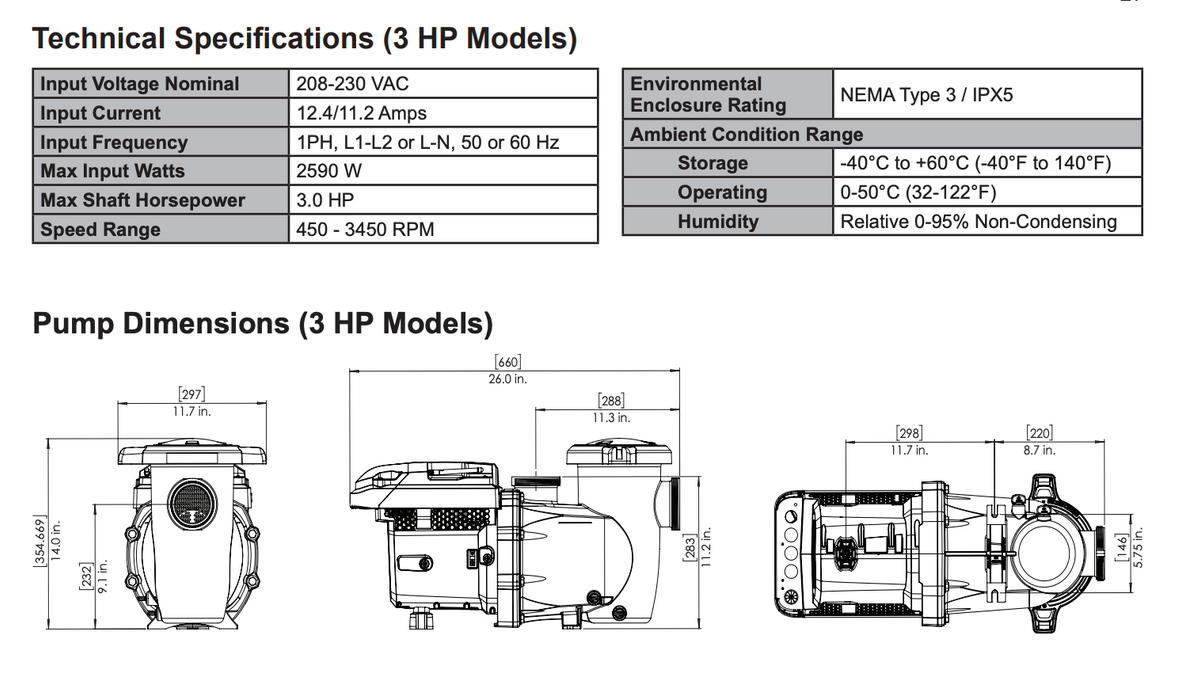

Pentair 011076 IntelliFlo3 VSF 3.0HP w/ I/O Board Specifications:

  • Brand: Pentair
  • Amperage: 12.4 amperage
  • Application: Pool
  • Color: Beige
  • Weight: 53.5 pounds
  • Flow Rate Max: 140 gal/min
  • Flow Rate Min: 20 gal/min
  • Frequency Rating (Hz): 50/60
  • Horsepower: 3 horsepower
  • Max Working Pressure: 30 pounds per square inch
  • Motor Speed: Variable
  • Standards Approvals: NSF Certified, UL Certified
  • Thrust HP: 3
  • Voltage: 230V
  • Wattage: 2590 watt
  • Cord Type: NEMA
  • Weighted Energy Factor (WEF): 7.1
  • UPC Code: 788379886134
  • Part Numbers: 011076 IntelliFlo3 VSF 3.0HP w/ I/O board

MODELS:

  • 011075 IntelliFlo3®​ VSF Pump: Perfect for users who want a high-quality pump with built-in Wi-Fi connectivity.
  • 011076 IntelliFlo3®​ VSF Pump + I/O Relay Board: Ideal for users who need to control additional devices like lights, salt cells, and other on/off equipment directly from the pump.
  • 011077 IntelliFlo3®​ VSF Pump + Touchscreen: Best for users who prefer to program pump settings directly on the pump using a touchscreen, either as a standalone option or in addition to Wi-Fi control.
  • 011078 IntelliFlo3®​ VSF Pump + I/O Relay Board and Touchscreen: Best for users who want access to all features.

Support Documents:

FREE SHIPPING: Usually ships in 1-2 business days.

Please Note: Images are for representation.

Disclaimer: Professional installation is required to validate the manufacturer warranty (not included).
