Save Energy & Enhance Pool Performance with the Pentair IntelliFlo3 Pump

Experience game-changing performance with the Pentair IntelliFlo3 Variable Speed and Flow Pool Pump. Featuring sensorless flow control technology, it maintains optimal flow for a consistently clean, inviting pool.

• Up to 90% Energy Savings: Slower speed and regulated flow reduce energy consumption.
• New Motor, Drive, and Hydraulics: DOE-compliant for efficiency and reliability.
• Easy Control: Manage settings via the Pentair Home app or optional touchscreen.
• WEF 7.1 | THP 3.0: Meets industry-leading standards for performance.

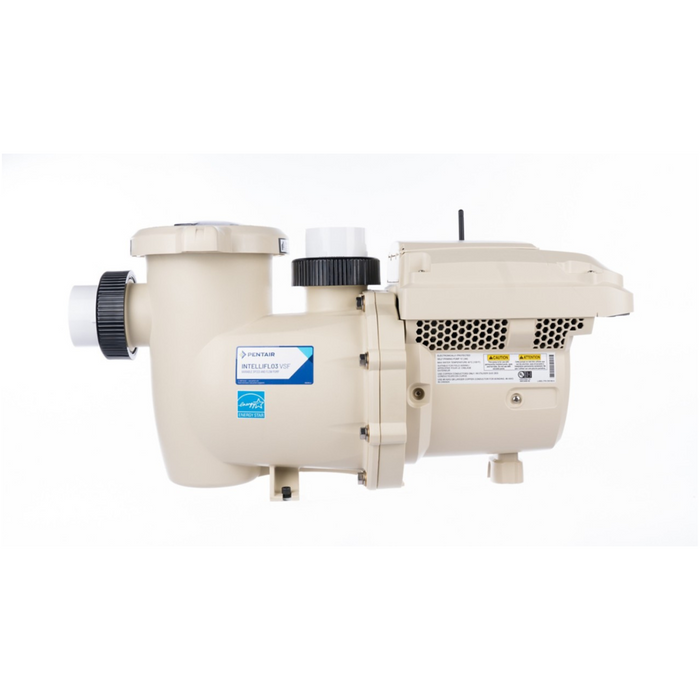

Pentair IntelliFlo3® VSF 011065 Pump 1.5 THP 115/208-230V

• Brand: Pentair
• Application: Pool
• Commercial, Residential, or Professional: Residential
• Weight: 48 pounds
• Flow Rate Max: 90 gal/min
• Flow Rate Min: 20 gal/min
• Max Working Pressure: 20 pounds per square inch
• Thrust HP: 1.5
• Port Size 1: 2 inch
• Weighted Energy Factor (WEF): 9.4
• UPC Code: 788379886103
• NOTE: 011065 does not include the I/O board or touchscreen

MODELS:

• 011065 IntelliFlo3®​ VSF Pump: Perfect for users who want a high-quality pump with built-in Wi-Fi connectivity.
• 011066 IntelliFlo3®​ VSF Pump + I/O Relay Board: Ideal for users who need to control additional devices like lights, salt cells, and other on/off equipment directly from the pump.
• 011067 IntelliFlo3®​ VSF Pump + Touchscreen: Best for users who prefer to program pump settings directly on the pump using a touchscreen, either as a standalone option or in addition to Wi-Fi control.
• 011068 IntelliFlo3®​ VSF Pump + I/O Relay Board and Touchscreen: Best for users who want access to all features.

Support Documents:

• Brochure IntelliFlo3 VSF Pool Pump
• Brochure Pentair Pump Family
• Pool Product Warranty Information
• Pool & Spa Calculators
• Variable Speed Pool Pumps Comparison
