HydroQuip CS6009-US2 Slide Series Air Control System
The HydroQuip CS6000 Slide series air control systems are the most versatile Electro-Mechanical control units with their one-of-a-kind vertically adjustable heater. Mount the heater where you need it - anywhere along the back of the control box, underneath, or remote!
- 120 Volt / 240 Volt Convertible Power
- 1.375 KW at 110 Volts / 5.5 KW at 240 Volts "SLIDE" Heater
- "VDS" Visual Diagnostics
- Lighted Smart Cords.
- Full Range Thermostat
- Ozone Circuit (120 Volt / 240 Volt)
- Light Circuit (12 Volt)
- Heater "ON" Indicator Light
- "Paint-Lock" Rust Proof Enclosure
- Detailed Owners Manual
- Detailed Wiring Diagram
- 15" Wide X 11" High X 5" Depth
- 1-Year Manufacturers Warranty Standard

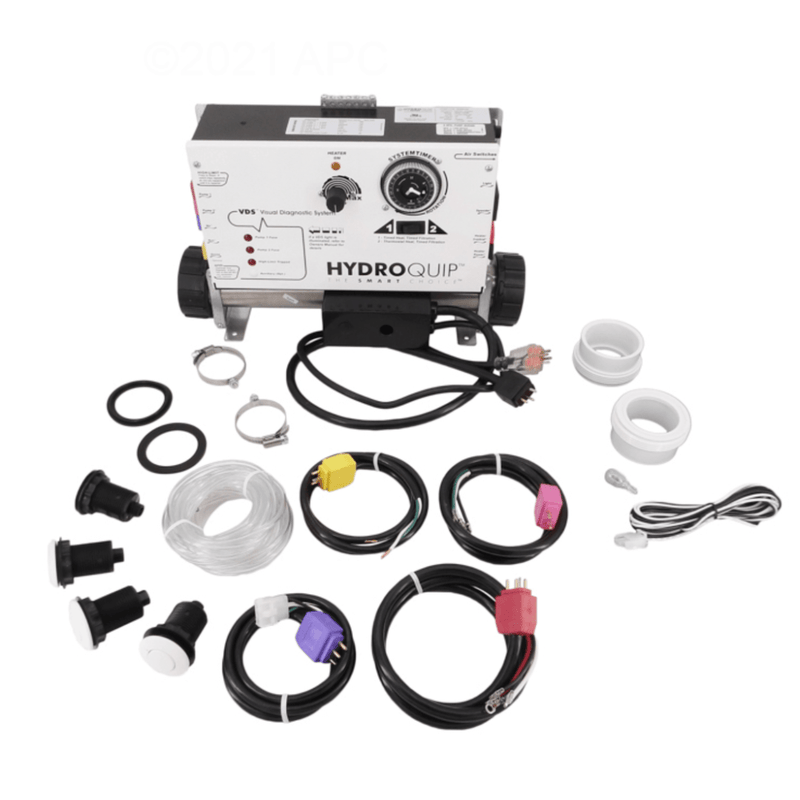

What's in the box:
- CS6009-US2 Control System
- 5.5 KW Stainless "SLIDE" Heater Assembly
- Pump, Blower, and Ozone Cords
- Air Transmitters
- Air Tubing
- Tailpieces with Gaskets
Compatible with:
- 5.5 KW Stainless "SLIDE" Heater Assembly
- One or Two Speed Pump Either 120 Volt or 240 Volt
- One single-speed pump
- Blower
- A Total of 2 Pumps and a Blower
- Ozonator (120 Volt or 240 Volt)
- Spa Light
- All Circuits are convertible to 120 or 240VAC
