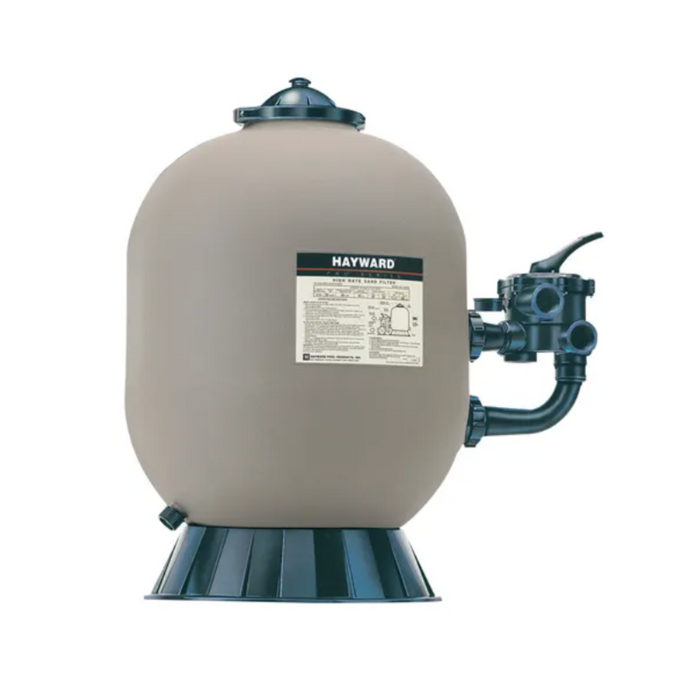

ProSeries top-mount and side-mount sand filters utilize a precision-engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for totally balanced backwashing and long-lasting performance.

• Durable corrosion-proof materials for dependable all-weather performance
• Large pressure sand/water drain for rapid winterizing or servicing
• Top-mount models are available with 7-position or 6-position VariFlo™ control valve
• Side-mount models are available with 6-position VariFlo™ or 2-position slide valve
• Ops Man

Specifications:

• Backwash Flow Rate 98
• Brand Hayward
• Cartridge No
• Design Flow Rate 98
• Drain Port Size 1.5
• Filter Type Sand
• Footprint 30-1/2 x 30-1/2"
• GTIN 610377387798
• Maximum Working Pressure 50 PSI
• Parts Warranty 3-year
• Pool Type In Ground
• Pressure Gauge Yes
• Product Dimensions 40 " x 30.5 " x 30.5 "
• Product Height 40 in
• Product Length 30.5 in
• Product Weight 76 lb
• Product Width 30.5 in
• Public Design Flow Rate 98
• Residential Design Flow Rate 98
• Sand Capacity 500 lbs
• Series Filters ProSeries
• Shipping Dimensions 48.3 " x 32 " x 32 "
• Shipping Height 48.3 in
• Shipping Length 32 in
• Shipping Weight 83 lb
• Shipping Width 32 in
• Side Clearance - Filters 18 in
• Tank Type Polymeric Resin
• Turnover 10 Hours 58800 GPM
• Turnover 8 Hours 47040 GPM
• Valve Included 1 1/2" Variflow
• Vertical Clearance Filters 18 in
