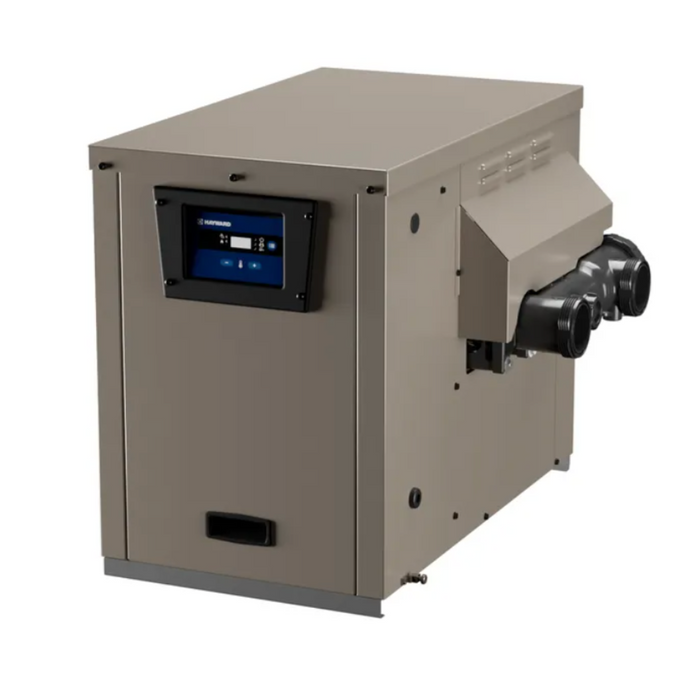

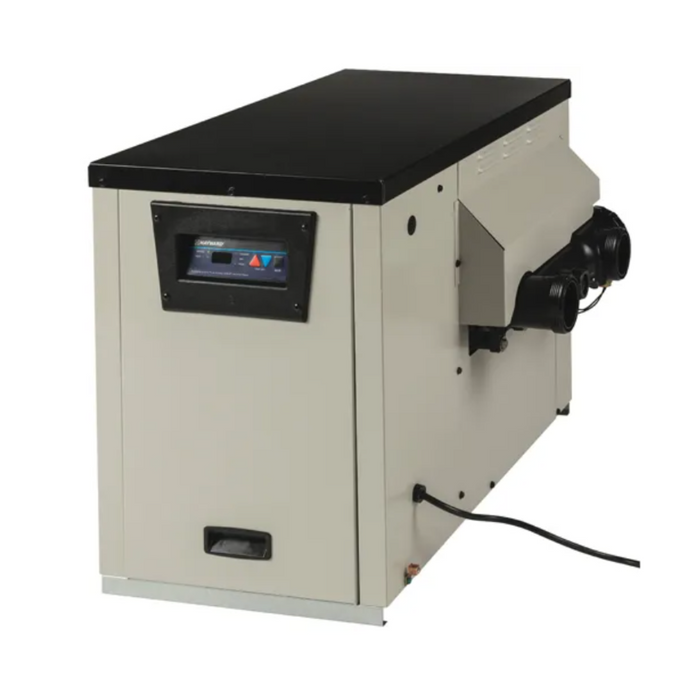

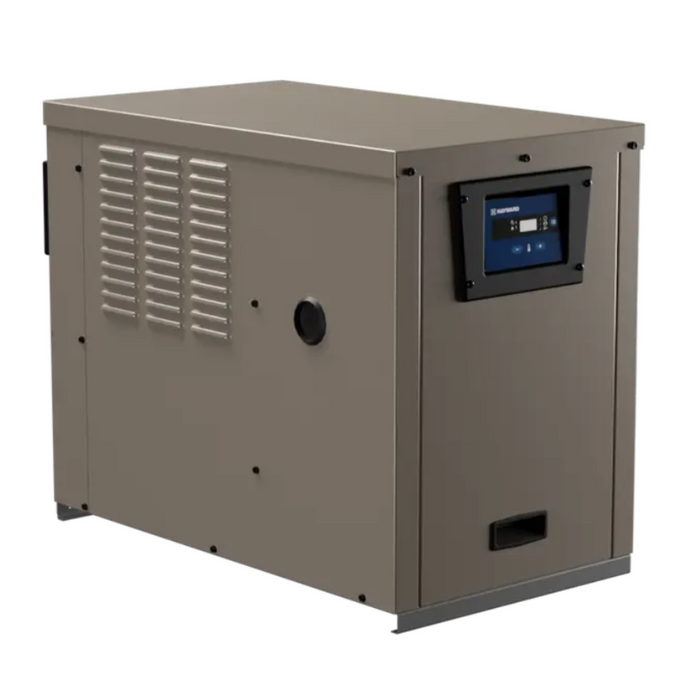

Hayward 135K BTU H-Series Propane Above Ground Heater W3H135FDP
SKU W3H135FDP
Original price
$1,949.00
-
Original price
$1,949.00
Original price
$1,949.00
$1,949.00
-
$1,949.00
Current price
$1,949.00
Why shop with Vita Filters
- Authorized Hayward Dealer
- Free Shipping
- 30-Day Returns
- 100% Satisfaction Guaranteed!
- On-Staff Experts • Contact us
Description:
The Hayward H-Series W3H135FDP 135K BTU Liquid Propane Heater for above-ground pools and spas combines reliable technology, fast heating, and easy operation. With top hydraulic performance, a user-friendly electronic panel, and corrosion protection, it ensures lasting durability.
Specifications:
- Application: Above Ground Pools, up to 17000 gallons*
- Active Defrost No
- Boost Mode No
- Brand Hayward
- Channel Open Line
- Circuit Amps 5.5000
- Cooling Capability No
- Fuel Type Propane
- GTIN 610377407120
- Heating Capacity (BTU/Hr) 135000
- Hertz 60 Hz
- Kilowatts 40 kW
- Labor Warranty None
- Low Ambient Operation No
- Maximum Fuse Breaker Size (Amps) 15.0000
- Minimum Circuit Amps 5.5 A
- Parts Warranty 2-year
- Phase Heaters 1.0000
- Pool Type Above Ground
- Product Dimensions 22.6 " x 21.4 " x 30.3 "
- Product Height 22.6 in
- Product Length 30.3 in
- Product Weight 100 lb
- Product Width 21.4 in
- Rear Clearance - Heaters 6 in
- Refrigerant Yes
- Series Heaters H Series
- Shipping Dimensions 27.3 " x 25 " x 37 "
- Shipping Height 27.3 in
- Shipping Length 37 in
- Shipping Weight 117.5 lb
- Shipping Width 25 in
- Side Clearance - Heaters 12 in
- Silent Mode No
- Thermal Efficiency 82 %
- Voltage - Heaters 120/240 Volts
- Water Flow Rate Max 125
- Water Flow Rate Min 20
*Please Note: The BTU rating is the minimum needed for the recommended gallons under ideal conditions. For cool weather or uncovered use, consider sizing up. Need help? Contact us anytime!
Free Shipping: Ships within 1-2 business days.
Disclaimer: Professional installation (not included) is required, and proof of installation by a certified technician is needed to validate the factory warranty.
