by Hayward

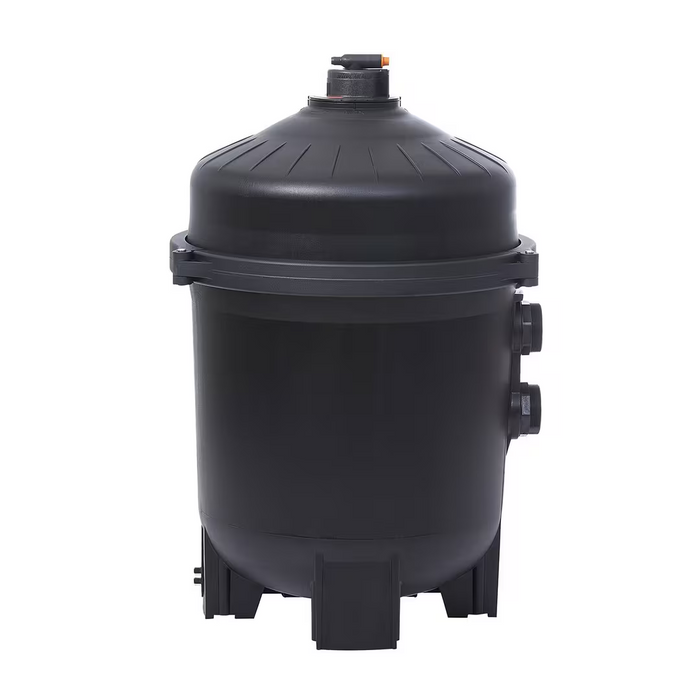

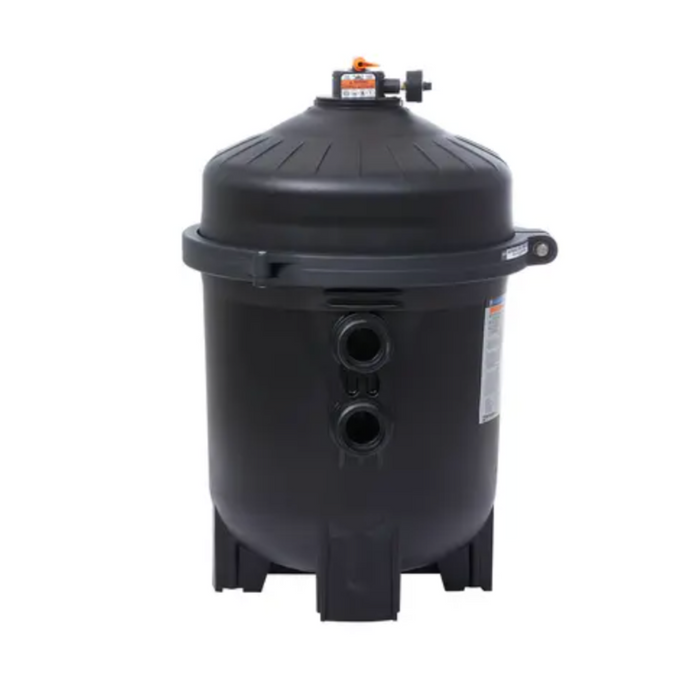

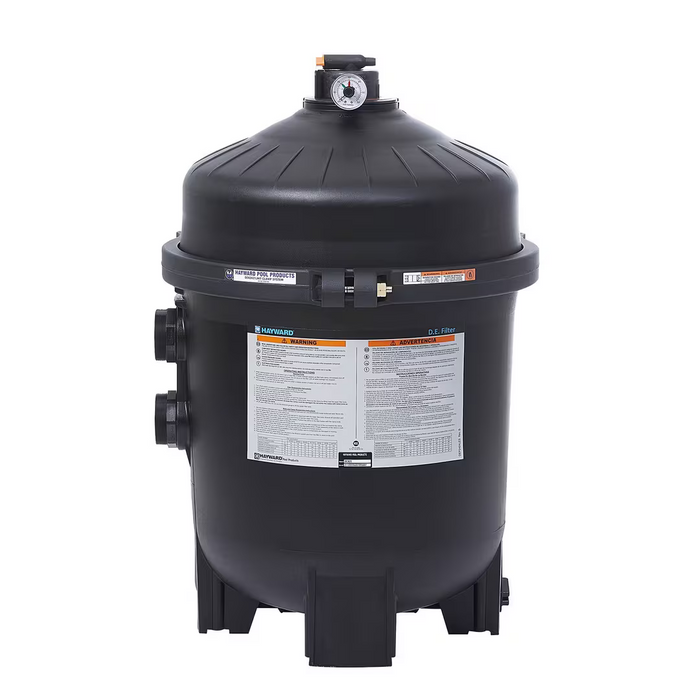

Hayward W3DE3620 ProGrid Vertical Grid D.E. Filter 36 Sq Ft

SKU W3DE3620
Original price $1,129.00 - Original price $1,129.00
Original price
$1,129.00
$1,129.00 - $1,129.00
Current price $1,129.00

Why shop with Vita Filters

  • Authorized Hayward Dealer
  • Free Shipping • No Minimum
  • 30-Day Returns
  • Backed By Manufacturer's Warranty
  • 100% Satisfaction Guaranteed!
  • On-Staff Experts • Contact us

Description:

The Hayward W3DE3620 Pro-Grid 36 sq. ft. D.E. Pool Filter provides the highest level of filtration. The Hayward Pro-Grid is capable of filtering out particulate as small as 5 microns. That's the same size as a human red blood cell.

The Hayward Pro-Grid W3DE3620 uses a set of grids coated in pool-grade diatomaceous earth. The set of grids consists of 7 full grids 18" in length and 1 partial grid 18" in length. The Pro-Grid tank is made with glass-reinforced thermoplastic that enhances durability and product life. It uses a manual air relief valve that eliminates air buildup in the tank rather than having it force back thru the system.

A 1-1/2" drain is used for quick drainage, and a one-piece flange clamp rests securely around the tank, securely fastening each half tightly together. To remove the W3DE3620 requires a minimum of 50.1" vertical clearance. Before removing the top lid, it is suggested to backwash the filter to discharge the contaminated DE powder.

  • Filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions
  • High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
  • Heavy-duty, tamper-proof, one-piece flange clamp securely fastens tank top and bottom and allows quick access to all internal components
  • Please Note: Valve is sold separately
  • Compatible with valves: SP0740DE (Selecta-Flo 2" SKT), SP0710XR50 (Vari-Flo 1 1/2" NPT), SP0715XR50 (Vari-Flo 2" NPT - Optional), SP0410X5025 (Slide Valve 2" SKT - Optional)

Specifications:

  • Brand: Hayward
  • Part Number: ProGrid® 36 Sq Ft W3DE3620 DE3620
  • UPC: 0610377387873 / 610377387873
  • Cartridge: No
  • Design Flow Rate: 90
  • Effective Filtration Area: 36 SQFT
  • Filter Type: Diatomaceous Earth D.E. DE
  • Parts Warranty: 3-year
  • Pool Type: In Ground
  • Pressure Gauge: No
  • Product Dimensions: 34.5 " x 24 " x 24 "
  • Product Height: 34.5 in
  • Product Length: 24 in
  • Product Weight: 65 lb
  • Product Width: 24 in
  • Public Design Flow Rate: 72
  • Residential Design Flow Rate: 90
  • Series Filters: ProGrid
  • Shipping Dimensions: 35.7 " x 24.6 " x 23.1 "
  • Shipping Height: 35.7 in
  • Shipping Length: 23.1 in
  • Shipping Weight: 66 lb
  • Shipping Width: 24.6 in
  • Replacement Filter: DEX3600DC Filter Element Cluster Assembly (Complete set of elements, collectors, locators, manifold, etc.)

Support Documents:

Common Questions:

What are the dimensions of the tank?

    • Tank Dimensions: (DxH) 24" x 34-1/2"
    • Weight: 66 lbs

How much DE do I add?

    • The W3DE3620 Pro-Grid uses 4-1/2 lbs of DE.

What is the max GPM flow rate?

    • The max GPM flow rate is 72 GPM.

What does Hayward W3DE3620 come with?

    • The Hayward W3DE3620 comes with a tank, one-piece flange clamp, air relief valve, and threaded bulkheads.

Does the Hayward Pro-Grid come with a backwash valve?

    • No. The W3DE3620 does not come with a backwash valve. For a multi-port valve option, we suggest item number SP0715XR50 for 2" plumbing and SP0710XR50 for 1.5" installations. For a side-mount push-pull valve, we suggest item number SP0410X502S.

What is the warranty for the Hayward W3DE3620?

    • Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
    • Please note: Filter tank color may vary

FREE SHIPPING - Usually ships in 1-5 business days.

Hayward Warranty Support

Disclaimer: Professional installation is required (not included). Proof of installation by an industry technician is required to validate the factory warranty.

*Please Note: Images are for representation.
