Description:

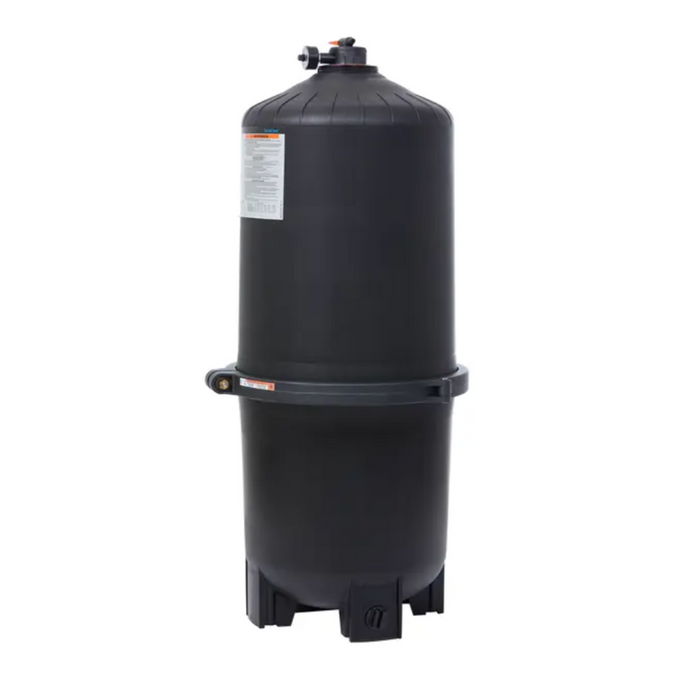

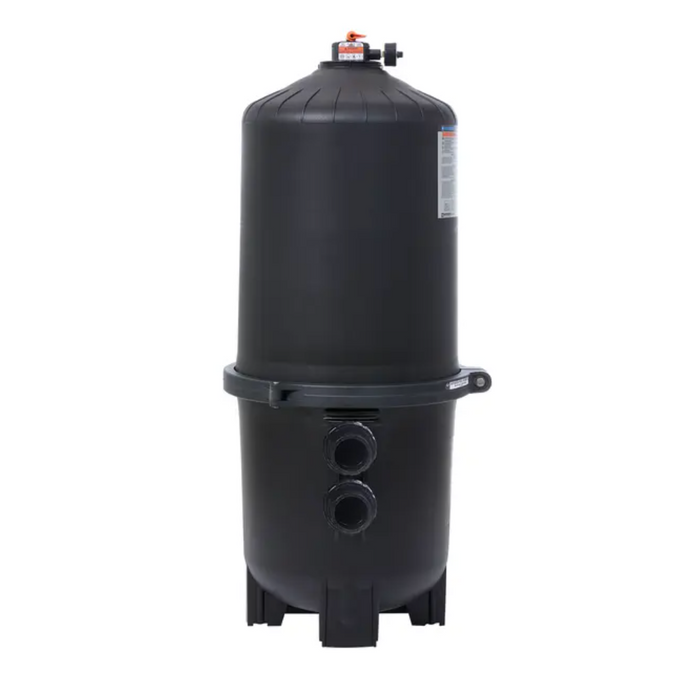

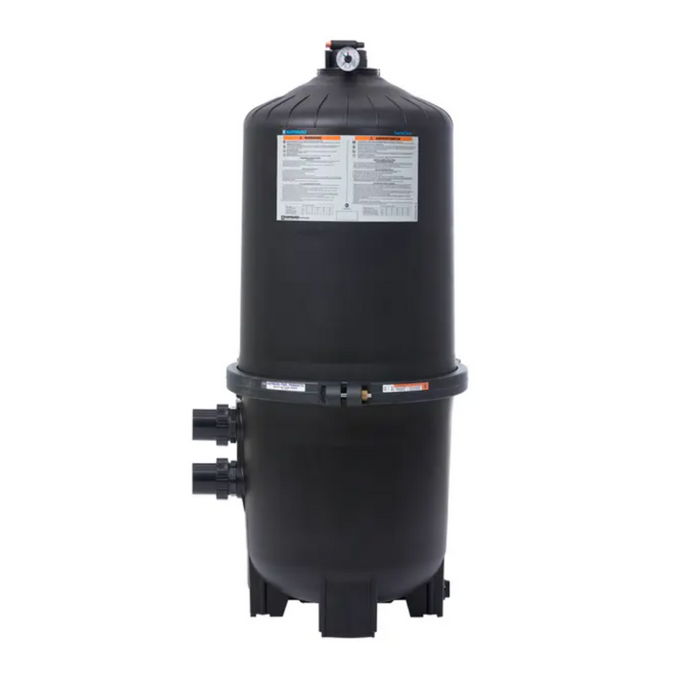

The Hayward W3C5030 SwimClear 525 sq. ft. Cartridge Pool Filter is a 4-cartridge filtration system used on inground pools. Capable of filtering particles as small as 30 microns, this means the filter is capable of pulling everything out that you can see with the human eye. The glass-reinforced co-polymer high-strength tank, one-piece clamp, and 2" black bulkhead unions enhance its durability and ease of installation.

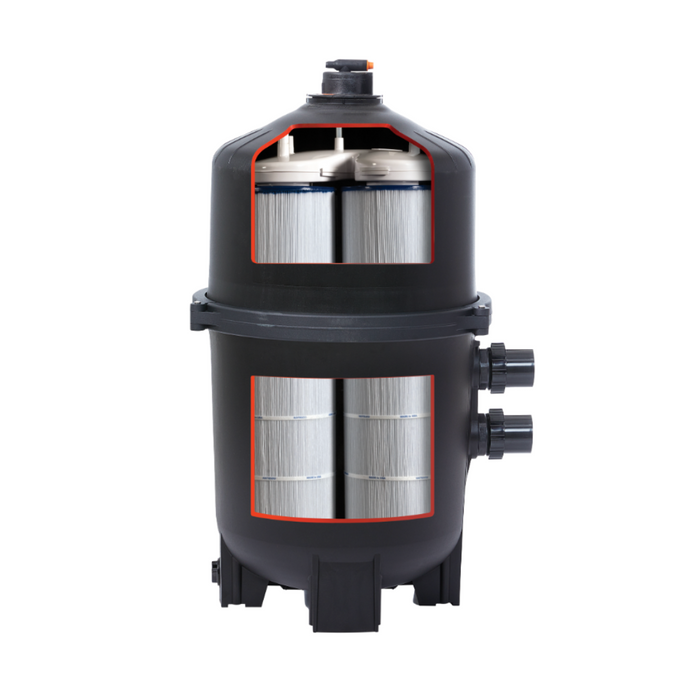

The Hayward SwimClear W3C5030 one-piece clamp design allows for easy removal and convenient access to each of the four cartridge filters. Internal air bleeding prevents air build-up from occurring, and its 1-1/2" drain ensures full draining during winterization. The Hayward W3C5030 SwimClear keeps pools sparkling and requires less maintenance for longer, better performance. Requires 68-1/2" vertical clearance for installation.
Specifications:
- Brand: Hayward
- Part Number: SwimClear 525 Sq Ft W3C5030 (C5030 Replaced by W3C5030)
- UPC: 0610377387927 / 610377387927
- Cartridge: Yes
- Clearance For Head Removal: 18 in
- Design Flow Rate: 150
- Drain Port Size: 1.5
- Effective Filtration Area: 425 SQFT
- Filter Type: Cartridge
- Footprint: 26 x 26 INCH
- Number Of Filter Elements: 4 (included)
- Parts Warranty: 3-year
- Pool Type: In Ground
- Pressure Gauge: Yes
- Product Dimensions: 40.5 " x 24 " x 24 "
- Product Height: 40.5 in
- Product Length: 24 in
- Product Weight: 69 lb
- Product Width: 24 in
- Public Design Flow Rate: 150
- Residential Design Flow Rate: 150
- Series Filters: SwimClear
- Shipping Dimensions: 41.8 " x 24.6 " x 23.1 "
- Shipping Height: 41.8 in
- Shipping Length: 23.1 in
- Shipping Weight: 83 lb
- Shipping Width: 24.6 in
- Side Clearance - Filters: 18 in
- Tank Type: GFR
- Turnover 10 Hours: 90,000 GPM
- Turnover 8 Hours: 72,000 GPM
Support Documents:
Common Questions:
What are the dimensions of the Filter?
- Tank Size (DxH) 24" x 43-1/2"
- Approx. Weight 92 lbs
What comes with the W3C5030?
- The W3C5030 will come with four brand new cartridges, two 2" unions for installation, the tank body, a one-piece clamp assembly, an air relief valve, and a 3-year manufacturer warranty.
Does this filter need to be backwashed?
- No, The filter cartridges are cleaned manually every 4 months with the garden hose or cartridge filter cleaning solution.
What is the max flow rate for the Hayward W3C5030?
- The Hayward W3C5030 has a 150 GPM max flow rate.
What warranty does the W3C5030 carry?
- Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
*Sizing Note: The gallon capacities listings are estimates only. They will vary depending on the pump size and the turnover rate. The actual number of gallons your filter can manage depends on your pump’s flow rate and the specific needs of your pool (debris load, drains, usage, etc.). You can adjust these capacities if you plan for a different turnover time (e.g., 12-hour turnover).
Need help sizing your pool? Contact us anytime - we’re here to help!
FREE SHIPPING: Usually ships in 1-2 business days.
Disclaimer: Professional installation is required (not included). Proof of installation by an industry technician is required to validate the factory warranty.
