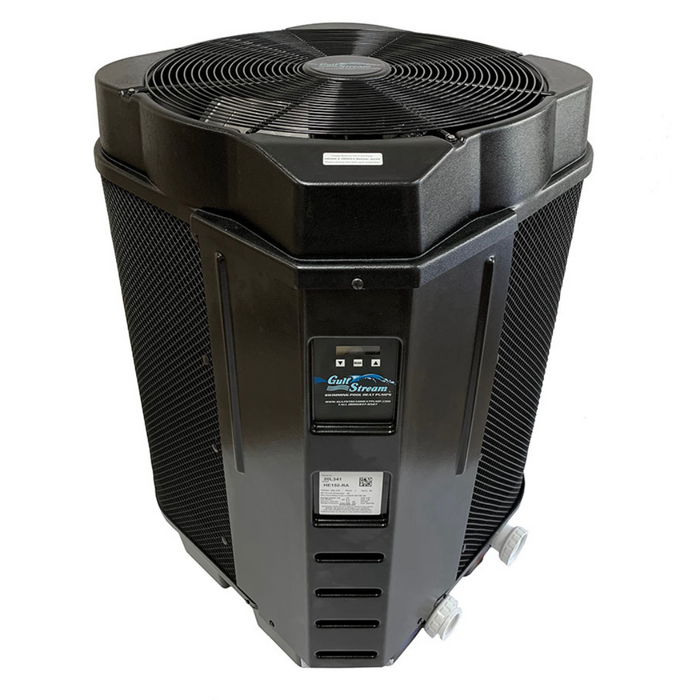

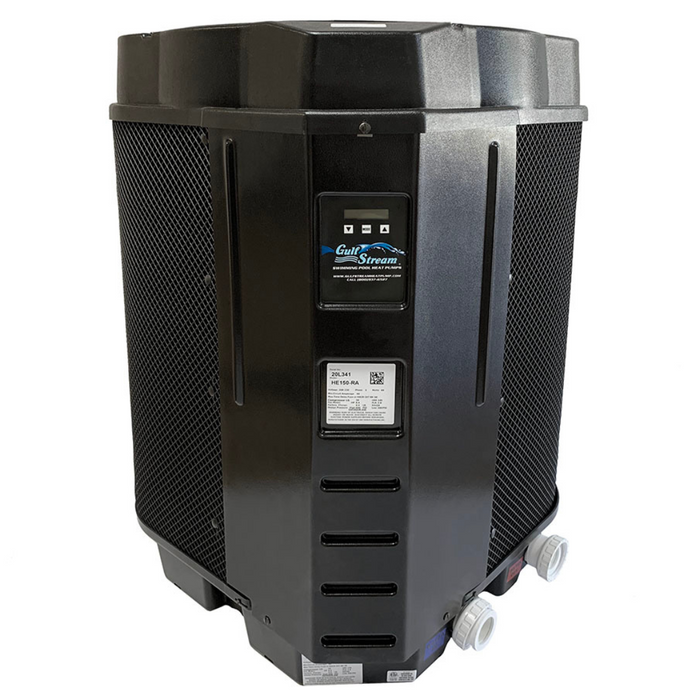

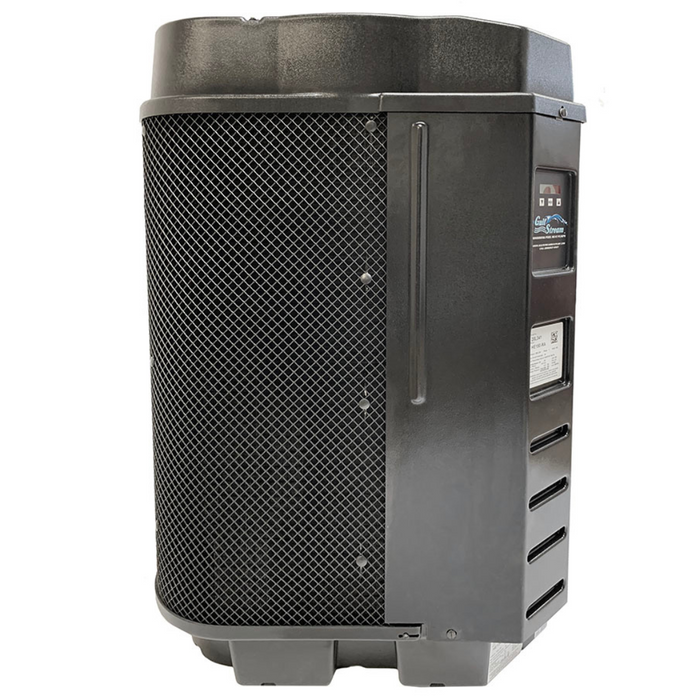

Introducing the HE 125 RA heat pump by Gulfstream—a top-of-the-line, exceptionally quiet pool heating solution designed for maximum efficiency. This model ranges from 122,000 to 125,000 BTUs and features a cutting-edge digital control board for unparalleled customization.

With its user-friendly interface, maintaining optimal pool temperature is effortless. The innovative even heat technology ensures consistent heating throughout the day.

Simply set your desired temperature and let the HE 125 RA do the rest! Its intuitive LCD screen and easy-to-use 3-button control panel make operation a breeze. Plus, it seamlessly integrates with all automation systems for added convenience.

WARRANTY: 2 Year Labor & 10 Year Parts

Features:

• Titanium Turbo Heat Exchanger
• Efficient Scroll Compressor
• Super-Quiet 8 Pole Emerson Fan Motor
• Higher efficiency in colder weather
• Quiet – as low as 56 decibels at full operation
• No-Rust ABS Cabinet
• Digital Diagnostic LCD Display reads in real words
• Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
• Patented Refrigerant Metering System
• 2” Water flow - no need for an external bypass
• Plumbing located out of the way
• Compatible with all remote control systems
• R-410A Refrigerant is environmentally friendly
• Includes standard 2-year labor warranty
• Part Numbers: HE125-R-A, HE125-RA, HE125RA, HE125 RA, HE 125 RA
• Spec Sheet
• Product Brochure

Specifications:

• Brand: Gulfstream
• Model Number: HE125-R-A
• COP 80/80/80: 6.1/122,000
• Minimum Circuit Ampacity: 37
• Main Time Delay Breaker: 50
• Average Running Amps: 29.7
• Voltage: 208-230
• Phase: 1
• Hertz: 60
• Plumbing Size: 2" Union
• Min/Max Flow Rate: 30-70
• Recommended Flow: 45
• Fan Motor: 1/3 HP
• Fan Load Amperage: 1.8
• Fan Speed RPM: 825
• Compressor Type: Scroll
• Compressor RLA: 26.9
• Compressor LRA: 145
• Refrigerant: R410A
• Unit Weight: 234 lbs
• Shipping Weight: 269 lbs
• Unit Dimensions: 31"x31"x42"
• Foot Print: 31"x31"
• Shipping Dimensions: 33"x31"x47"
• AHRI TestingCertification: 3694129

As a rule of thumb, here are suggestions based on pool sizes under standard conditions:

• HE110 – (Up to 15,000 gallons or 450 square feet)
• HE125 – (Up to 23,000 gallons or 650 square feet)
• HE150 – (Up to 27,000 gallons or 800 square feet)
