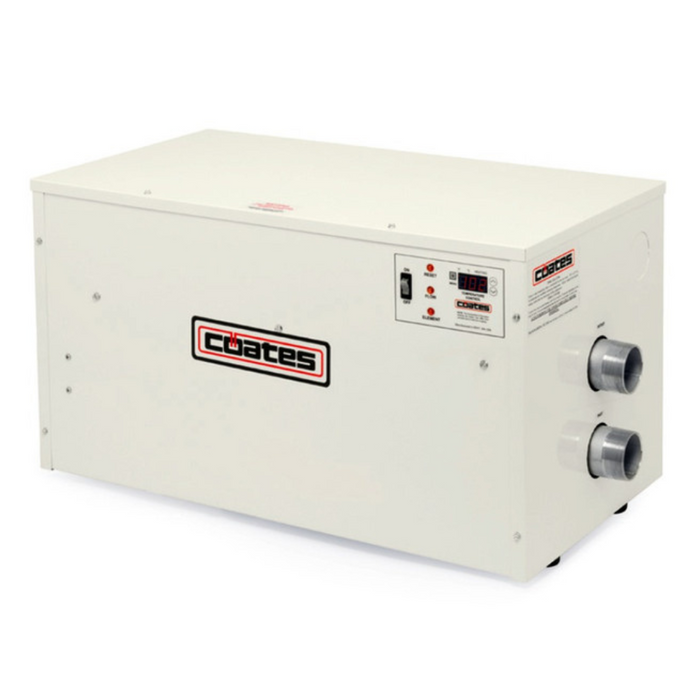

Coates CPH Series Electric Pool Heater 24KW, 208V, 67A, 3 Phase, 32024CPH

Coates CPH Series Electric Pool Heater 24KW, 208V, 67A, Three Phase, 32024CPH

Upgrade your pool heating system with the Coates CPH Series Electric Pool Heater (model 32024CPH), offering 24KW of reliable power for optimal performance. This heater is designed for use with a three-phase, 208V, 67A electrical system, ensuring efficient and seamless operation. It now includes a digital thermostat for more precise pool water temperature control, alongside the durable Incoloy heating elements found in the 12-18KW models.

Built to last, the heater features a stainless steel tank and a flow switch to prevent dry operation, ensuring durability and corrosion resistance. It measures 24”L x 12”W x 13”H and weighs 68 lbs, making it a compact yet powerful option for both indoor and outdoor installations.

Key Features:

• Incoloy heating elements for enhanced durability
• Digital thermostat for precise temperature control
• Manual reset high-temperature limit
• Flow switch for safety against dry operation
• 1-1/2″ male NPT water connections
• Stainless steel tank for corrosion resistance
• Heavy-duty contactors
• Indicator lights for element, flow, and high-temperature status
• Element fusing on units over 48 amps

Technical Specifications:

• Dimensions: 24”L x 12”W x 13”H (68 lbs)
• Minimum Flow Rate: 20 GPM
• Maximum Flow Rate: 80 GPM
• Power Supply: Three-phase
• UL Listed for indoor/outdoor installation

Detailed Specifications:

• Amperage: 67 A
• Voltage: 208 V
• Maximum Breaker Size: 90 A
• Water Connection: 1-1/2" MNPT
• Heat Output: 24 KW
• Wire Size: 3 AWG
• Cabinet Dimensions: 24" (H) x 12" (W) x 13" (D)
• Flow Rate: 20 - 80 GPM

Please Note: Coates heaters are made to order. Please expect a 4-6 week lead time. We will provide an estimated shipped date at the time of order.
