Coates 15ILS ILS Series In-Line Spa Heater 1.5kW 120 Volts

SKU 1.5ILS
Original price $409.99 - Original price $409.99
Original price
$409.99
$409.99 - $409.99
Current price $409.99

Why shop with Vita Filters?

  • Authorized Coates Dealer
  • Free Shipping • No Minimum
  • Backed By Manufacturer's Warranty
  • 100% Satisfaction Guaranteed!
  • On-Staff Water Experts? Contact us

Description:

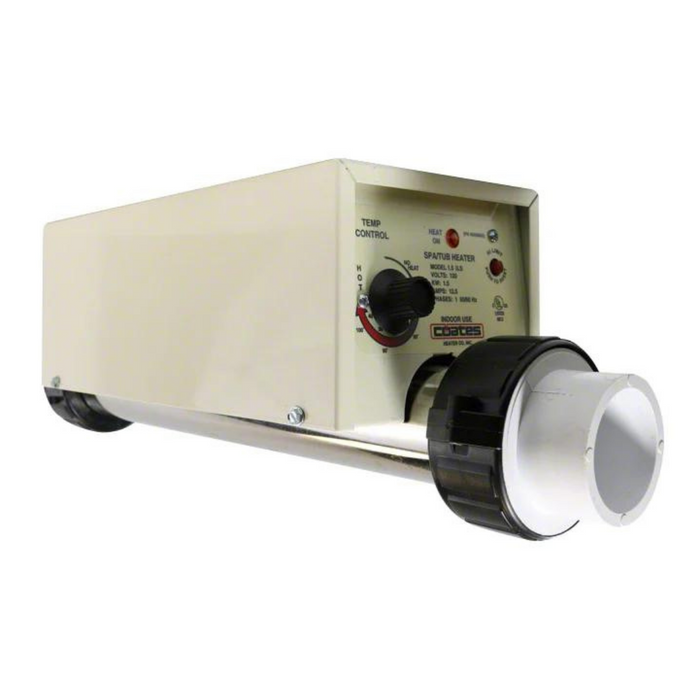

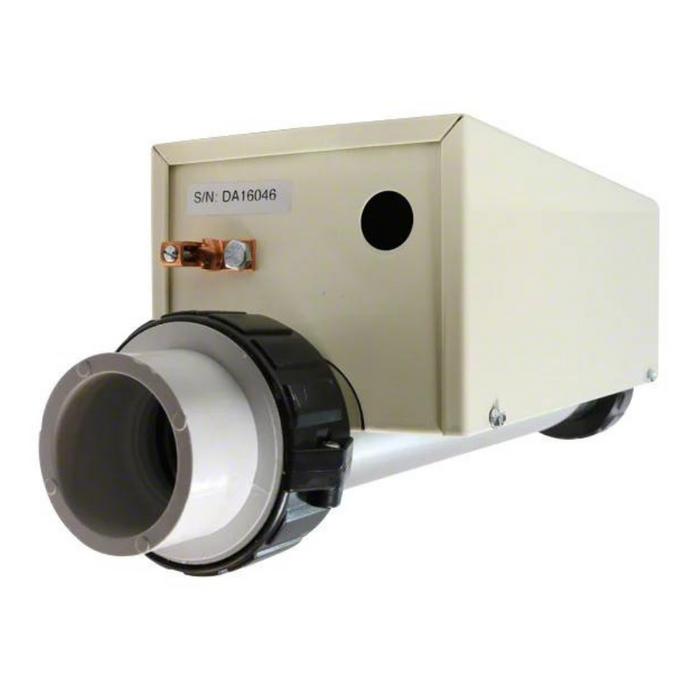

This Coates ILS In-Line 1.5kW electric spa heater is compact and efficient and features a stainless steel tank and replaceable titanium elements. The ILS spa heater is perfect for residential spas less than 400 gallons. The stainless steel tank is designed to optimize heat transfer by directing the water flow over the elements efficiently. It has a built-in pressure switch which prevents operation when there is no water flow.

Very compact in size, this electric spa heater is rated to produce 5,120 BTU's per hour and connects with either 1.5 inch or 2 inch connections. This heater requires a standard 120 volt electrical connection but must be hard wired and does not come with a plug.
  • 5,120 BTU's P/H
  • Replaceable Titanium elements
  • Close differential thermostat
  • Control box with powder coated finish
  • Manual reset high temp limit
  • Element "on" light
  • 1-1/2 or 2 inch union connections
  • Length with Unions: 19-1/2", Length without Unions: 15"
  • UL Listed for Indoor Installation.

Specifications:

  • Brand: Coates
  • Amperage: 12 amperage
  • Application: Pool
  • Cabinet Depth: 6 inch
  • Cabinet Height: 12 inch
  • Cabinet Width: 6 inch
  • Commercial, Residential, or Professional: Commercial, Residential
  • Weight: 8.15 pounds
  • Fuel Type: Electric
  • Phase: Single
  • Depth: 12 inch
  • Height: 6 inch
  • Width: 6 inch
  • Standards Approvals: UL Listed
  • Voltage: 120V
  • Wattage: 1.5 kilowatts
  • Heat Output: 1.5 kilowatts

Documents

FREE SHIPPING: In-stock products ship in 1-2 business days. Made to order products ship in 4-8 weeks. Contact us with questions.

Disclaimer: Professional installation is required (not included). Proof of installation by a trained technician is required to validate the factory warranty.
