Century 3.0HP Pump Motor 3 Ph, 208-230/460V, Y56Y Frame Q3302V1
SKU Q3302V1
Original price
$599.99
-
Original price
$599.99
Original price
$599.99
$599.99
-
$599.99
Current price
$599.99

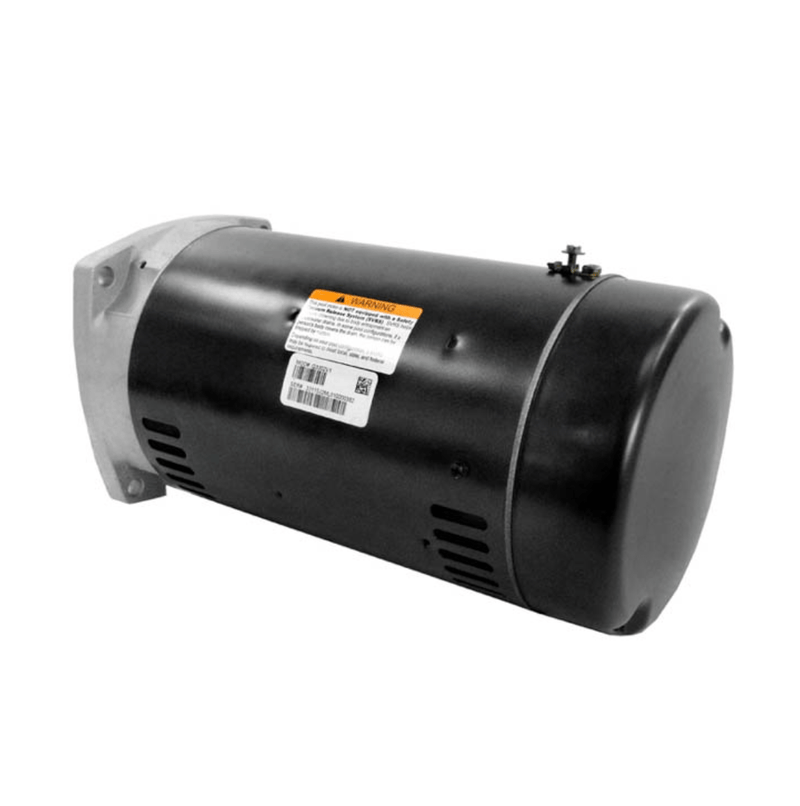

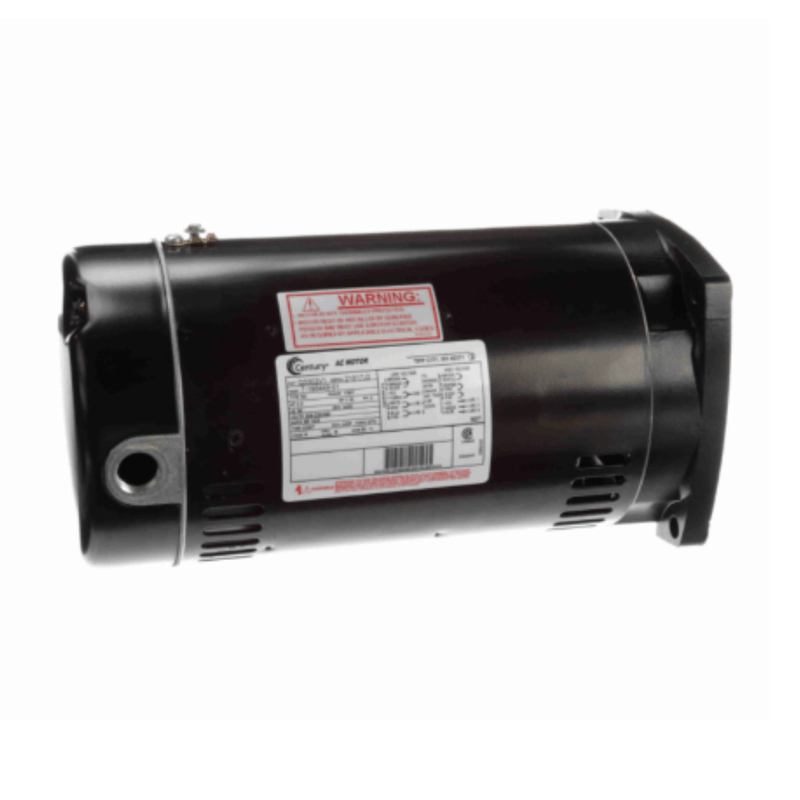

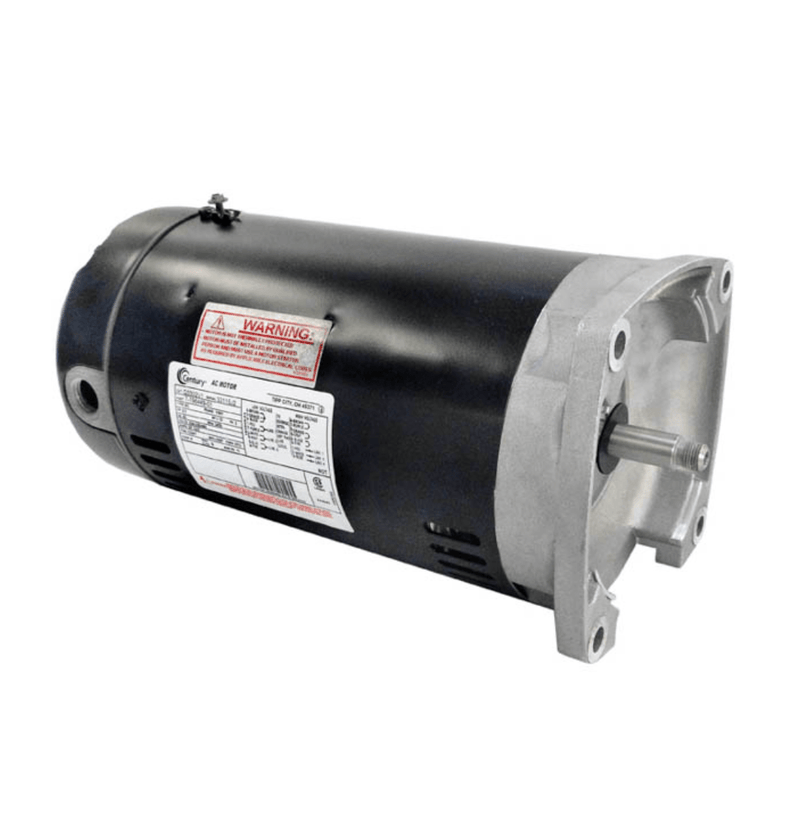

Century Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, ODP - Q3302V1
- All Copper Windings
- Open Dripproof
- 303 Stainless Steel Shaft
- Threaded Shaft
- Sealed Ball Bearings
- 50°C Ambient
- 3 Phase
- Jet Pump

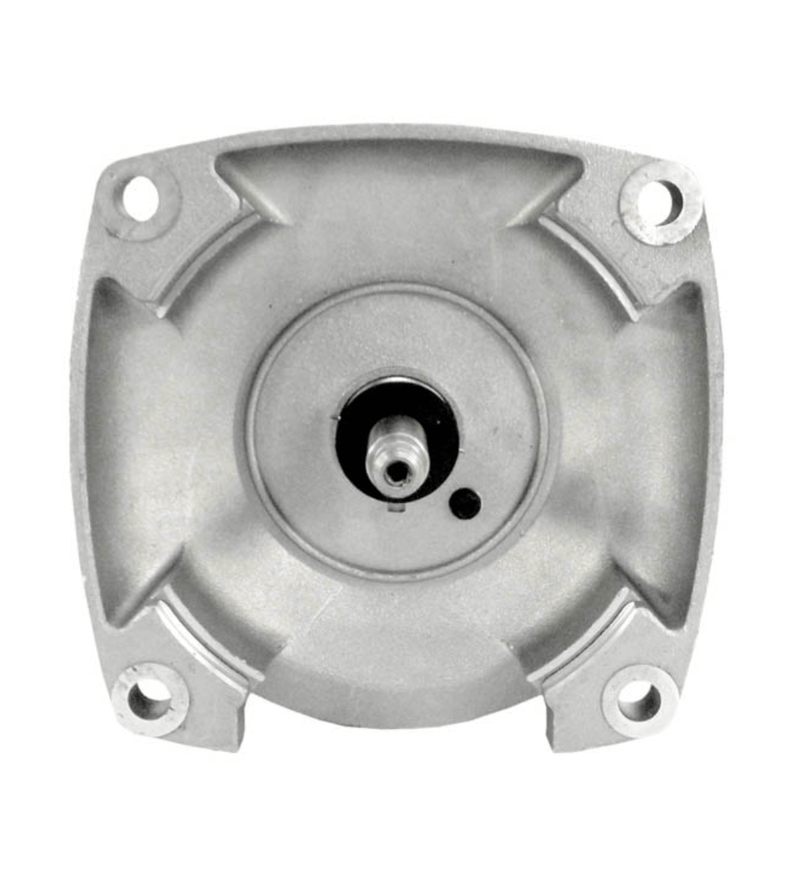

- Square Flange
Specifications:
- Phase: 3
- Output HP: 3.0 Hp
- Output KW: 2.2 kW
- Voltage: 208-230/460 V
- Speed: 3450 rpm
- Service Factor: 1.15
- Frame: Y56Y
- Enclosure: Open Drip Proof
- Thermal Protection: No Protection
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: SF 10/5 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 3450
