by Century

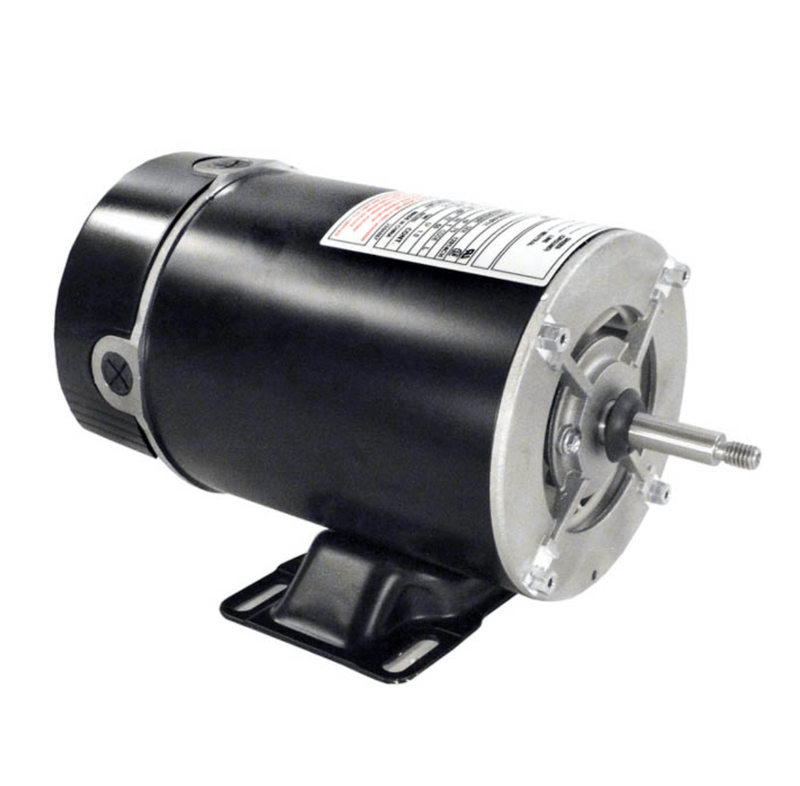

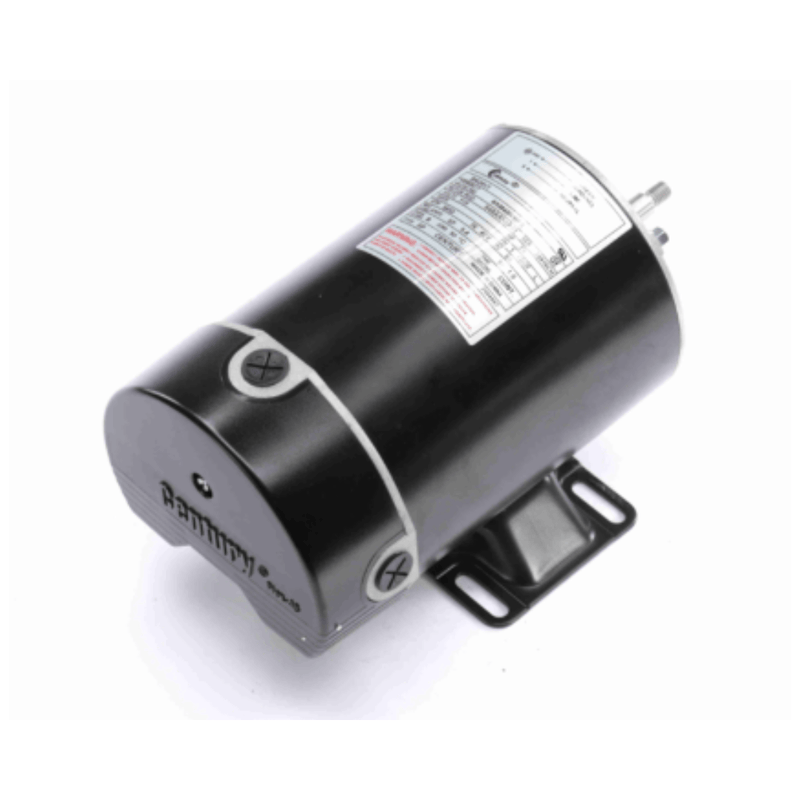

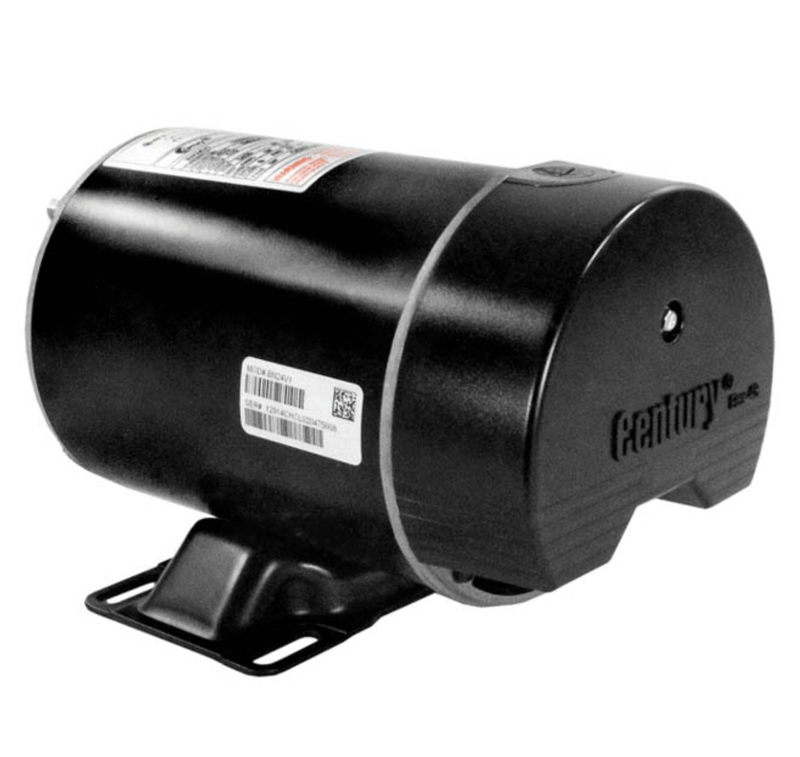

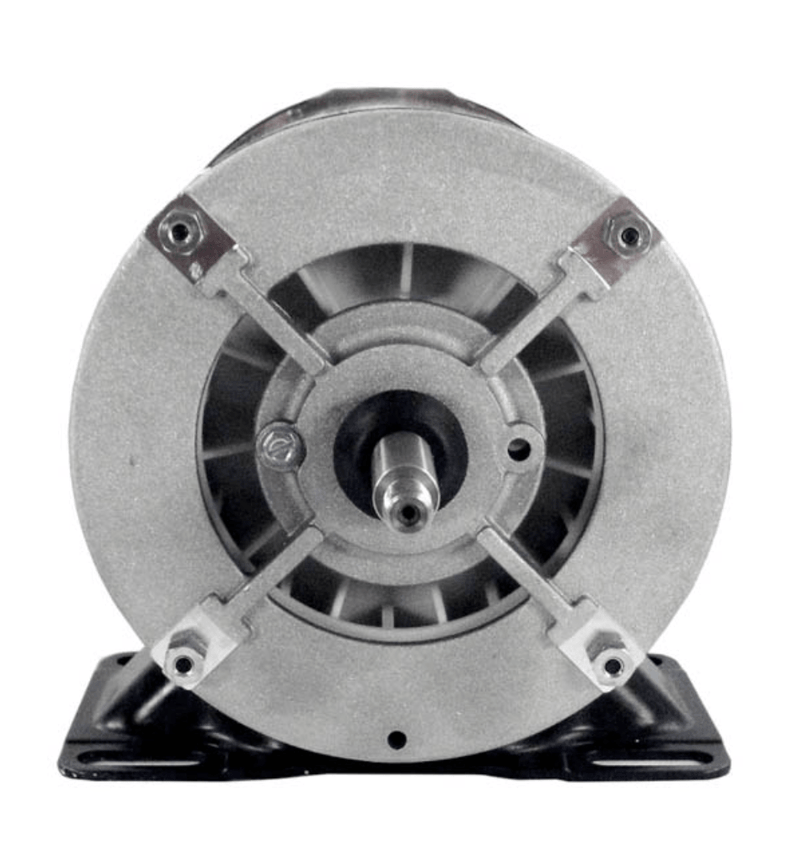

Century 3/4HP Pump Motor 1 Ph 115V 48Y BN24V1
SKU BN24V1
Original price
$219.99
-
Original price
$219.99
Original price
$219.99
$219.99
-
$219.99
Current price
$219.99
- 12 & 3 O'clock Conduit Entries
- 3-1/2" Shaft Height
- 50°C Ambient
- Stainless Steel Shaft
- Four Thru Bolts on a 5.146 Bolt Circle
- 48/56 Base Mounting
- Sealed Ball Bearings
- UL 1081 Design
- Rigid Base
- Threaded Shaft
Specifications:
- Phase: 1
- Output HP:. 75 Hp
- Output KW: 0.56 kW
- Voltage: 115 V
- Speed: 3450 rpm
- Service Factor: 1
- Frame: 48Y
- Enclosure: Open Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: 9.4 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
Unable to sell or install this product in New York or California.
Free Shipping: In-stock items ship within 1–2 business days. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
