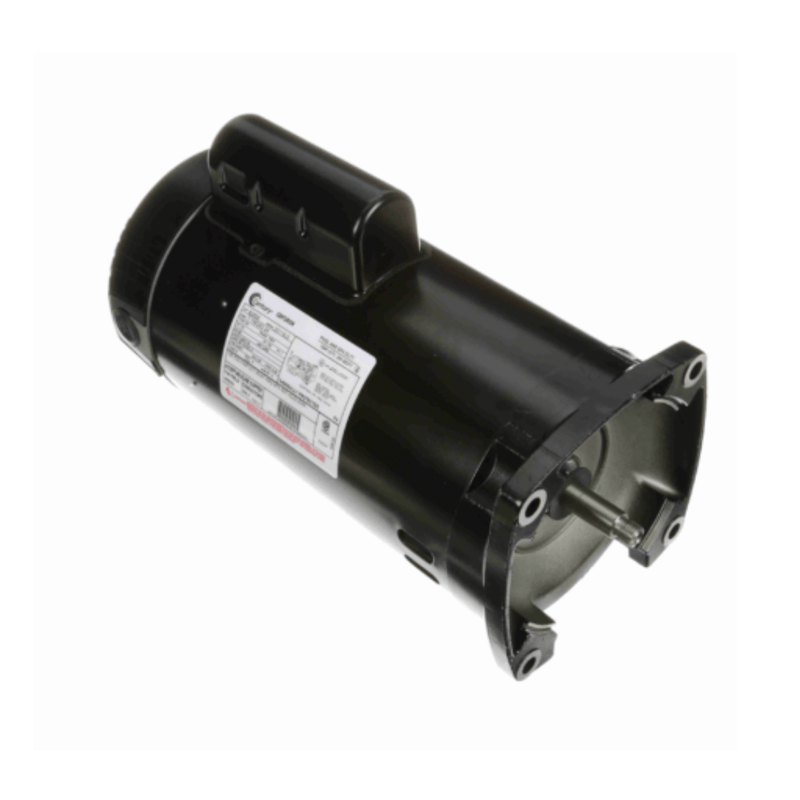

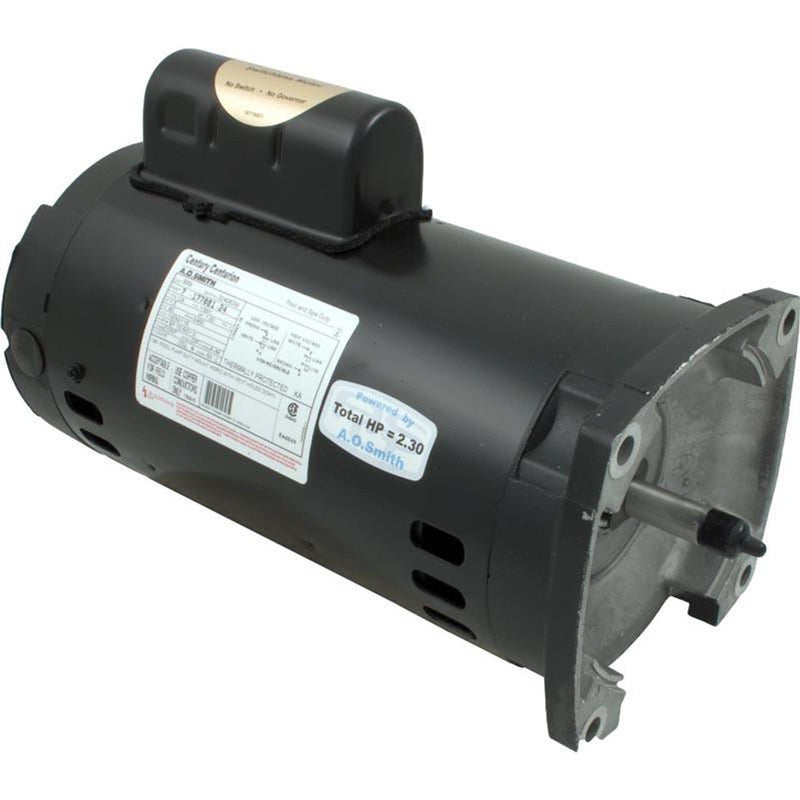

Century 1.5HP Square Flange Full-Rated Pump Motor B2858
SKU B2858
Original price
$379.99
-
Original price
$379.99
Original price
$379.99
$379.99
-
$379.99
Current price
$379.99
Century (A.O. Smith) 1.5 HP Full Rate Motor, Square Flange 56Y Frame, Single Speed - Model B2858
- Compatible with: WhisperFlo Motors Standard - Full Rate
- Sealed Ball Bearings
- 50°C Ambient
- Stainless Steel Shaft
- Switchless
- UL 1081 Design
- Open Dripproof
- Threaded Shaft
- Permanent Split Capacitor
Used On:
- Jandy PlusHP Full Rate Pump
- Jandy FloPro Medium Head Pump
- Jandy FloPro Medium Head Up-Rated Parts, FHPM2.0
Specifications:
- Phase: 1
- Output HP: 1.5 Hp
- Output KW: 1.1 kW
- Voltage: 230/115 V
- Speed: 3450 rpm
- Service Factor: 1.5
- Frame: Y56Y
- Enclosure: Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: SF 10.5/21.0 A
- Duty: Continuous
- Insulation Class: F
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
*Please Note: Unable to sell or install this product in New York or California.
