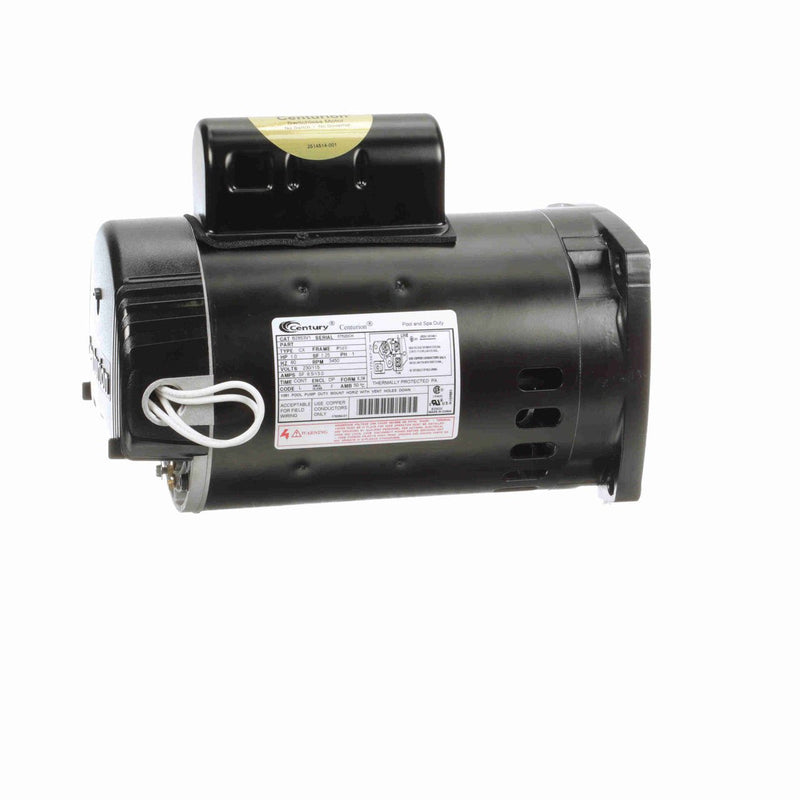

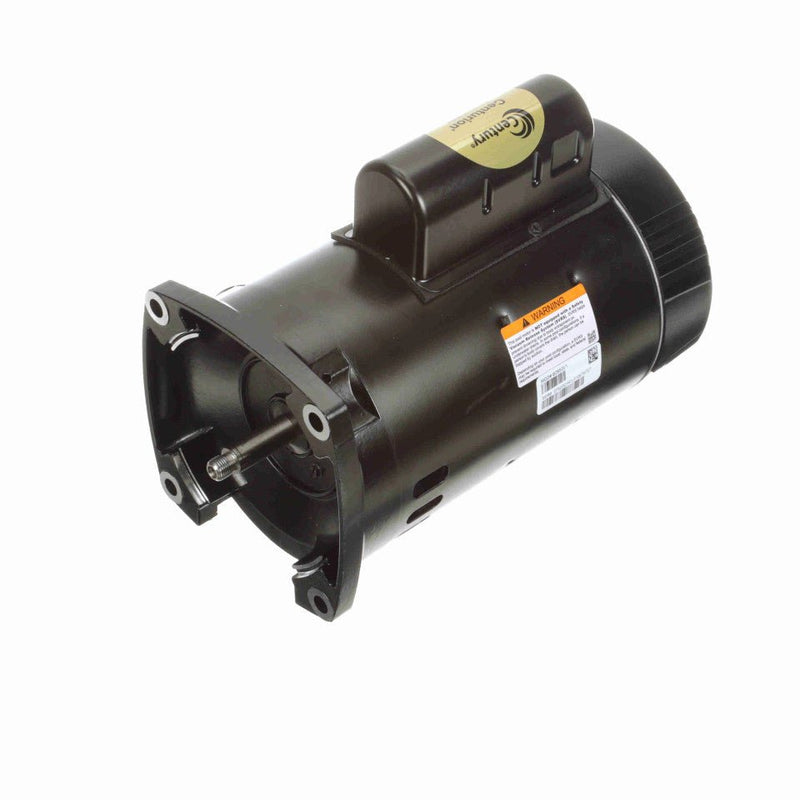

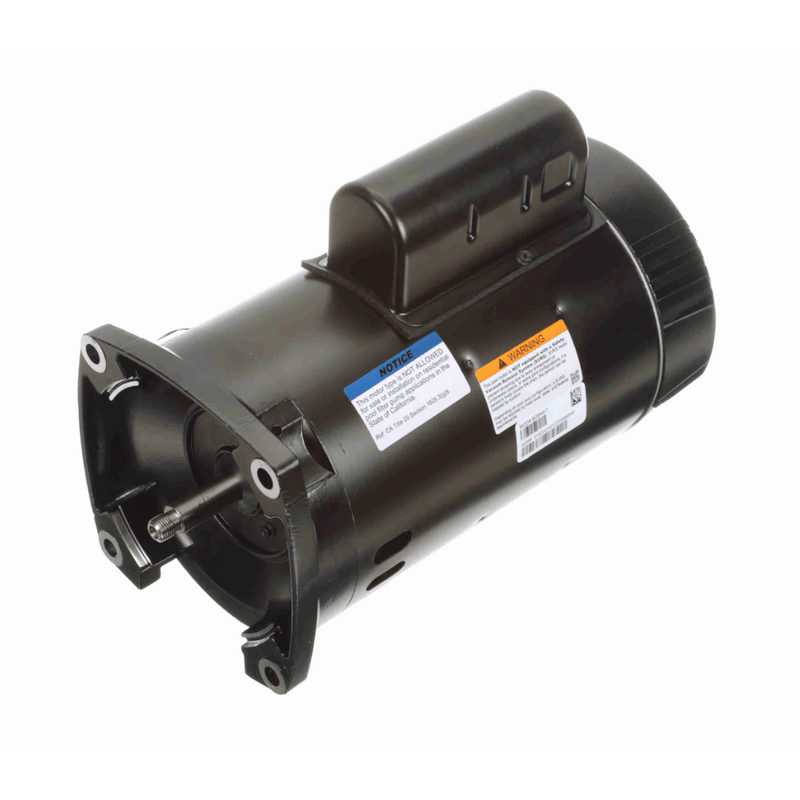

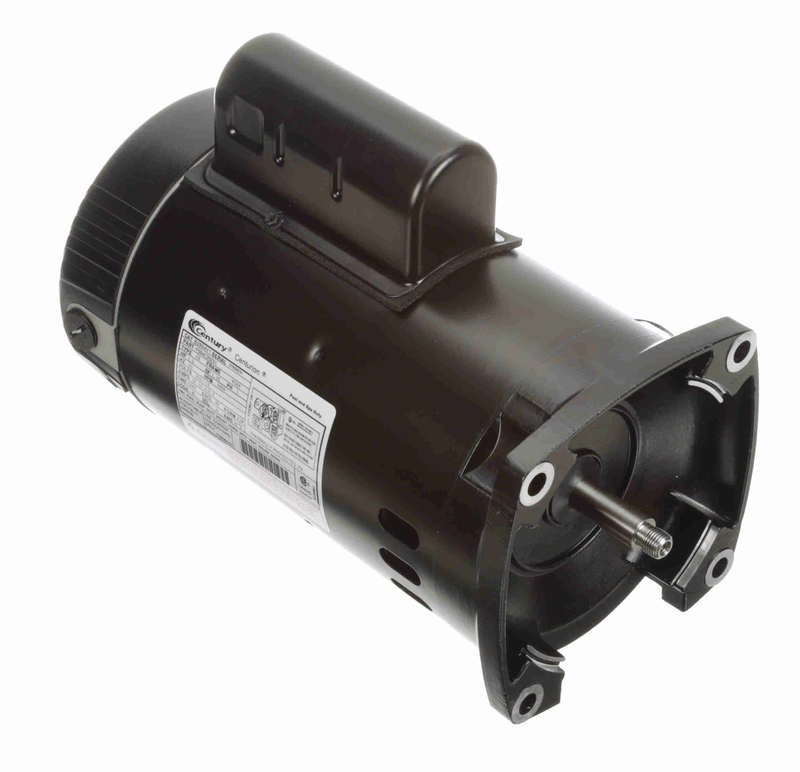

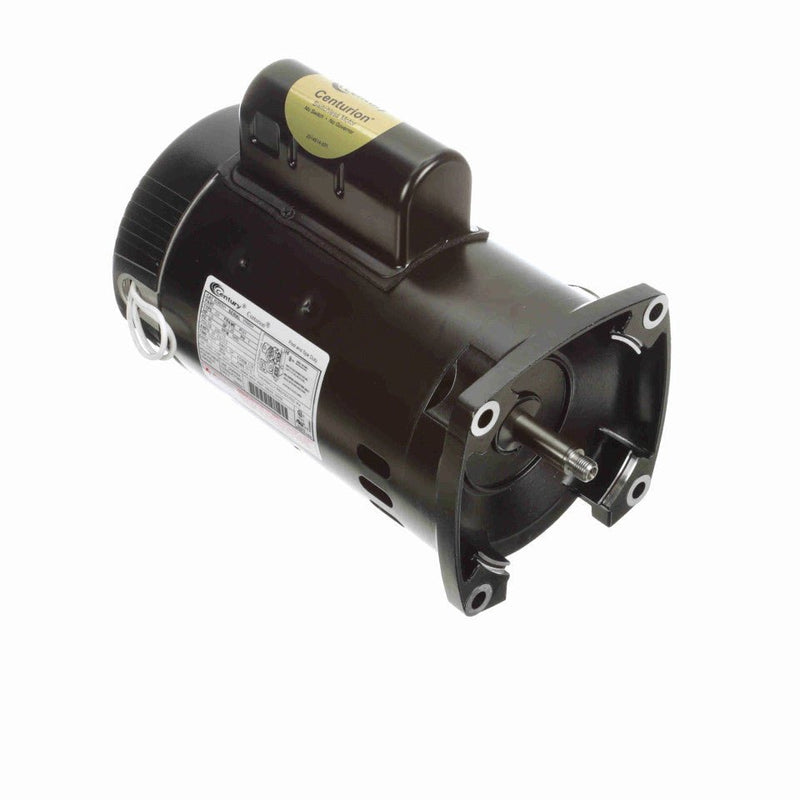

Century Square Flange Motor 1.5 HP 115/230V UR 56Y ODP (B2854/B2854V1)
SKU B2854V1
Original price
$299.99
-
Original price
$299.99
Original price
$299.99
$299.99
-
$299.99
Current price
$299.99
Century (A.O. Smith) 1.5 HP Up Rate Motor, Square Flange 56Y Frame, Single Speed - Model B2854V1, B2854
- Compatible With: WhisperFlo Motors Standard - Up Rate
- Sealed Ball Bearings
- 50°C Ambient
- Stainless Steel Shaft
- Switchless
- UL 1081 Design
- Open Dripproof
- Threaded Shaft
- Permanent Split Capacitorn
Specifications:
- Phase: 1
- Output HP: 1.5 Hp
- Output KW: 1.1 kW
- Voltage: 115/230 V
- Speed: 3450 rpm
- Service Factor: 1.1
- Frame: Y56Y
- Enclosure: Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current: SF 16.0/8.0 A
- Duty: Continuous
- Insulation Class: F
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
Used On:
- Jandy PlusHP Full Rate Pump
- Jandy FloPro Medium Head Pump
- Jandy 1.5HP Stealth Series Pump Parts, SHPF1.5
- Jandy FloPro Medium Head Up-Rated Parts, FHPM1.5
- Jandy WaterFeature Series Pump
*Please Note: Unable to sell or install this product in New York or California.
Free Shipping: Orders ship within 1–2 business days unless otherwise noted. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
