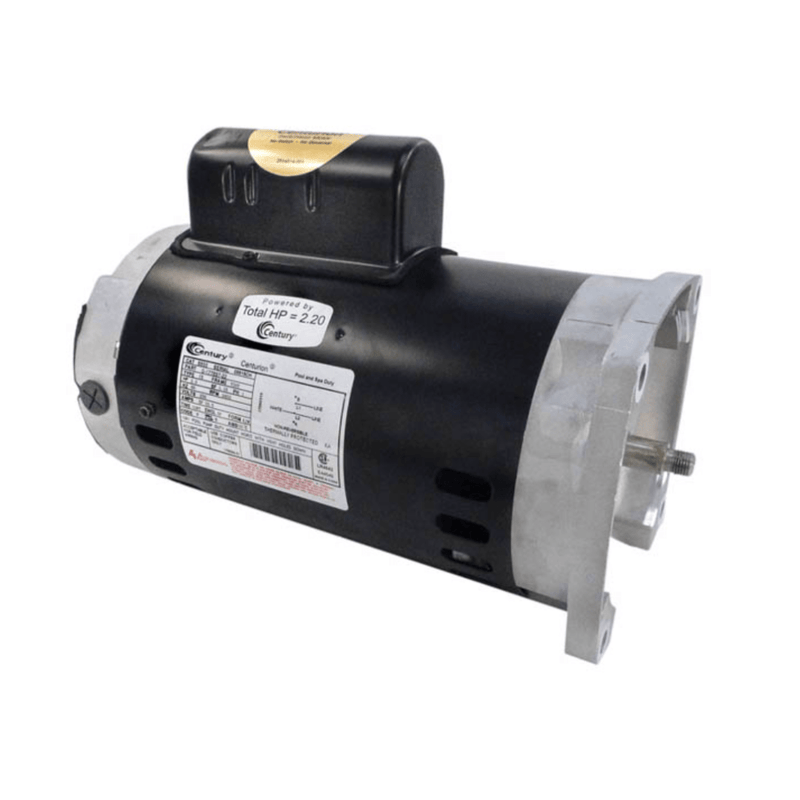

Century 2.0 HP Pool Pump Motor, Single Speed, 56Y Frame (B2843) WhisperFlo

Century (A.O. Smith) 2.0 HP Full Rate Motor, Square Flange 56Y Frame, Single Speed - Model B2843

• Compatible with: WhisperFlo Motors Standard - Full Rate
• Ball Bearings
• 50 C Ambient
• Rotation: CCW Pump End
• 60 Hertz
• Class B Insulation
• Stainless Steel Shafts
• 11.0-10.2A 208-230V

Specifications:

• Brand Century
• Ambient Temperature 50 degrees Celsius
• Shipping Dimensions 20 x 11 x 9.5 inch
• Amps High Speed 11
• Amps Low Speed 10.2
• Application Above Ground, Pool, Spa
• Bearing Type Sealed Ball
• Color Black
• Duty Cycle Continuous
• Weight 29.25 pounds
• Efficiency Group Standard
• Frequency Rating (Hz) 60
• Horsepower 2 horsepower
• Insulation Class F
• Motor Enclosure Type Open Drip Proof
• Motor Frame Size 56Y
• Motor Shaft Rotation Counterclockwise Pulley End
• Motor Thermal Protection Automatic Reset
• Pallet Quantity 32
• Phase Single
• RPMs Max 3450
• RPMs Min 3450
• Service Factor 1.3
• Shaft Design Threaded
• Shaft Diameter 0.625 inch
• Shaft Length 0.4375 inch
• Shaft Material Stainless Steel
• Standards Approvals CSA Certified
• Voltage 208V, 230V
• Diameter 6.5 inch
• Flange Material Aluminum
• Flange Type Square
• Frame Material Rolled Steel
• Green or Energy Efficient Product True
• Motor Rating Full-Rated
• Thrust HP 2.6
• UPC Code 786674012227
• B2843 2 HP SQ FLANGE FULL MOTOR - REGAL BELOIT AMERICA - EPC

*Please Note: Unable to sell or install this product in New York or California.
