by Century

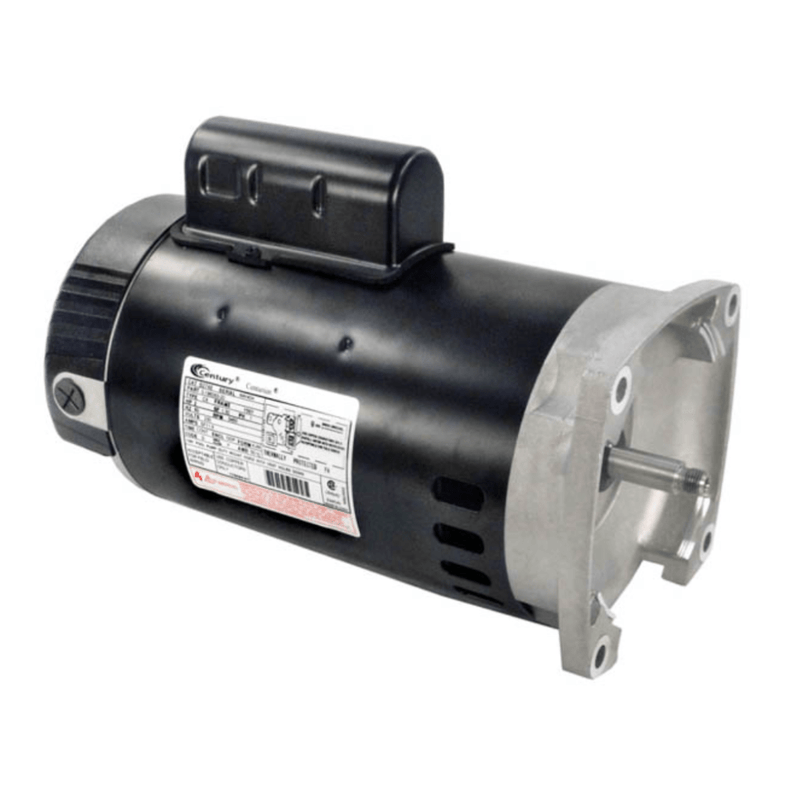

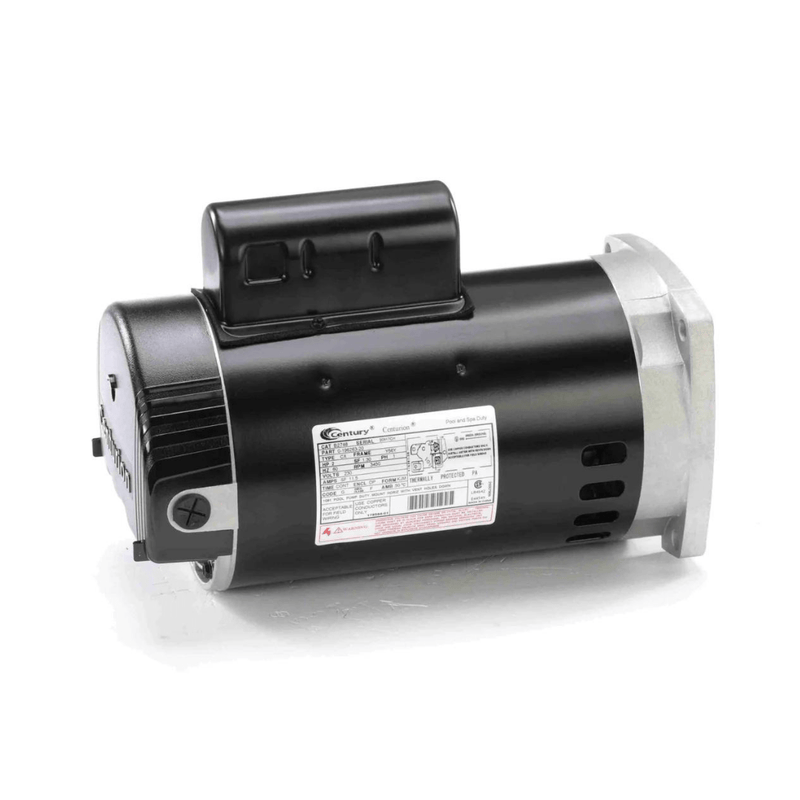

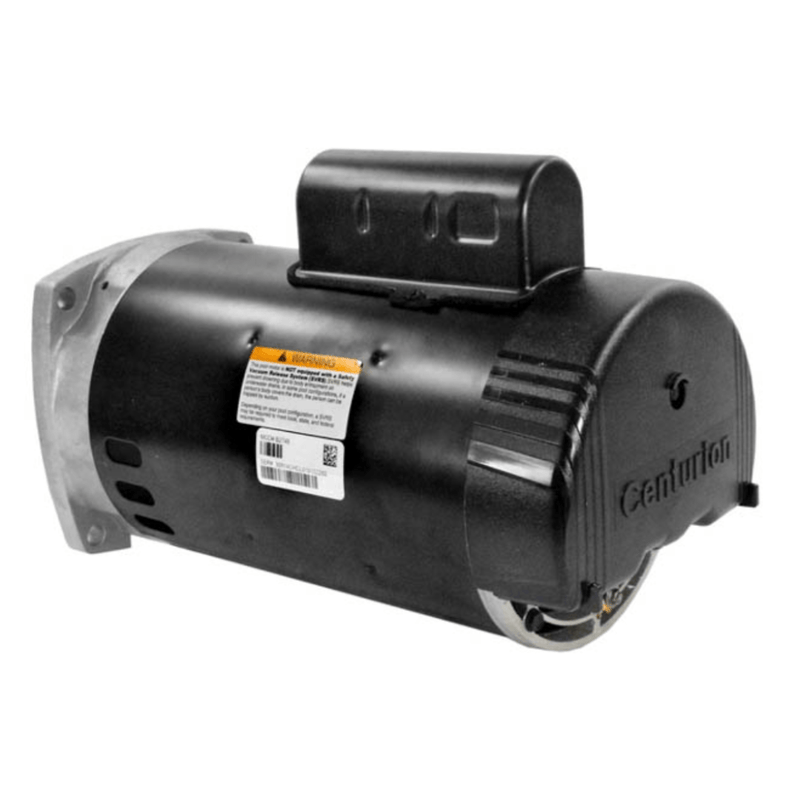

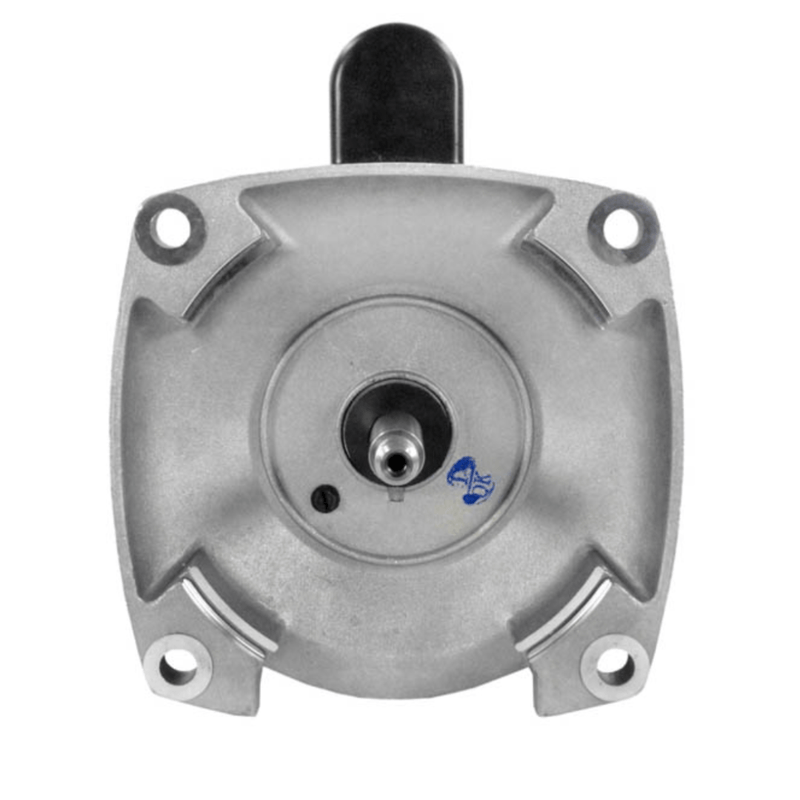

Century 2.0 HP Pool Pump Motor, Single Speed, 56Y Frame (B2748) WhisperFlo
SKU B2748
Original price
$475.99
-
Original price
$475.99
Original price
$475.99
$475.99
-
$475.99
Current price
$475.99
Century (A.O. Smith) 2.0 HP Full Rate Motor, Square Flange 56Y Frame, Single Speed - Model B2748e
Specifications:
- Compatible with: WhisperFlo Motors Standard - Full Rate
- Brand Century
- Ambient Temperature 50 degrees Celsius
- Shipping Dimensions 19.5 x 10.75 x 9.5 inch
- Amps High Speed 11.5
- Amps Low Speed 11.5
- Application Above Ground, Pool, Spa
- Bearing Type Sealed Ball
- Color Black
- Duty Cycle Continuous
- Weight 32 pounds
- Efficiency Group Standard
- Frequency Rating (Hz) 60
- Horsepower 2 horsepower
- Insulation Class F
- Motor Enclosure Type Open Drip Proof
- Motor Frame Size 56Y
- Motor Shaft Rotation Counterclockwise Pulley End
- Motor Thermal Protection Automatic Reset
- Phase Single
- RPMs Max 3450
- RPMs Min 3450
- Service Factor 1.3
- Shaft Design Threaded
- Shaft Diameter 0.625 inch
- Shaft Length 0.75 inch
- Shaft Material 303 Stainless Steel
- Standards Approvals CSA Certified
- Voltage 230V
- Diameter 6.5 inch
- Flange Type Square
- Frame Material Rolled Steel
- Motor Rating Full-Rated
- UPC Code 786674012180
- Cannot ship to California
Free Shipping: Orders ship within 1–2 business days unless otherwise noted. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
