by Century

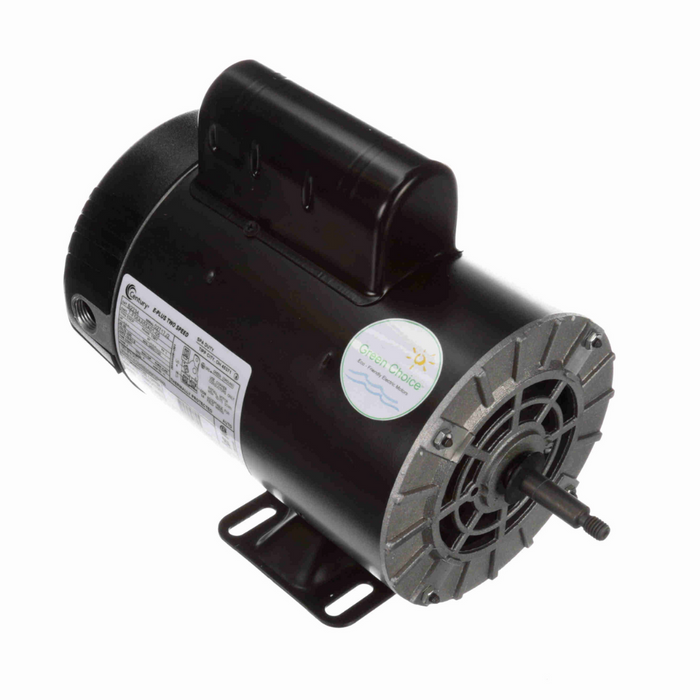

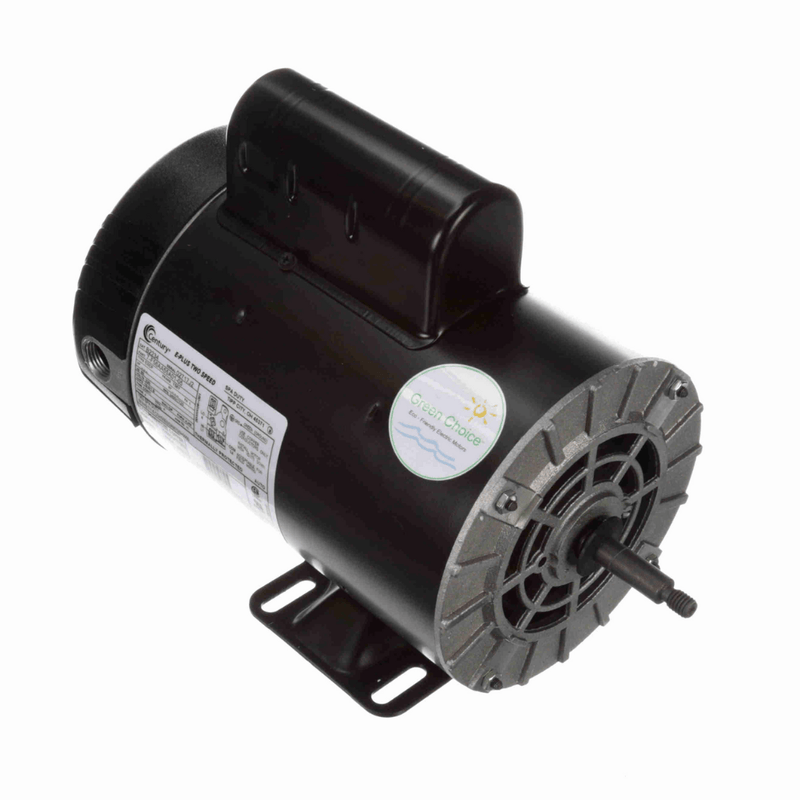

Century 3.0HP Pump Motor 1 Ph 230V 56Y Waterway B2234
SKU B2234
Original price
$399.99
-
Original price
$399.99
Original price
$399.99
$399.99
-
$399.99
Current price
$399.99
- Two Speed
- PSC on High Speed
- Cap Start/Cap Run on Low Speed
- Rigid Base
- 50°C Ambient
- Four Thru Bolts on a 5.812 Bolt Circle
- Open Dripproof
- Meets California Energy Commission Appliance Regulations 2008
Specifications:
- Phase: 1
- Output HP: 3.0 / 0.38
- SPL HpOutput KW: 2.2 kW
- Voltage: 230 V
- Speed: 3485/1745 rpm
- Service Factor: 1
- Frame: Y56Y
- Enclosure: Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 60 °C
- Frequency: 60 Hz
- Current: 10.0/1.8 A
- Duty: Continuous
- Insulation Class: F
- UL: Recognized
- CSA: Y
- Number of Speeds: 2
Free Shipping: Orders ship within 1–2 business days unless otherwise noted. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
