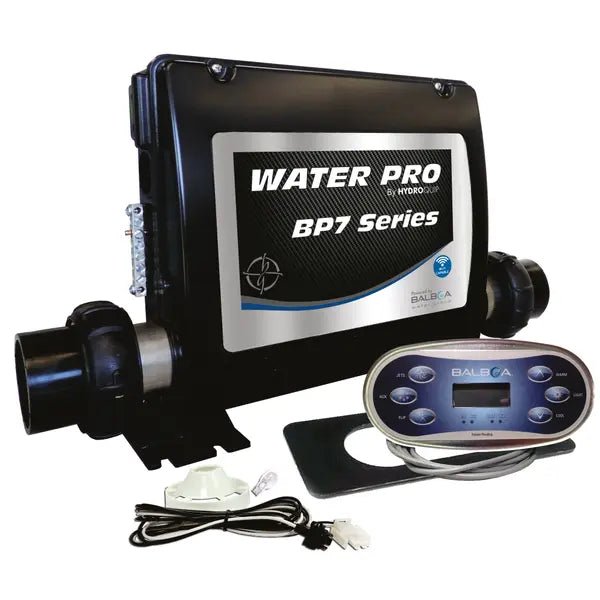

Balboa 50-BP7-600-40K BP7 Control Box Bundle with TP600 Topside Control

Balboa BP7 Series Control System 50-BP7-600-40-K

The Balboa BP7 Series Control System, with 7 relays and 32 setup options, can support a spa with 1 to 4 pumps, including MicroSilk systems.

BP7 Series System Capabilities:

• 5.5 KW Stainless Steel Heater Assembly (M7 heater included)
• Two-Speed Pump (120V or 240V)
• Single-Speed Pump
• Blower (120V or 240V)
• Ozonator
• Spa Light
• (For circulation pumps, minimum flow of 23 GPM is required)

Package Includes:

• Control Pack (230V only)
• Balboa TP500 Top Side Control Panel (Jets, Menu, Light, Aux, Temperature Up/Down buttons)
• Balboa Stainless Steel Heater with M7 Flow/Temperature Sensors
• Light Housing Assembly (Lens and bulb not included)
• Panel Overlay
• Adapter Plate for Top Side Control Panel
• (Cords for pumps, blowers, etc., sold separately)

Features and Benefits:

• 7 relays and 32 setup configurations
• Wi-Fi enabled
• Supports all BP ancillary products (Control My Spa, Balboa Bluetooth Audio, Chromozon3, Status Pro)
• Compatible with TP and SpaTouch topside panels
• Replaces mechanical pressure/flow switches
• Can be plumbed on either suction or pressure side of the pump
• Convertible 120/240V power
• Custom plastic enclosure
• M7 flow/temperature sensors
• Thoroughly tested with US & Canadian safety approvals

Balboa’s patented M7 technology offers superior reliability, fewer returns, and a longer lifespan than traditional systems. Balboa's innovative engineering and state-of-the-art manufacturing ensure high-quality, cost-effective, and durable products.

Patented M7 Technology Includes:

• Smart sensor technology
• Multiple high-limit safety systems
• Active safety functions at all times
• Identical sensors that monitor each other
• No sensor installation in the spa wall
• No pressure switch issues
• Heater operates in optimal conditions

Heater Element and Tube:

• Enlarged bend radius
• Debris collection minimized
• No welds or wire ties needed
• Front-mounted for easy access during service

Replacement for the Following Systems: Balboa VS300, VS500Z, VS501Z, VS503SZ, VS510SZ, VS510DZ, VS511SZ, BP501G1, BP501G2, and more.
