by Century

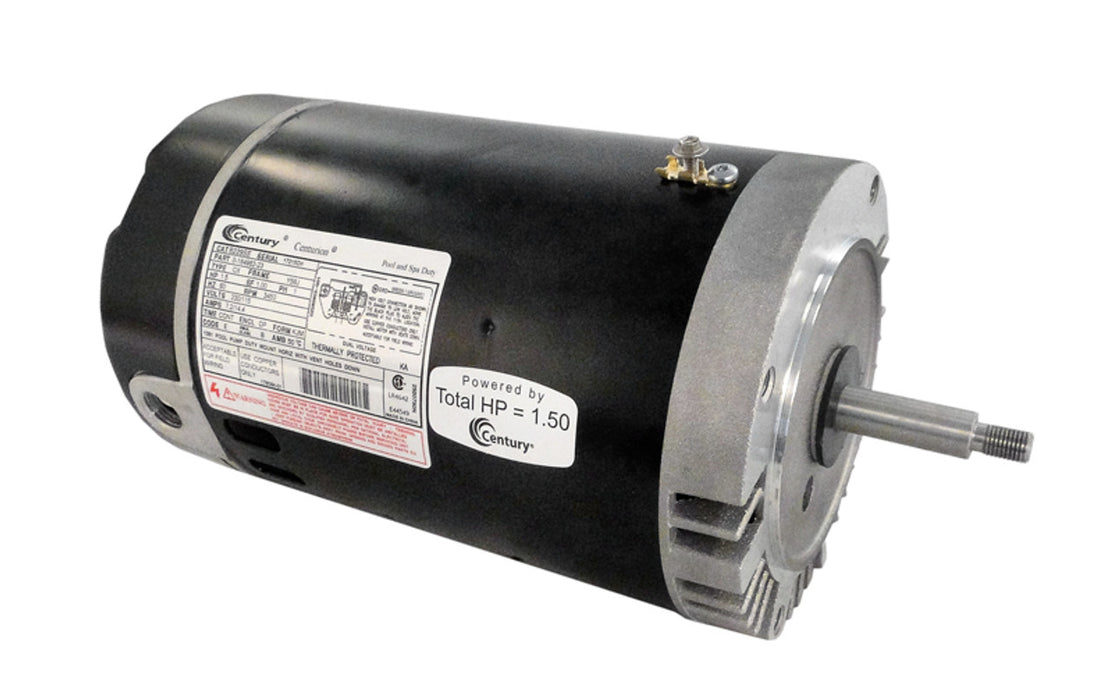

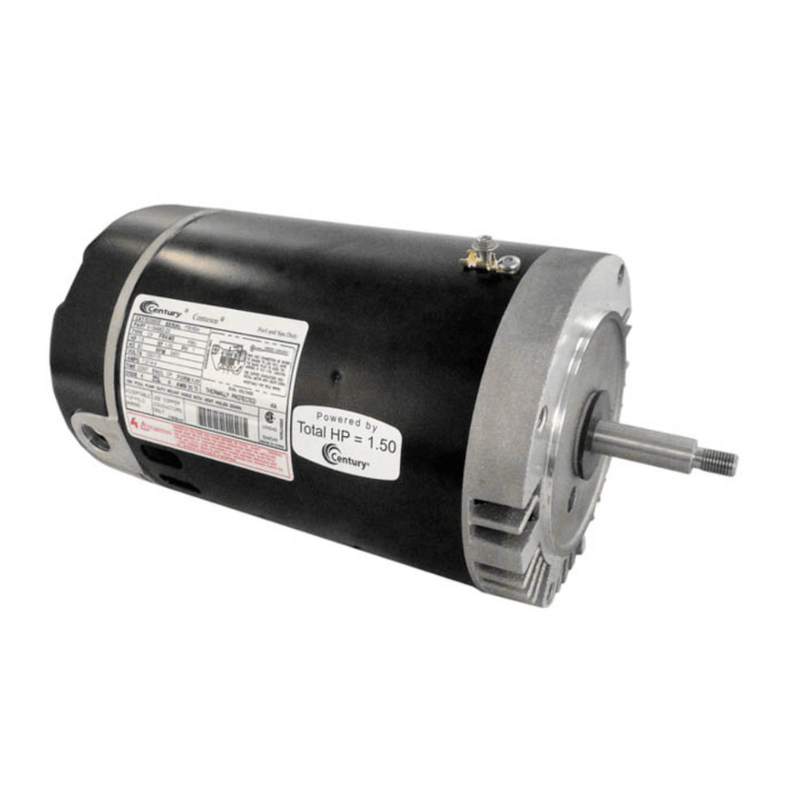

Century 1.5HP 3450 RPM 115/230V 56J Threaded Shaft 1-Phase Motor B229SE
SKU B229SE
Original price
$289.99
-
Original price
$289.99
Original price
$289.99
$289.99
-
$289.99
Current price
$289.99
- 1 1/2 HP 230/115V THREADED
- 1.00 SF 56J MOTOR
- Low service factor
- 7/16-20 UNF-2A RH threaded shaft
- Non-California Compliant
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange Material | Aluminum |
| Frame | 56J |
| Frequency Rating | 60 Hz |
| Full Load Amps | 7.2/14.4 A |
| HP | 1.5 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Design | PSC |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face, No Base |
| Number of Speed | 1-Speed |
| Overall Length | 13.91 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Series | Centurion® |
| Service Factor | 1.00 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 2-9/16 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.5 |
| Type | Up-Rated, CX |
| Voltage Rating | 115/230 V |
Free Shipping: Orders ship within 1–2 business days unless otherwise noted. Please refer to our shipping policy for full details.
Warranty Information & Support: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
Please Note: Images are for representation.
