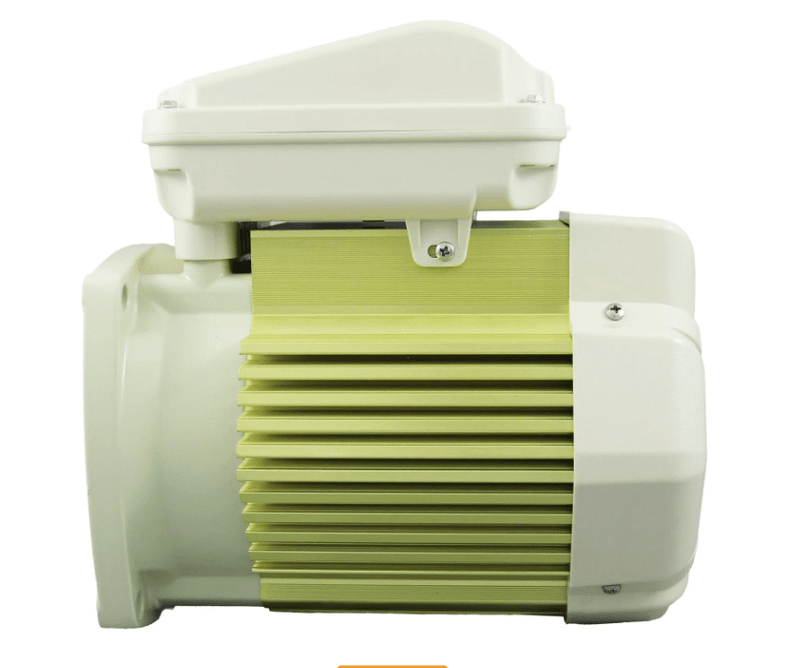

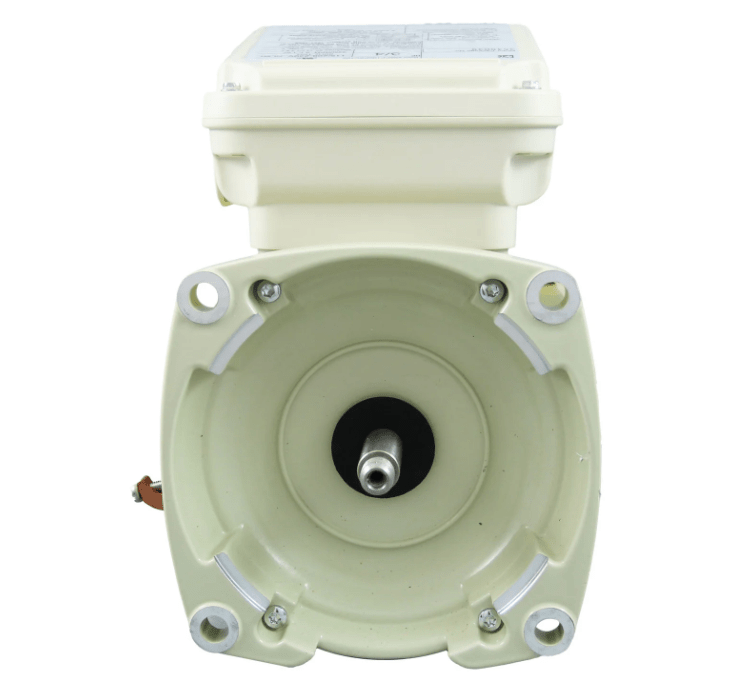

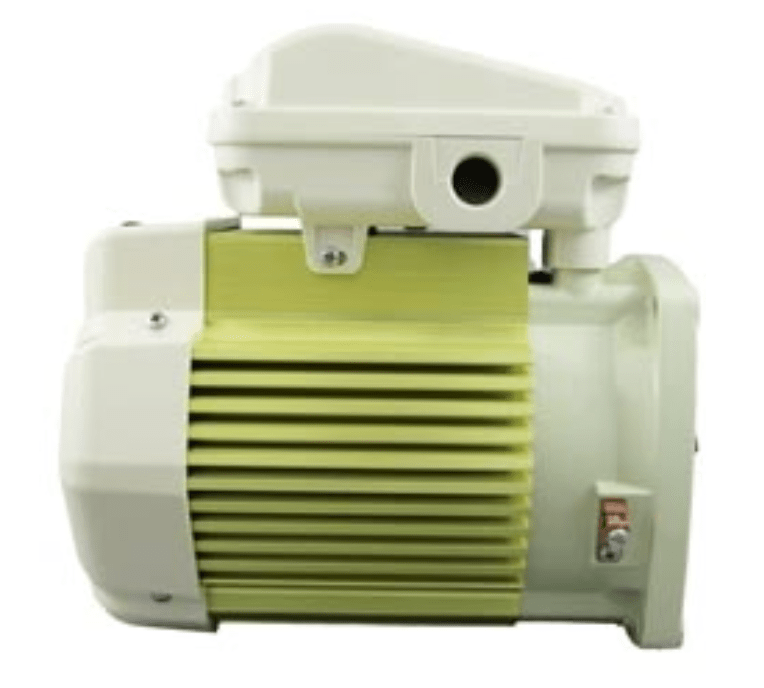

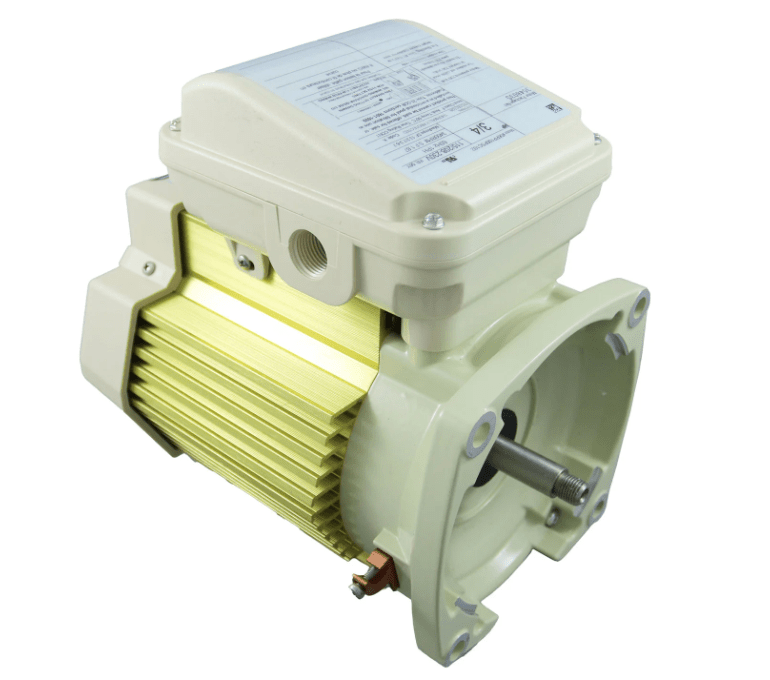

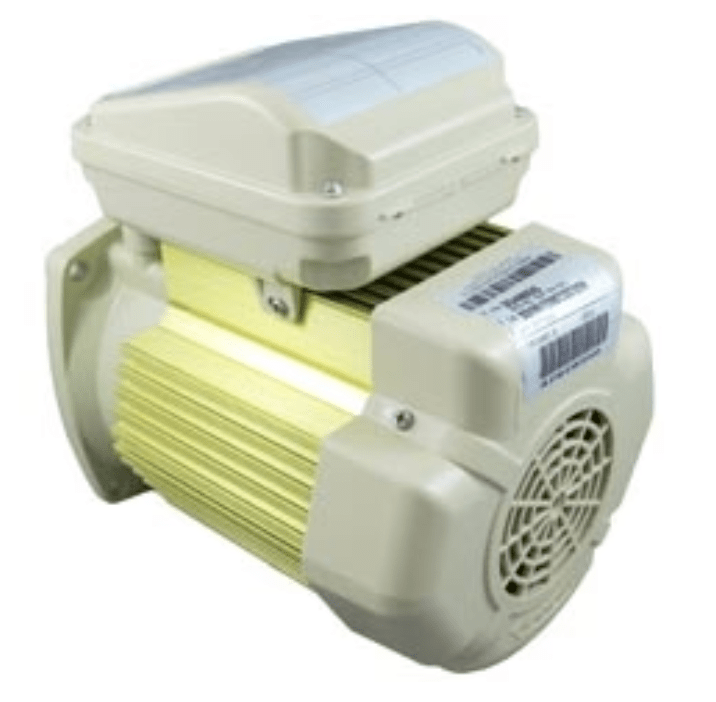

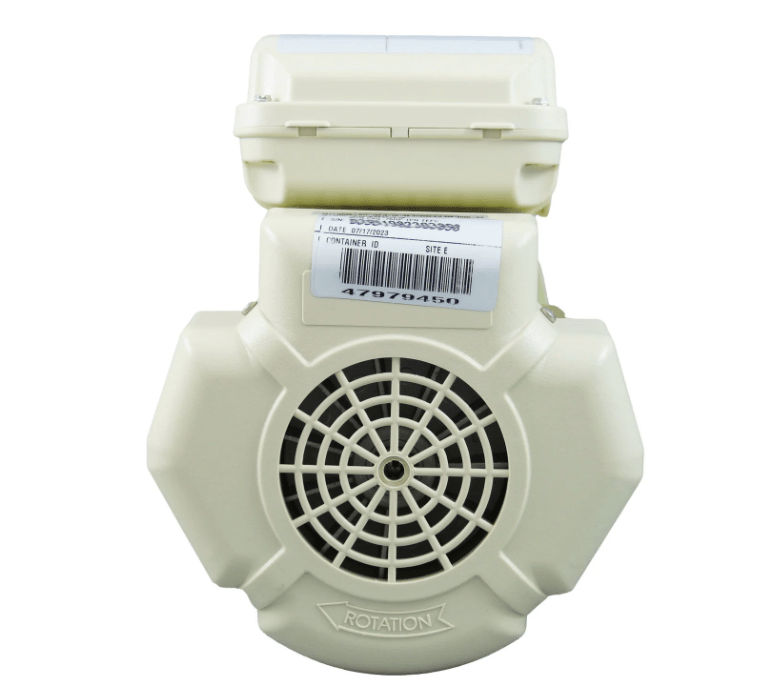

Pentair 354803S .75HP 1 Ph 115/208-230V 1 Speed 56Y TEFC Pump Motor Almond SuperFlo / WhisperFlo
SKU 354803S
TradeGrade
Pentair 354803S 1 Speed Almond 56Y TEFC Square Flange Pump Motor .75HP 1 Ph 115/208-230V
This motor runs at .75HP, 1 Ph, and 115/208-230V. Square Flange Pump Motors are the most common motor frame used today. These frames attach directly to the pump.
Motor for the following Pentair Pumps:
- SuperFlo Pumps
- WhisperFlo Pumps
Specifications:
- Brand: Pentair
- Application: In-Ground, Pool
- Shipping Dimensions: 31 x 22 x 9 inch
- Color: Tan / Almond
- Weight: 32 pounds
- For Use With: SuperFlo
- Horsepower: 0.75 horsepower
- Motor Enclosure Type: Totally Enclosed Fan Cooled
- Motor Frame Size: 56Y
- Phase: Single
- Voltage: 115V, 208V, 230V
- Commercial, Residential, or Professional: Residential
- Flange Type: Square
- Warranty: 1 year
- UPC Code: 788379880323
Shipping, Installation & Warranty
Free Shipping: Most orders ship within 1 business day, unless otherwise noted.
Disclaimer: Professional installation (not included) is required, and proof of installation by a certified technician is needed to validate the factory warranty.
Warranty: Visit our warranty page or refer to the specific product user manual.
Disclaimer: Professional installation (not included) is required for warranty validation.
