Balboa M7 5.5kW Titanium Heater Manifold Assembly G7532
SKU BBG7512
Original price
$199.00
-
Original price
$199.00
Original price
$199.00
$199.00
-
$199.00
Current price
$199.00
Availability:
In stock

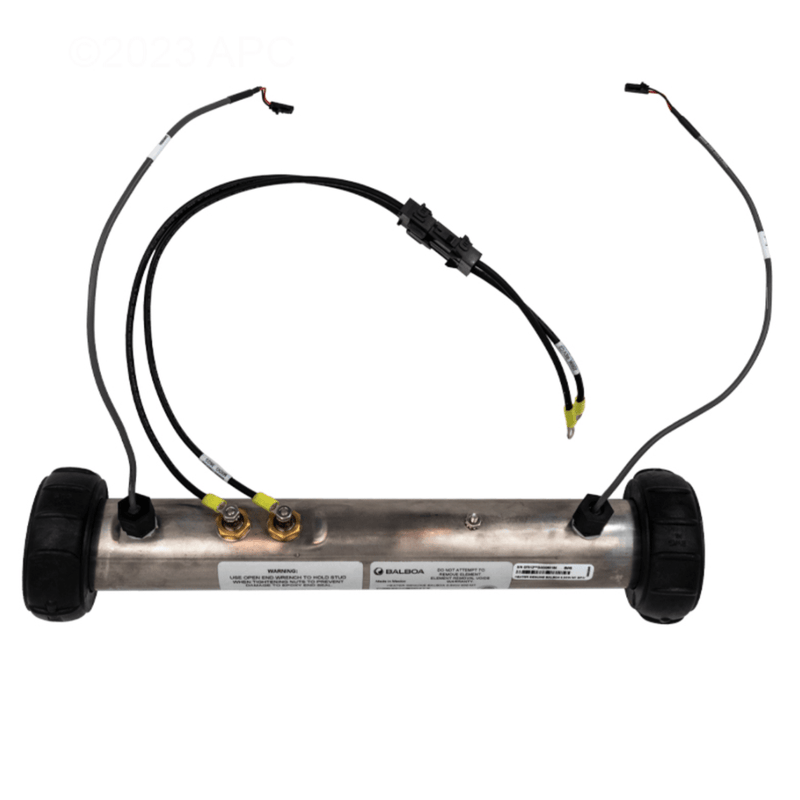

OEM Balboa Spa Heater - M7 15" 5.5 kw Flo-Thru with Mounting Studs & Sensors
- Stainless Steel Heater Housing
- 5.5KW Incoloy Flo-Thru Heater Element
- Includes (2) Balboa OEM M7 Dual Sensors (Balboa p/n 32016)
- BP Style Heater Cable Plug, Plug N' Click, 16" Long (Balboa p/n 25263)
- Includes (2) 2.0" Heater Split Nut Unions
- One Year Warranty
- Replaces ALL Current Versions (BP) And Previous VS and EL Series Heaters
Specifications:
- Voltage: 120v / 230v
- KW Rating: 5.5kw
- Plumbing Connection Size: 2" Slip
- Length: 15" (Metal Flange to Metal Flange)
- Construction: Stainless Steel
- Element Construction: Incoloy
- Includes Sensors & Mounting Posts
- Split Nut Unions Included
- "Plug n Click" Connector Included (Can be Removed)
- This heater does NOT include gaskets or plumbing Tailpieces
Support Documents:
Can Replace the Following Heater Models:
- 58083, 58002, 55689, 58123, 58209, HEA14100450, 58121, 58016, C2550-0807-TPS, 58083, 55473, 9711-220, 58105, 11787, 407-40557, 58086, 740-0617, 55624, 58089, 740-0655, 58083, 58140, 26-0807-7S-KS, G7510, G7518, 58000, 58010, 58130, 9711-207, 52756, X300930 (Master Spa), 55629, 58278, 55690, G7512, 26-58306-KH
Alternate Part Numbers:
- BBG7512, G7510, BBG7510, 9711-220, 46-138-1315
Notes For Use on Balboa VS Systems:
- This heater is a replacement for ALL BP, VS, and EL Balboa 5.5kw / 15" Heaters.
- If using to replace on a VS system, you will need to remove the included Pick-n Click Plug that is attached, and replace with heater cables, or existing wiring. (See VS installation guide above)
- If your current system uses copper straps to power the heater, it is recommended to replace with heater cables/wires.
Shipping, Installation & Warranty
Free Shipping: Orders ship within 1 business day, unless otherwise noted.
Warranty Information: Most Balboa equipment includes a 1-year manufacturer’s warranty. Parts and circuit boards include a 90-day warranty. See full details here.
Disclaimer: Professional installation (not included) is required for warranty validation.
Note: Images are for representation.
