by Century
Century .5 HP Centurion 1081 56Y Frame Motor B2846
SKU B2846
Original price
$249.99
-
Original price
$249.99
Original price
$249.99
$249.99
-
$249.99
Current price
$249.99

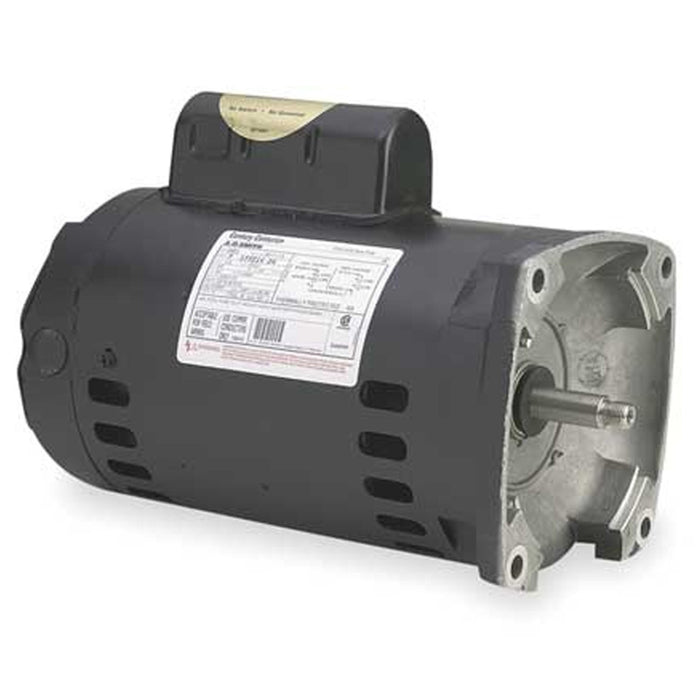

Century (A.O. Smith) .5 HP Full Rate Motor, Round Square Flange 56Y Frame, Single Speed - Model B846 - B2846
- Compatible with: WhisperFlo Motors Standard - Full Rate
- 1/2 HP SQ FLANGE 56Y MOTOR
- 1.95 SF FULL RATED
Used On:
- Jandy PlusHP Full Rate Pump
- Jandy FloPro Medium Head Up-Rated Parts, FHPM.75
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Flange T ype | Square |
| Frame | 56Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 5.4/10.8 A |
| HP | 0.5 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Design | PSC |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face, No Base |
| Overall Length | 12.40 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Series | Centurion® |
| Service Factor | 1.95 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 3/4 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008 |
| Sub Brand | Century® |
| Thrust Horsepower | 0.98 |
| Type | Full-Rated, CX |
| Voltage Rating | 115/230 V |
