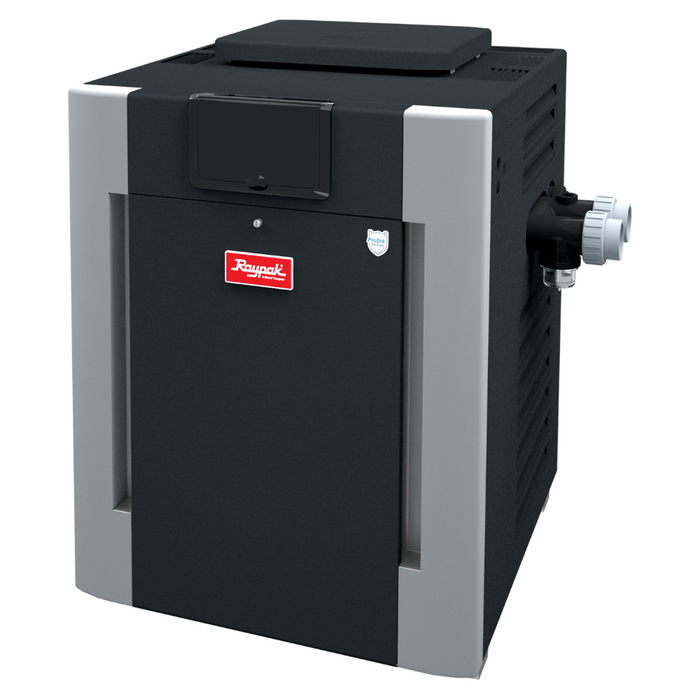

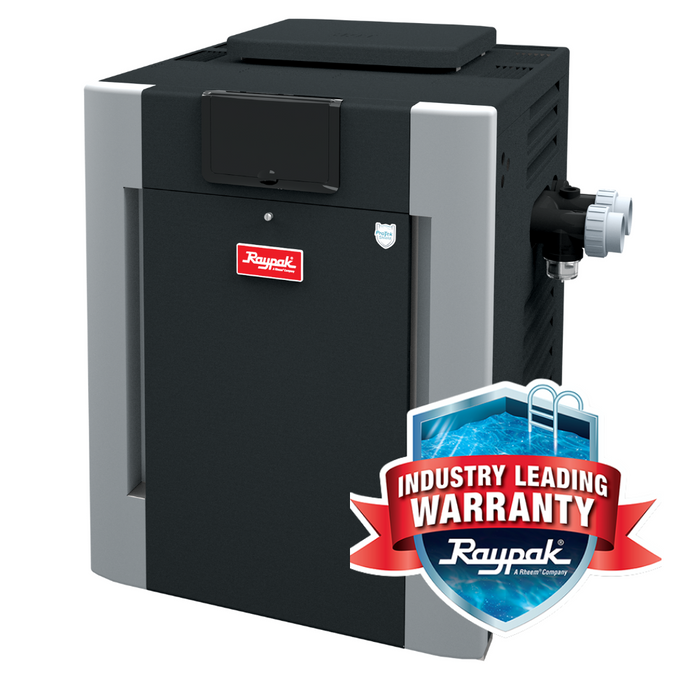

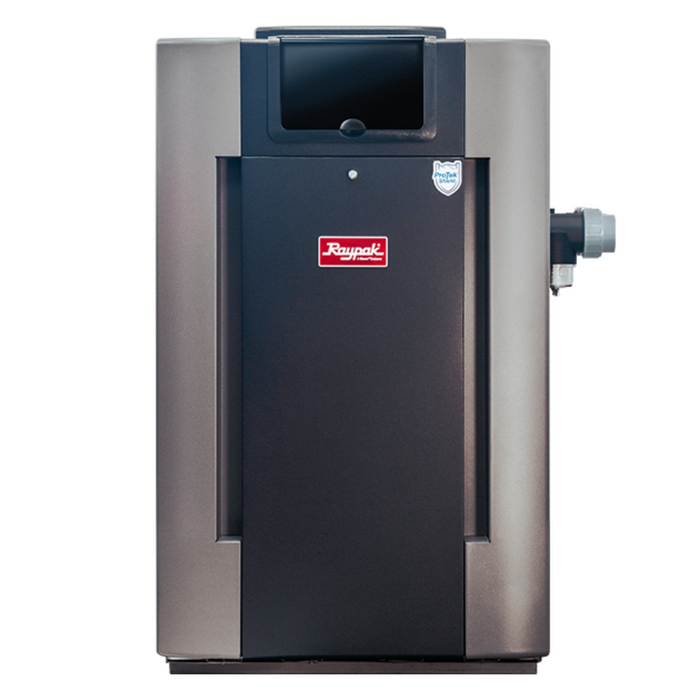

Raypak 240K BTU Digital Natural Gas Heater, Cupronickel, 30K Gal, P-R266A-EN-X 014939

The sleek Raypak Digital Gas Pool and Spa Heater combines innovative technology with a stylish design to keep your pool or spa at the ideal temperature. Built to endure various weather conditions, it offers an efficient, convenient, and versatile heating solution.

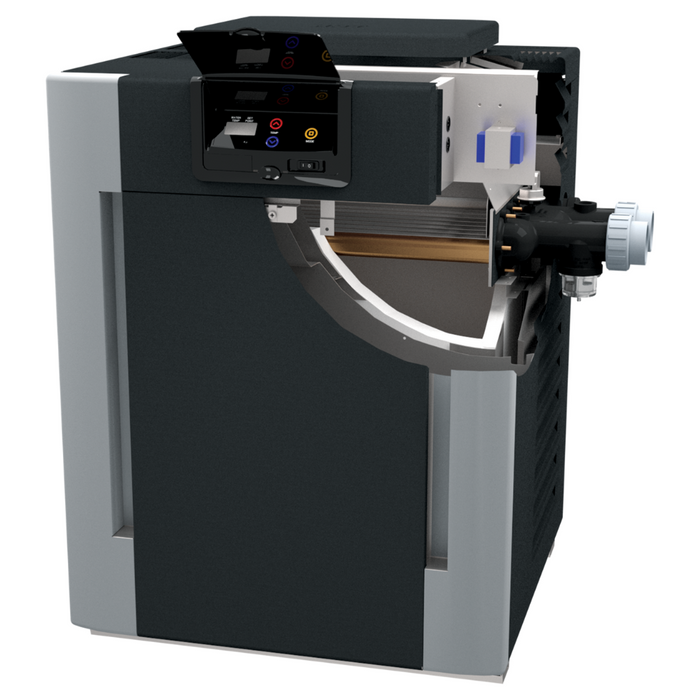

With a low-profile design, a corrosion-resistant galvanized metal cabinet, a copper fin tube heat exchanger (upgraded Cupronickel Heat Exchanger available), and advanced materials, this heater is perfect for year-round use.

• Cupro-nickel gas pool and spa heater
• Pagoda design ensures heater stays active in harsh weather conditions
• Microprocessor controlled thermostat
• Digital display
• On-board self-diagnostics
• Remote compatible
• Powder-coated galvanized metal construction
• Non-corrosive
• Prevents rust stains
• Polymer resin headers
• Cupro-nickel fin tube

Specifications:

• Applications: Residential, Pool, Spa, Up to 30,000 gallons*
• Product Type: Pool Heater
• Elevation: 0 - 2,000 ft
• Fuel Type: Natural Gas
• Heat Exchanger: Cupro-Nickel
• Pool Type: In Ground
• Emission: Standard
• Manufacturer: Raypak
• Heat Output: 240,000 BTU
• Installation Type: Residential
• Ignition: Electronic
• Model Number: P-R266A-EN-X
• Product Dimensions: 30.8" Width x 44.3" Length x 28.3" Height
• Product Weight: 289 lbs.
• Part Numbers:
  • Raypak: P-R266A-EN-X
  • Rheem: P-M266A-EN-X
  • Ruud: P-D266A-EN-X

Support Documents:

• Brochure
• User Manual
• Warranty

*Please Note: The BTU rating is the minimum heating requirement for the recommended gallons shown. This is under perfect conditions with no temperature loss. Always size up if you plan to use the heater in cool weather or without a cover. Need help? Contact us anytime - we’re here to help!
