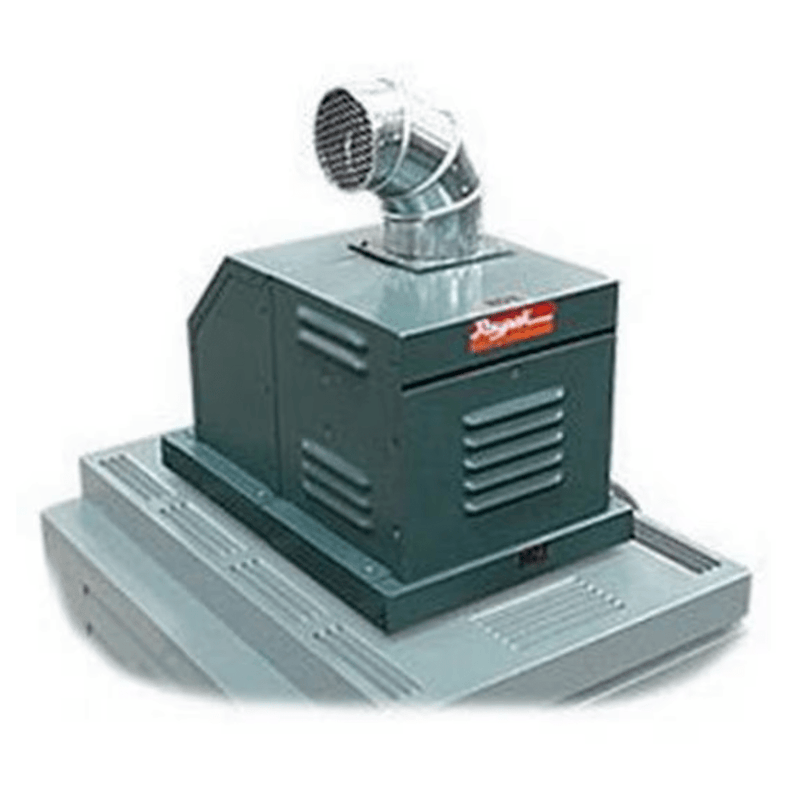

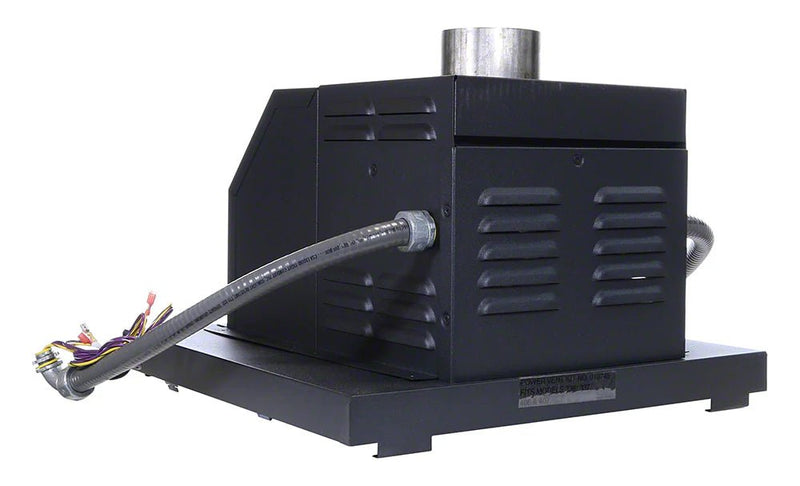

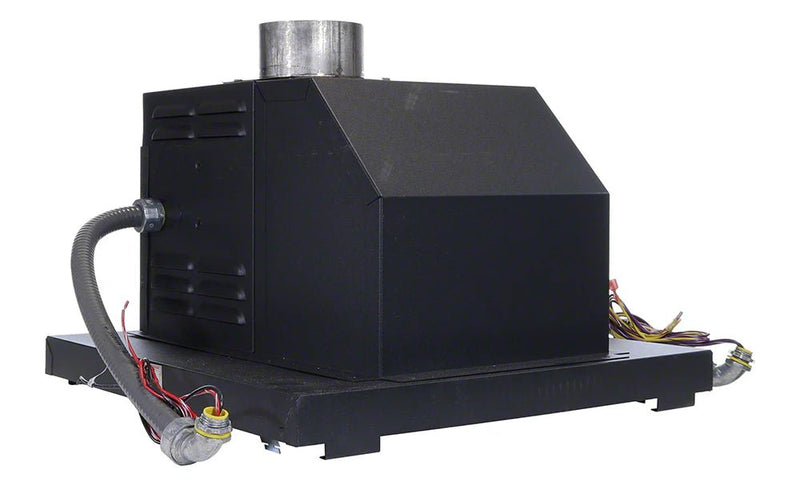

Raypak 010745 D-2 Indoor Power Vent 120V for Models 206A-408
The D-2 Power Vent assembly is a Category III mechanical draft venting system that operates with a positive vent static pressure and with a vent gas temperature that avoids excessive condensate production in the vent. All sizes are capable of relieving flue gases up to a maximum of 100 equivalent feet of vent length. All models have a 4” diameter exhaust connection and can be sidewall terminated using field-supplied cat III-certified vent material. Use the factory-supplied screened elbow as a downturned sidewall vent termination.

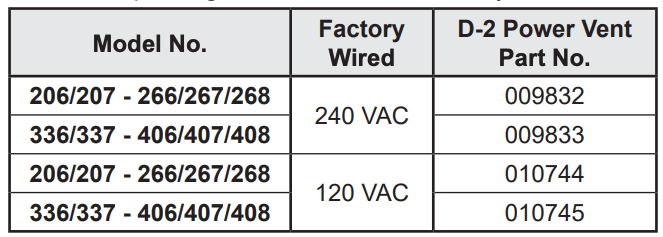

- For use with all Raypak Digital models, sizes 206A – 408
- The D-2 replaces the standard draft hood
- Compatible for indoor or outdoor installation
- For use with all Raypak Digital models, sizes 206A – 408. The D-2 replaces the standard draft hood
- Certified
- The D-2 Power Vent assembly is tested and certified to the latest edition of the American National Standard ANSI Z21.56 for pool heaters
- Install Guide
Specifications:
- Brand: Brand
- Amperage: 1.95
- Application: Pool, Spa
- Color: Gray
- Weight: 36 pounds
- Finish: Powder Coated
- Frequency Rating (Hz): 60
- Material: Galvanized Steel
- Voltage: 240V
- CFM Rating: 130
- Flue Diameter: 4 inch
- Vent Color: Gray
- UPC Code: 840891023623
- Part Number: 010745
