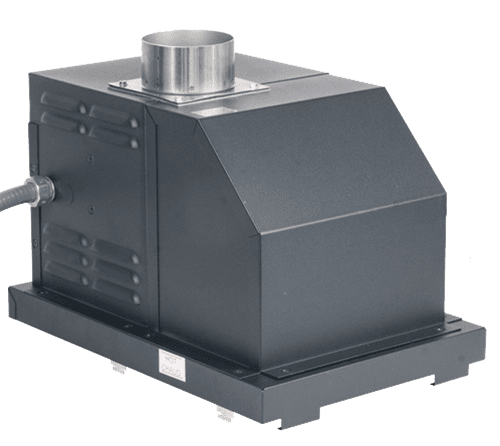

Raypak 010744 D-2 Power Vent Indoor, 120V IID Only for Models 206A-268
Raypak 010744 PolyTuf Textured Powder Coated/Cool Dark Gray Galvanized Steel Cabinet D-2 Power Vent Kit For Model 206A-268 Pool Heater 120 VAC
The D-2 Power Vent assembly is a Category III mechanical draft venting system that operates with a positive vent static pressure and with a vent gas temperature that avoids excessive condensate production in the vent. All sizes are capable of relieving flue gases up to a maximum of 100 equivalent feet of vent length. All models have a 4” diameter exhaust connection and can be sidewall-terminated using field-supplied cat III-certified vent material. Use the factory-supplied screened elbow as a downturned sidewall vent termination.
Specifications:
- Brand: Raypak
- Shipping Dimensions: 22 x 17 x 15 inch
- Weight: 35 pounds
- Material: Galvanized Steel
- UPC Code: 840891025269
Support Documents:
Shipping, Installation & Warranty
Free Shipping: Most orders ship within 1 business day, unless otherwise noted. Most heaters ship via free LTL freight; an adult must be available to receive delivery.
Warranty: See Raypak's warranty page or the product’s user manual for details.
Disclaimer: Professional installation (not included) is required to validate the warranty.
Note: Images are for reference only.
