Hayward 18" 1.75 Sq Ft ProSeries Top Mount Sand Filter 1.5" Valve W3S180T
Why shop with Vita Filters
- Authorized Hayward Dealer
- Free Shipping
- 30-Day Returns
- 100% Satisfaction Guaranteed!
- On-Staff Experts • Contact us
Description:

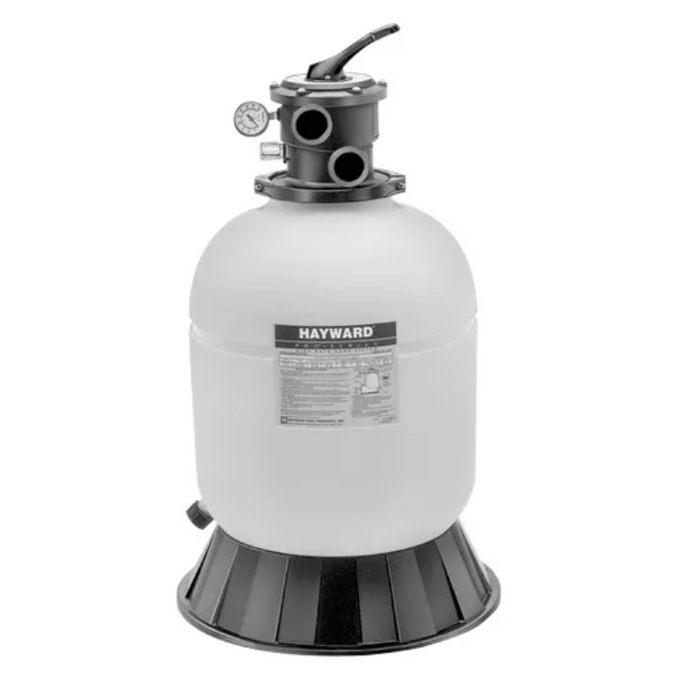

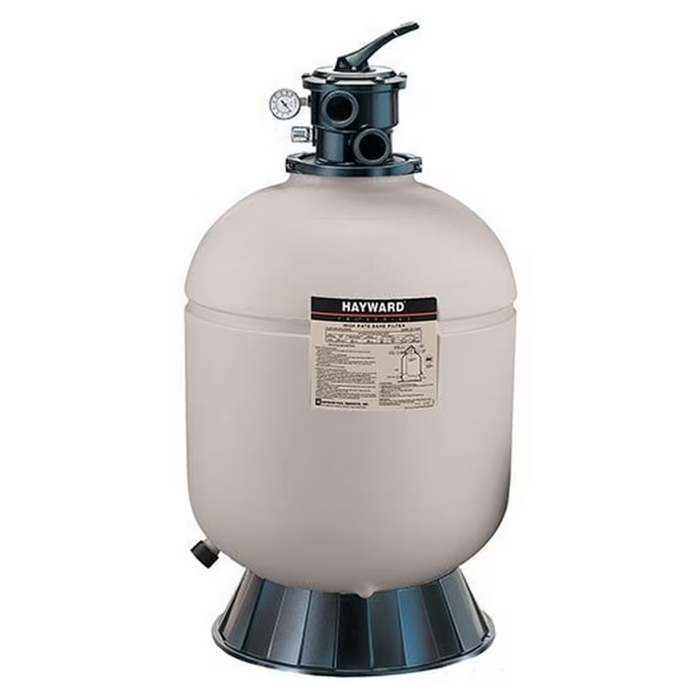

Hayward W3S180T Pro Series 18" Sand Filter with 1-1/2" Top Mount Multiport Valve for In Ground and Above Ground Pools.
- 1-1/2" VariFlo Valve included
- Compatible with valve SP0714T
- In-ground pools of all types and sizes
- In-ground spas (residential or commercial)
- Water features (fish ponds, fountains, water gardens)
- Requires 150 lbs of sand
- Flange clamp design allows 360 degree rotation of valve to simplify plumbing
- Integral top diffuser ensures even distribution of water over the top of the sand media bed. Full-size internal piping provides smooth, free-flowing performance
- Unitized, corrosion-proof filter tank molded of rugged, colorfast polymeric material for dependable, all-weather performance
- Large pressure sand/water drain for rapid winterizing or servicing
- Precision engineered umbrella-fold self cleaning laterals for balanced flow and backwashing, plus easy serviceability
- 7 position Hayward Vari-Flo control valve with easy-to-use lever-action handle lets you dial any of the valve/filter functions. Integral sight glass lets you see when backwash cycle is completed
- ProSeries High Rate Sand Filter Owner's Manual

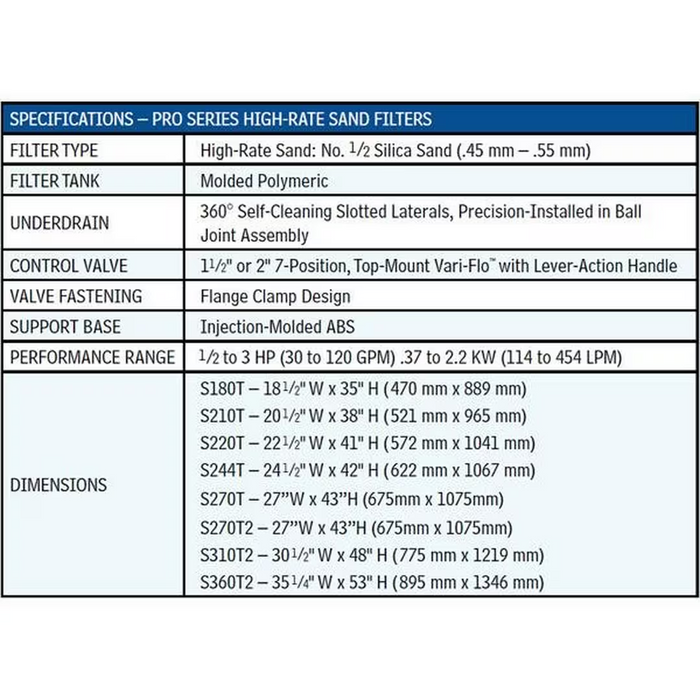

Specifications:
- Brand: Hayward
- Application: Above Ground, Pool
- Shipping Dimensions: 20.3 x 20.3 x 36.4 inch
- Commercial, Residential, or Professional: Residential
- Weight: 29 pounds
- Filter Control Valve: 7-Position, Top-Mount Vari-Flo(TM) Valve with Lever-Action Handle
- Filter Tank Molding Type: Molded Polymeric
- Filtration Area: 1.75 square feet
- Green or Energy Efficient Product: True
- Maximum Flow Rate: 35 gal/min
- Maximum Working Pressure: 50 pounds per square inch
- Mounting Base: Injection-Molded Thermoplastic
- Mounting Type: Top
- Side Clearance: 18 inch
- Vertical Clearance: 18 inch
- UPC Code: 0610377386920

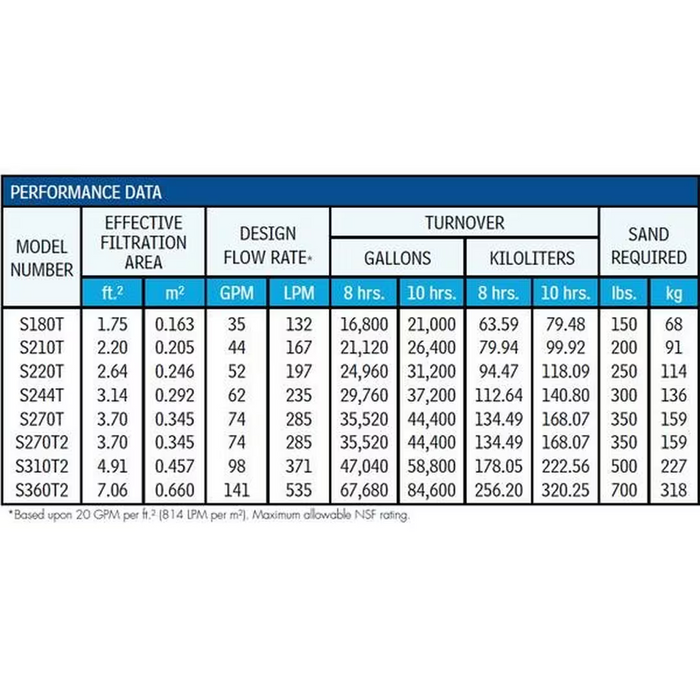

*Sizing Note: The gallon capacities listings are estimates only. They will vary depending on the pump size and the turnover rate. The actual number of gallons your filter can manage depends on your pump’s flow rate and the specific needs of your pool (debris load, drains, usage, etc.). You can adjust these capacities if you plan for a different turnover time (e.g., 12-hour turnover).
Need help sizing your pool? Contact us anytime - we’re here to help!
Free Shipping: Ships within 1-2 business days.
Disclaimer: Professional installation (not included) is required, and proof of installation by a certified technician is needed to validate the factory warranty.
Note: Hayward products are excluded from promotions and coupon codes.
