Ruud AVIA 264A Natural Gas Pool Heater Wi-Fi, P-D264A-EN-C 018092
Pricing & Delivery Note
Ruud is excluded from coupons. The price shown includes free freight delivery to the lower 48 U.S. states. Orders ship within 1 business day.

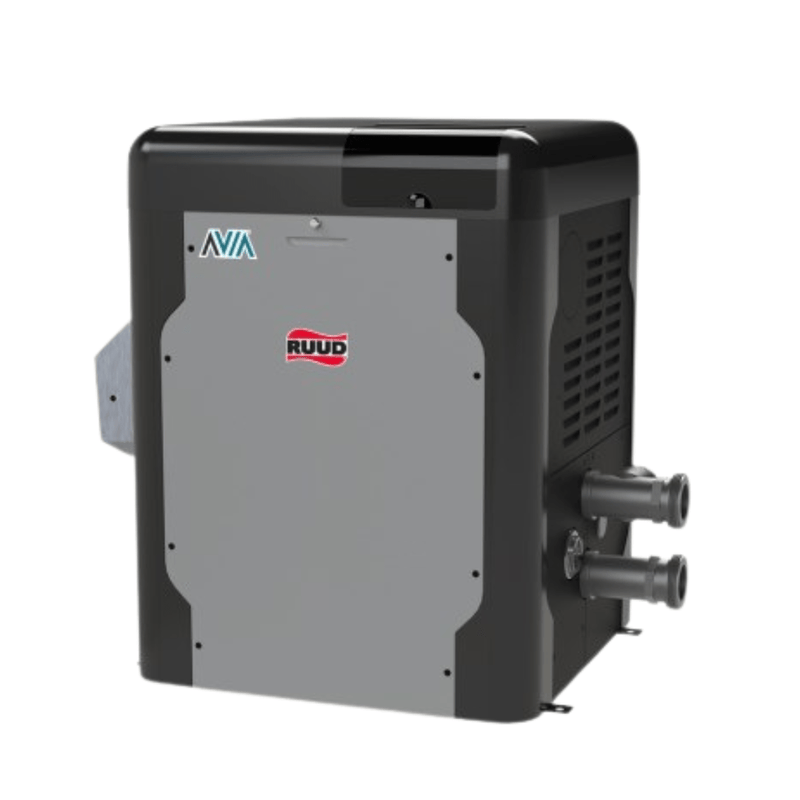

AVIA 264K BTU Natural Gas Pool Heater – Low NOx, Wi-Fi
P-D264A-EN-C, 018092 Ruud

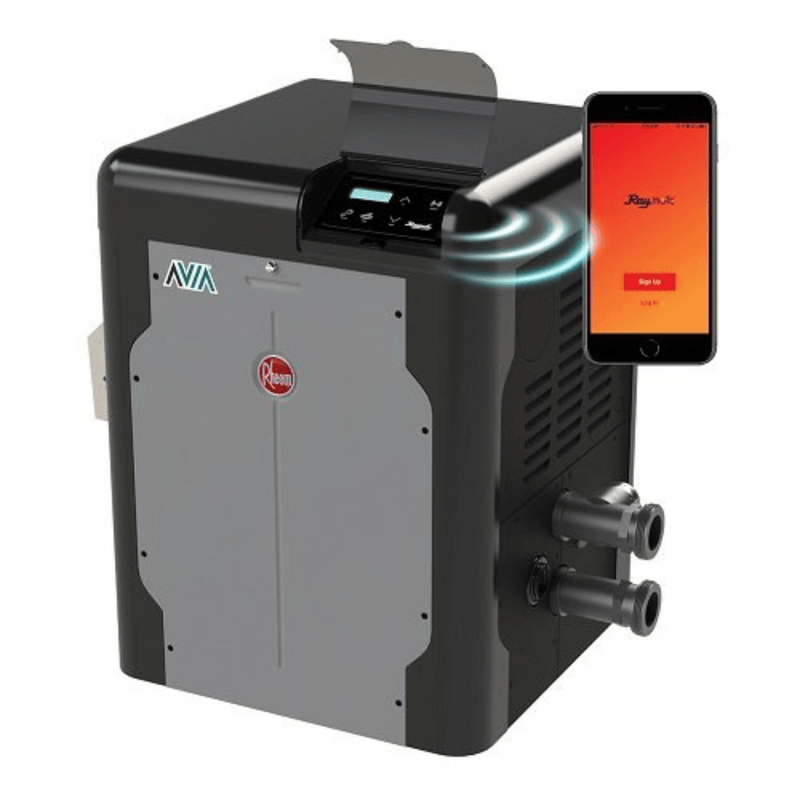

AVIA™ is built with an innovative Wi-Fi–enabled control system that lets you manage your pool heater and entire ecosystem through an easy-to-use touch interface. There’s no need for a separate control panel—AVIA™ does it all.
Support Documents:
Specifications:
- Brand: RUUD
- Application: Pool, Spa
- Shipping Dimensions: 53 x 39 x 38 inch
- BTU Input: 264,000 British thermal unit
- Cabinet Depth: 23.24 inch
- Cabinet Height: 30.38 inch
- Cabinet Width: 23.22 inch
- Commercial, Residential, or Professional: Residential
- Control Type: Digital
- Weight: 203 pounds
- Elevation Max: 4500 inch
- Flow Rate Max: 100 gal/min
- Flow Rate Min: 40 gal/min
- Flue Diameter: 4 inch
- Frequency Rating (Hz): 60
- Fuel Type: Natural Gas
- Gas Connection: 0.75 inch
- Gas Connection FIT: NPT
- Header Material: Polymer
- Heat Exchanger Material: Copper
- Ignition Type Electronic
- Includes: (2) 2" CPVC Tailpiece, (2) 2" CPVC Ring Nut, (2) O-rings, (1) 120V Blower Adapter, (1) 3-Wire Remote Harness, (1) Auxiliary Harness, (1) Raymote Quick Start Guide
- Indoor Vent Pipe Diameter: 4 inches
- Standards Approvals: CSA Certified, ANSI Certified
- Thermal Efficiency: 0.84
- Tubing Material: Copper
- Color: Gray/Black
- Voltage: 120V, 240V
- Water Connection 1: 2 inch
- Water Connection 2: 2 inch
- Maximum Circuit Breaker: 1.6 amperage
- Min Circuit: 1.2 amperage
- UPC Code: 840891048107
- 3-Year parts and labor warranty coverage
Shipping, Installation & Warranty
Free Freight Shipping: Most orders ship within 1 business day, unless otherwise noted. Heaters are delivered via free LTL freight. An adult must be available to receive and sign for the delivery.
Warranty: Ruud’s sister company, Raypak, manages all pool and spa warranty registrations. Warranty Service »
Disclaimer: Professional installation (not included) is required for warranty validation.
Note: Images are for representation only.
Q: What’s the difference between Ruud and Raypak?
A: There’s no difference in quality or performance—Ruud and Raypak heaters are both made by Rheem with the same parts and technology. The only difference is the nameplate and sometimes the color. Choose either with confidence—you’ll get the same trusted product, full warranty, and support.
